Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia upper support from the hood latch support. Refer to FASCIA SUPPORT REPLACEMENT -- FRONT BUMPER UPPER .
  2. Remove the hood latch from the hood latch support. Refer to Hood Latch Replacement .
  3. Remove the bolts from the hood latch support at the upper tie bar.
  4. Remove the nut from the hood latch support at the lower tie bar.

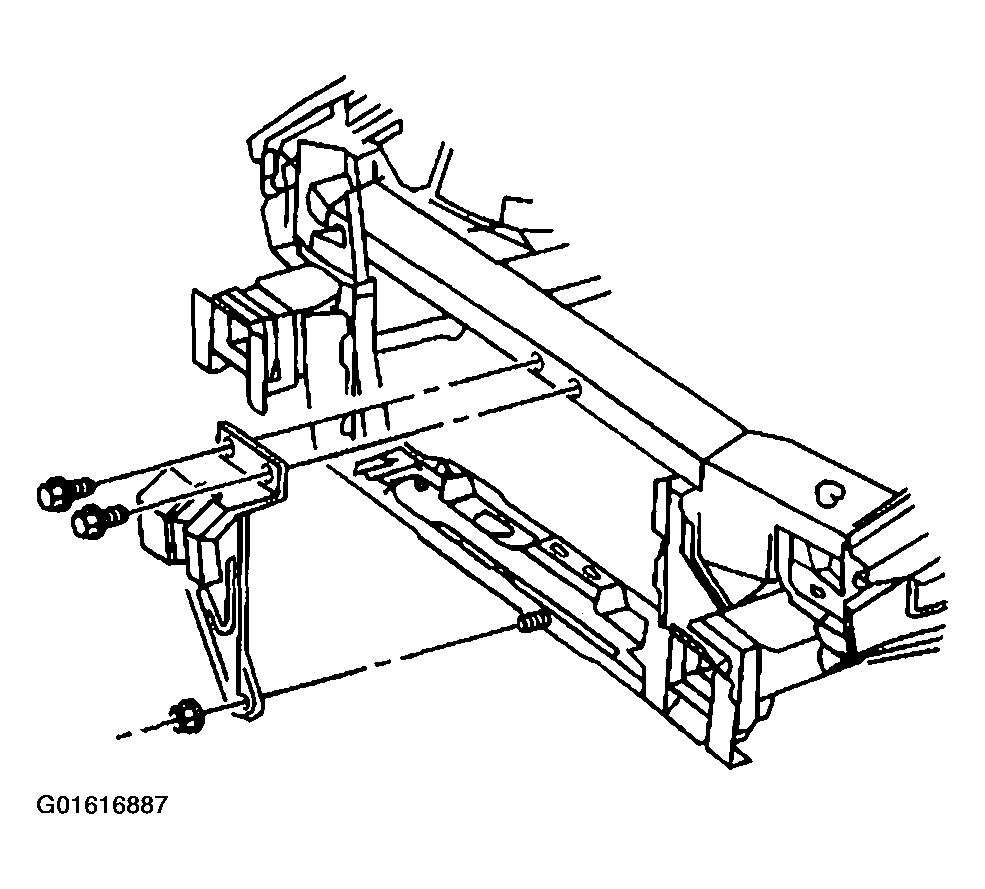

    Fig 1: Hood Latch Support
    G01616887Courtesy of GENERAL MOTORS CORP.
