Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the hood latch release cable to the hood latch.

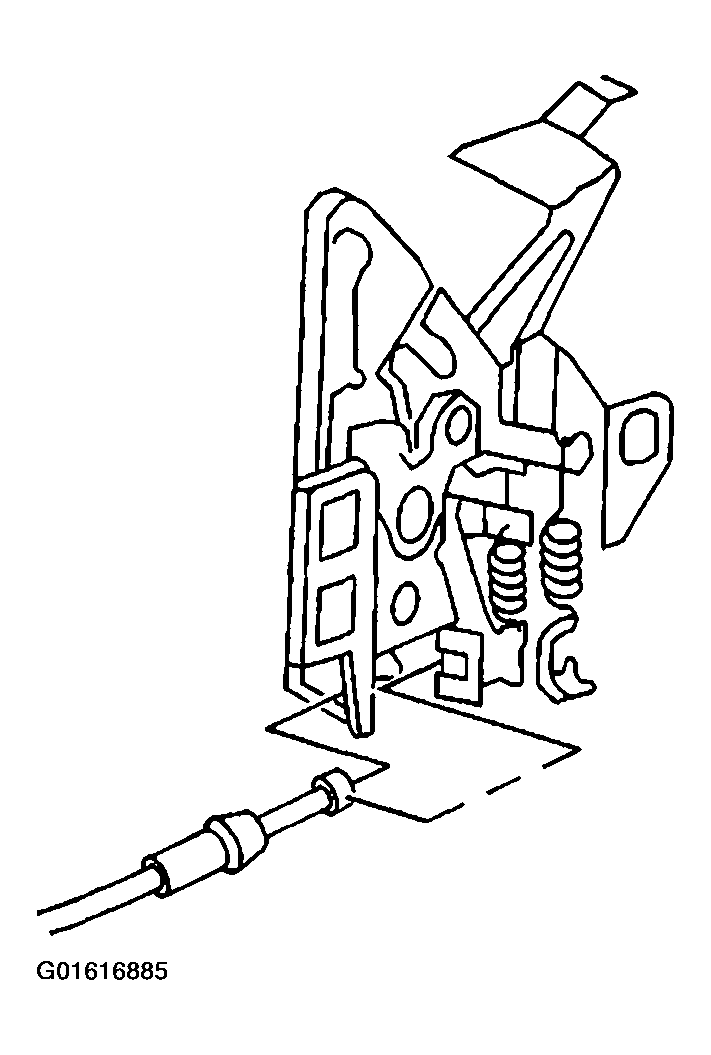

    Fig 1: Connecting Hood Latch Release Cable
    G01616885Courtesy of GENERAL MOTORS CORP.
  2. Position the hood latch to the marks on the hood latch support bracket.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the hood latch to center support bracket bolts.

    Tighten

    Tighten the hood latch to center support bracket bolts to 25 N.m (18 lb ft).

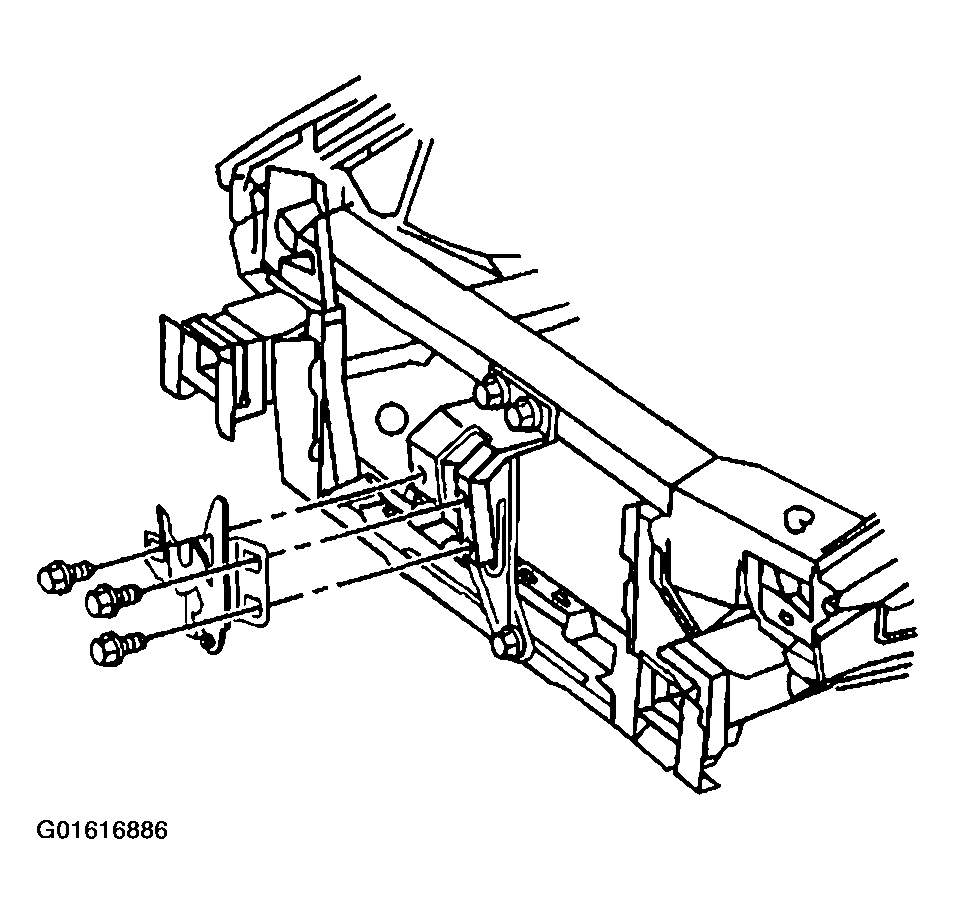

    Fig 2: Hood Latch
    G01616886Courtesy of GENERAL MOTORS CORP.
  4. Adjust the hood as required. Refer to Hood Adjustment .
  5. Close the hood.
