Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood insulator to the hood.
  2. Align the hood insulator retainers holes to the holes in the hood.
  3. Install the hood insulator push-in retainers to the hood insulator.
  4. Close the hood.

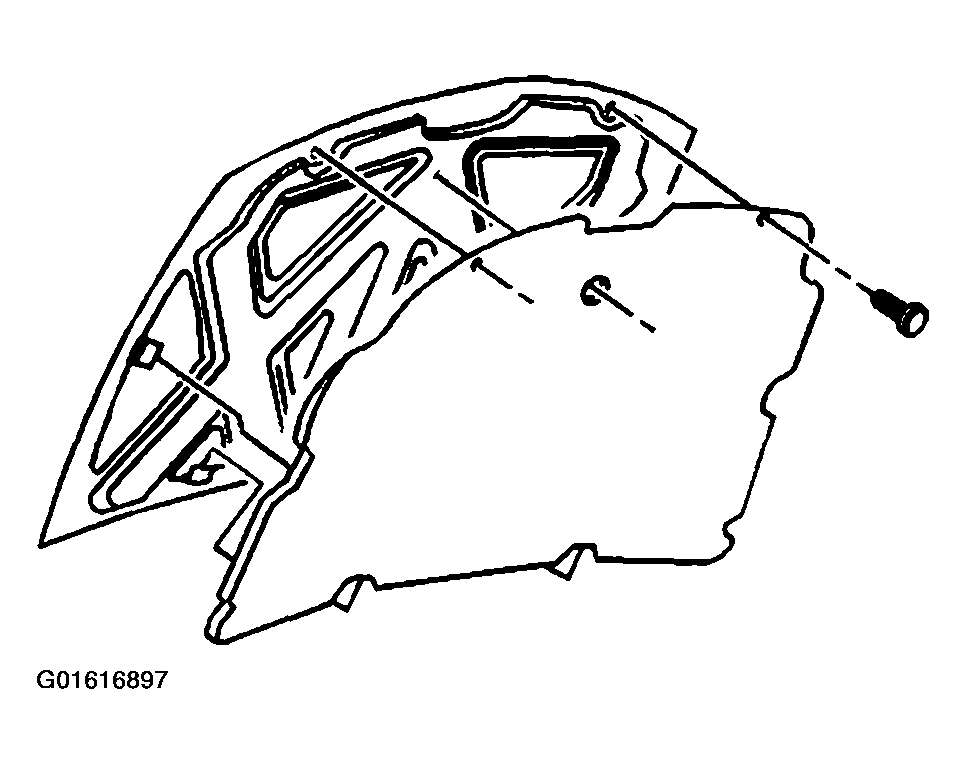

    Fig 1: Hood Insulator
    G01616897Courtesy of GENERAL MOTORS CORP.
