Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the hood air extractor nuts from the water management tray and discard the nuts.

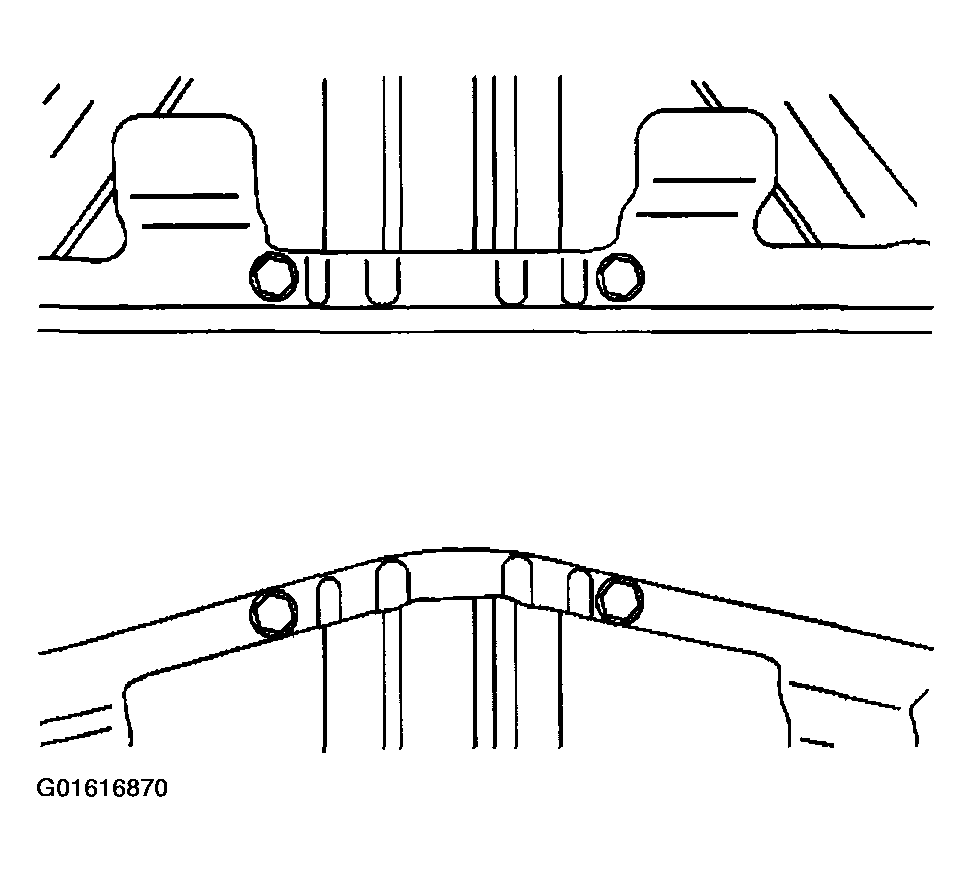

    Fig 1: Hood Air Extractor Nuts
    G01616870Courtesy of GENERAL MOTORS CORP.
  3. Remove the hood air extractor from the hood using a small plastic flat-bladed tool.
    Fig 2: Hood Air Extractor
    G01616871Courtesy of GENERAL MOTORS CORP.
  4. Remove all adhesive from the body panel using 3MTM Scotch Brite molding adhesive remover disk 3Mtm P/N 07501 or equivalent.

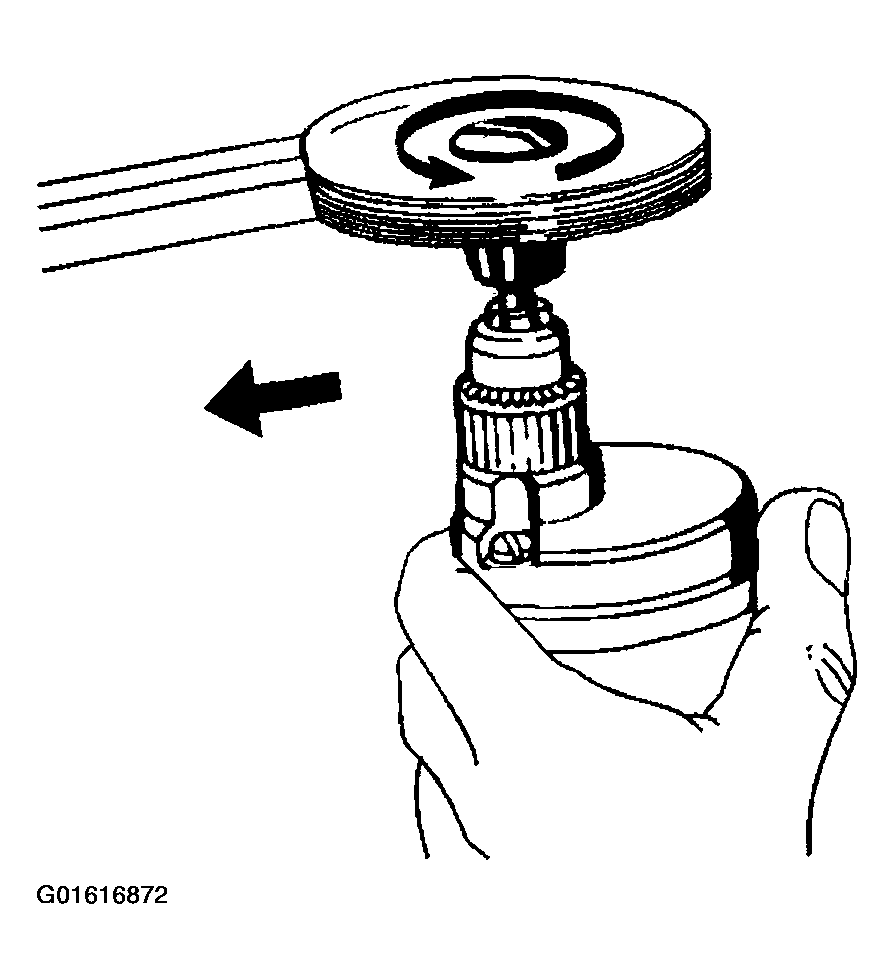

    Fig 3: Removing Adhesive
    G01616872Courtesy of GENERAL MOTORS CORP.
