Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws from the from fender liner at the front bumper fascia.

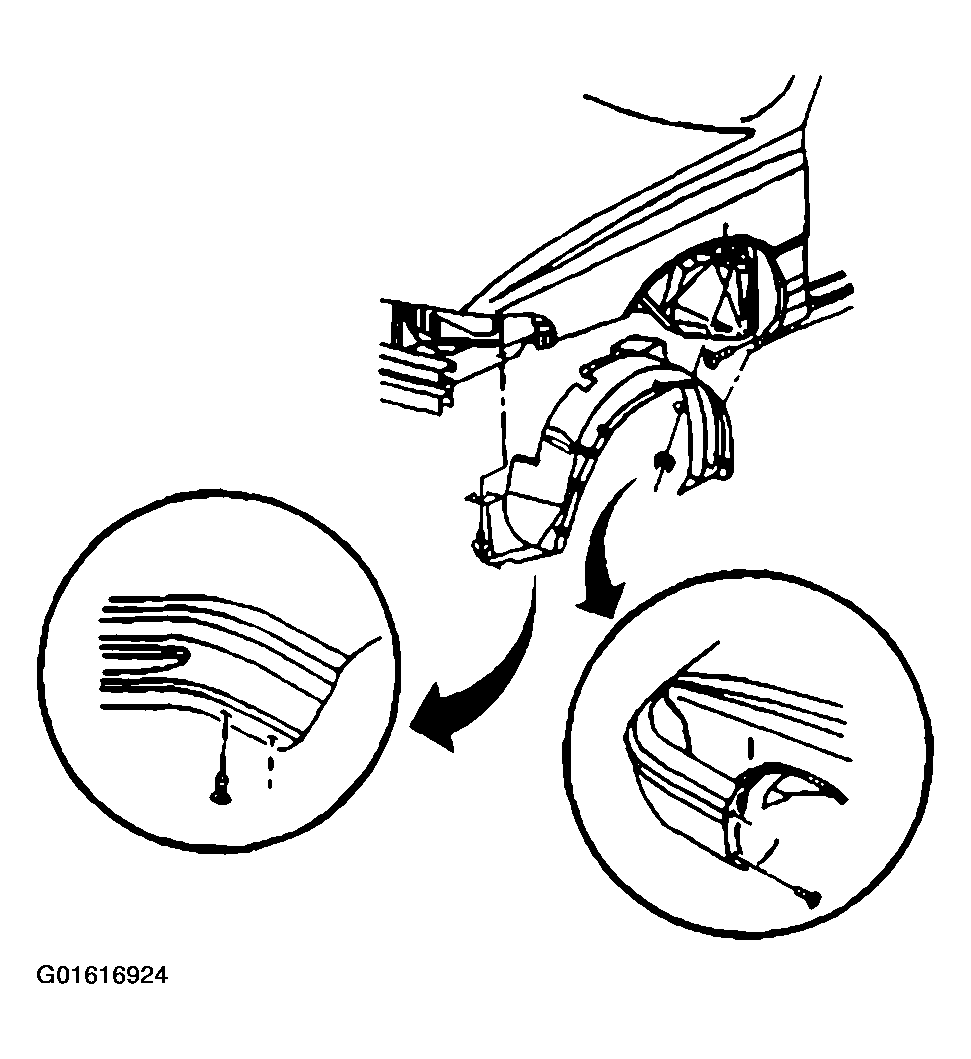

    Fig 1: Removing Screws From Fender Liner
    G01616924Courtesy of GENERAL MOTORS CORP.
  2. Remove the nut at the rear of the front fender liner.
  3. Remove the screws from the front tab of the front fender liner at the lower engine compartment side rail.
  4. Remove the screws from the front fender liner at the rear of the fender.
  5. Remove the front fender liner from the fender.

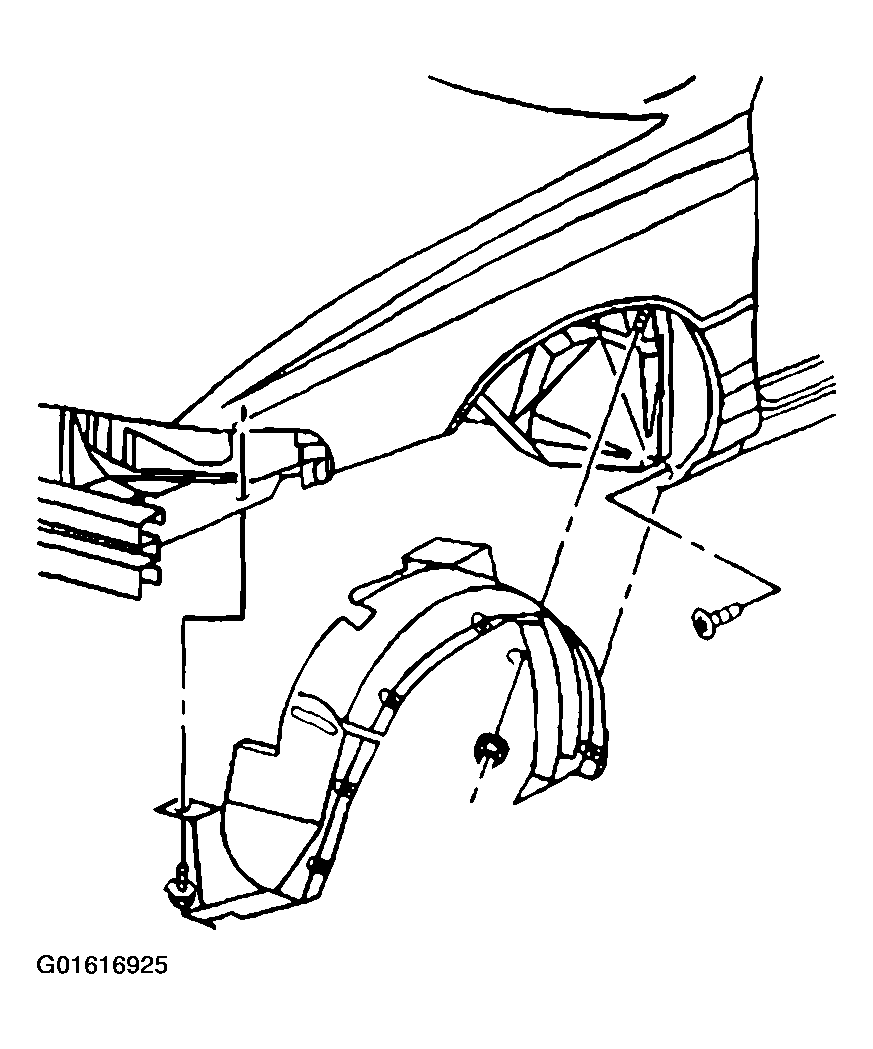

    Fig 2: Front Fender Liner
    G01616925Courtesy of GENERAL MOTORS CORP.
