Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front fender insulator to the inner fender.
  2. Press the front fender insulator tabs to the mounting studs.
  3. Align the front fender insulator to the flange of the fender. Align the insulator in order to avoid interfering with the front door edge.
  4. Install the front fender liner. Refer to Front Fender Liner Replacement .

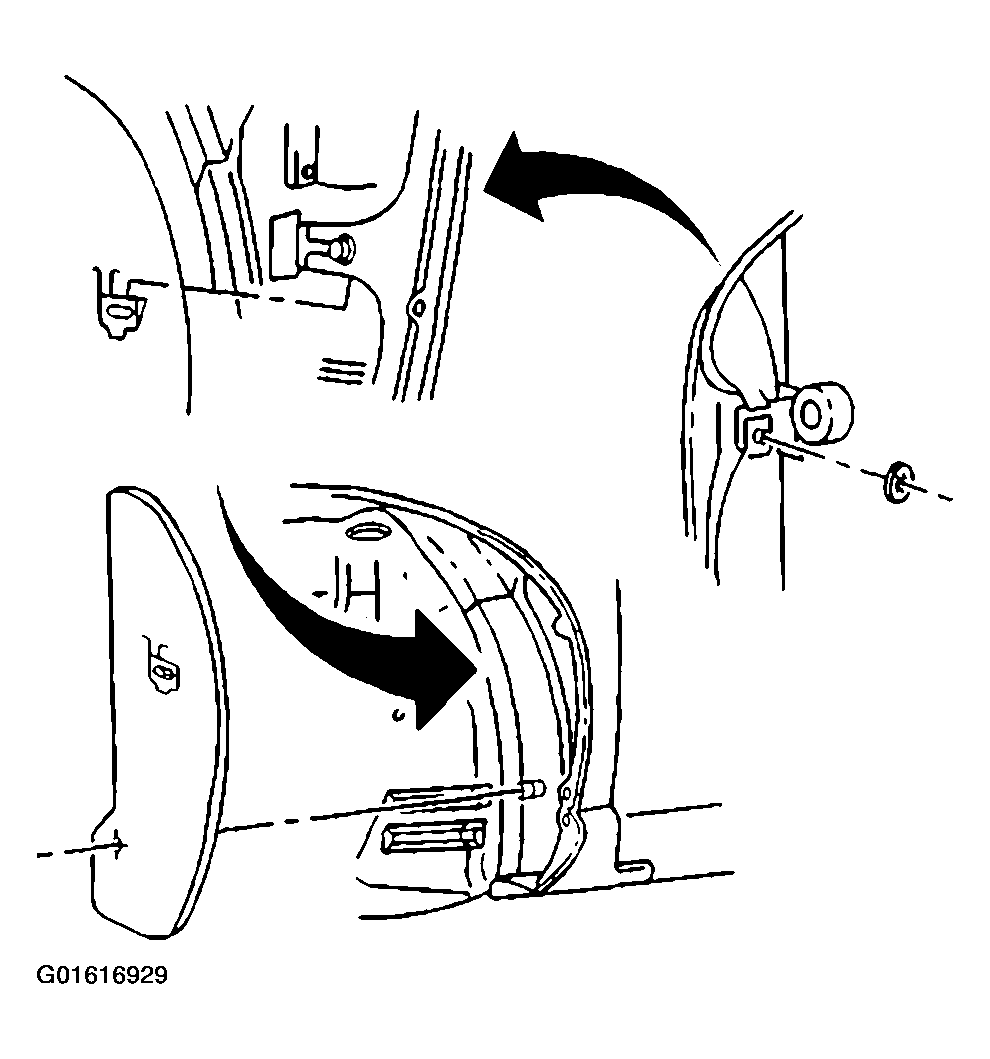

    Fig 1: Front Fender Sound Insulator
    G01616929Courtesy of GENERAL MOTORS CORP.
