Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When removing body panels, apply tape to corners of panel and adjacent surfaces to help prevent paint damage.
  1. Apply tape to panel and adjacent surfaces.
  2. Remove the hood. Refer to Hood Replacement .
  3. Remove the hood hinge. Refer to Hood Hinge Replacement .
  4. Remove the front fender liner. Refer to Front Fender Liner Replacement .
  5. Remove the washer solvent container from the right fender. Refer to WASHER SOLVENT CONTAINER REPLACEMENT .
    Fig 1: Front Fender
    G01616902Courtesy of GENERAL MOTORS CORP.
  6. Remove the rocker finish panel. Refer to MOLDING REPLACEMENT -- ROCKER PANEL .
  7. Remove the bolts from the fender at the door hinge pillar.
  8. Remove the bolts from the fender at the rocker panel.

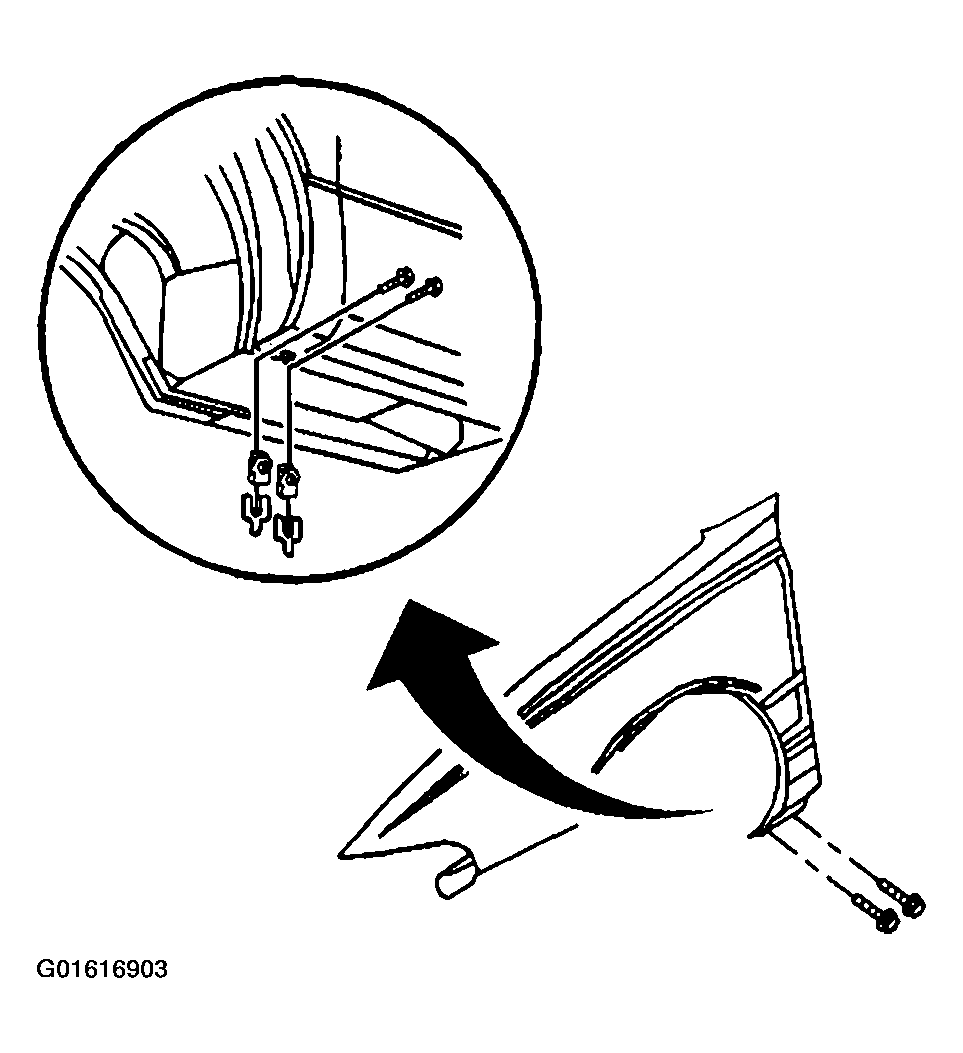

    Fig 2: Removing Fender Bolts
    G01616903Courtesy of GENERAL MOTORS CORP.
  9. Remove the bolts from the fender at the front compartment side rail.

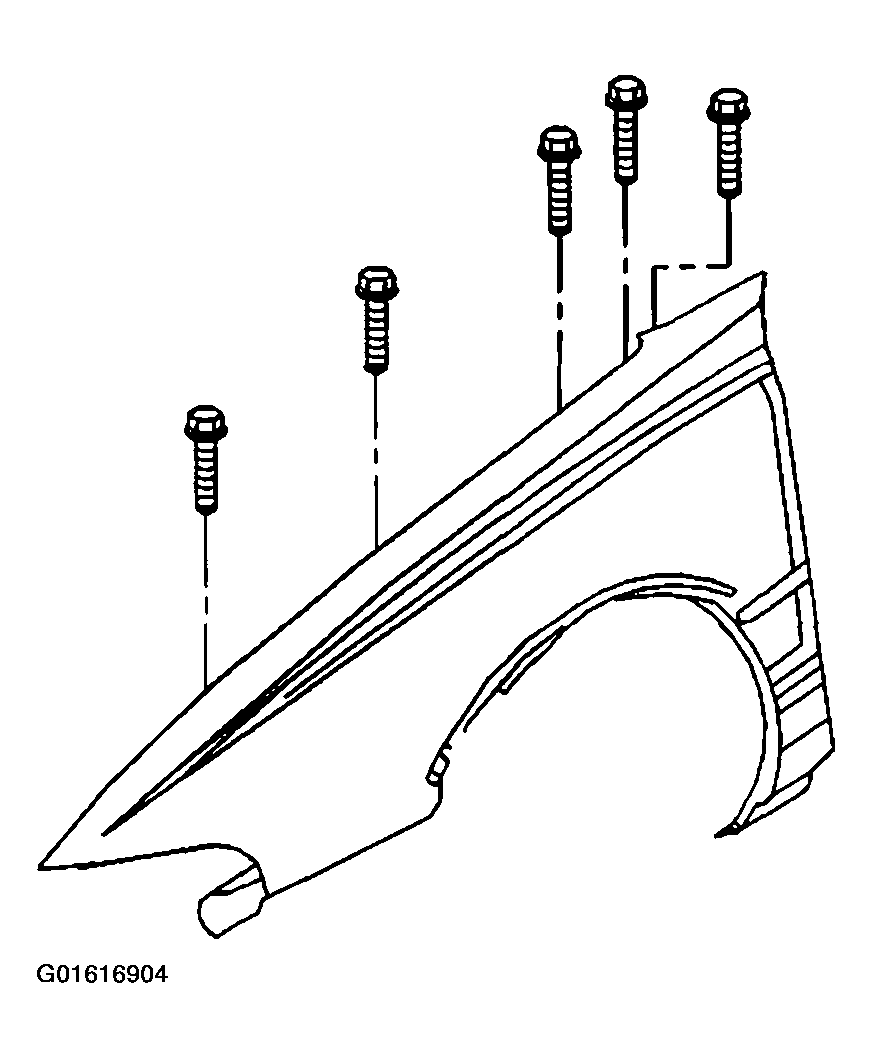

    Fig 3: Removing Bolts From Fender At Front Compartment Side Rail
    G01616904Courtesy of GENERAL MOTORS CORP.
  10. Remove the bolts from the fender at the lower engine compartment side rail.
  11. Remove the fender from the vehicle.

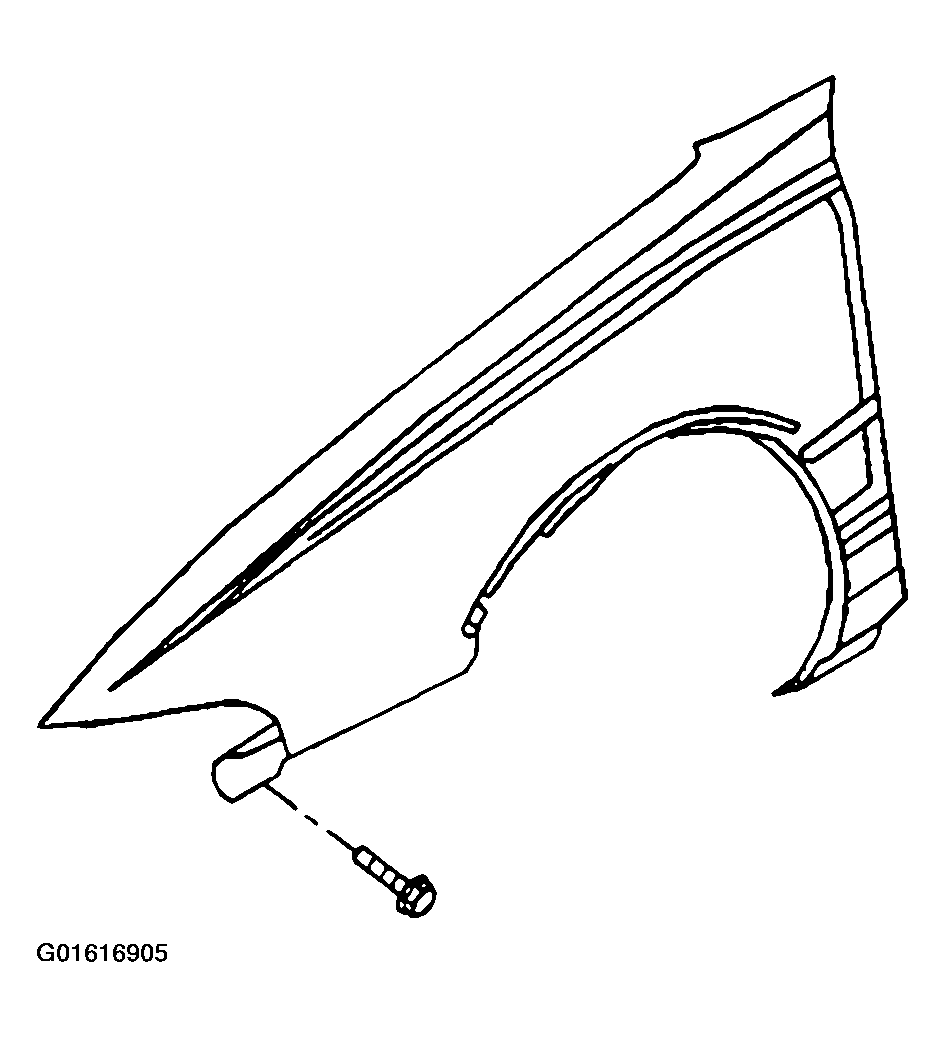

    Fig 4: Removing Bolts From Fender At Lower Engine Compartment Side Rail
    G01616905Courtesy of GENERAL MOTORS CORP.
