Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery. Refer to BATTERY REPLACEMENT .
  2. Remove the battery tray screws.
  3. Remove the battery tray.

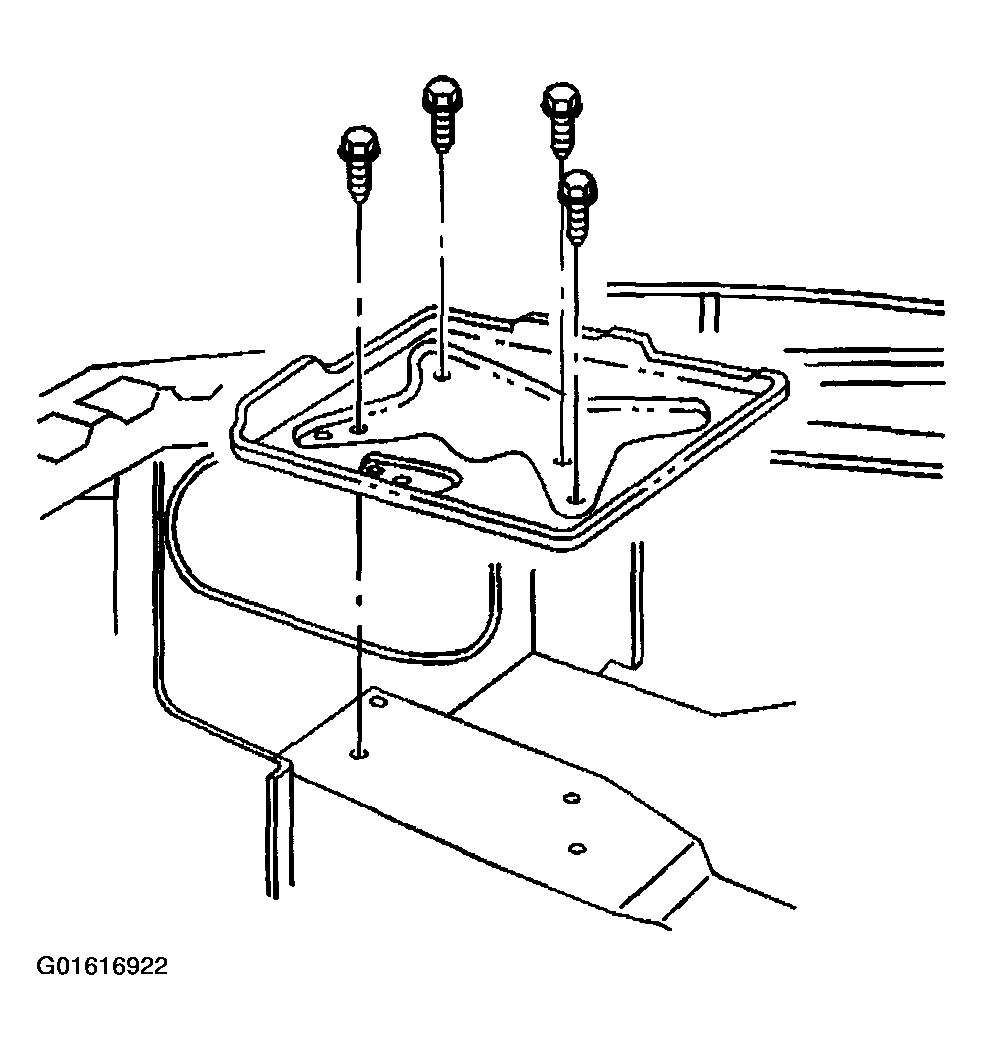

    Fig 1: Battery Tray
    G01616922Courtesy of GENERAL MOTORS CORP.
