Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The rear wheel speed sensors and rings are integral with the hub and bearing assemblies.

If a speed sensor or a ring needs replacement, replace the entire hub and bearing assembly. Refer to HUB & BEARING ASSEMBLY .

Raise and support the vehicle on a suitable hoist.
Refer to LIFTING AND JACKING THE VEHICLE .
Remove the rear tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
Disconnect the electrical connector from the rear wheel speed sensor.

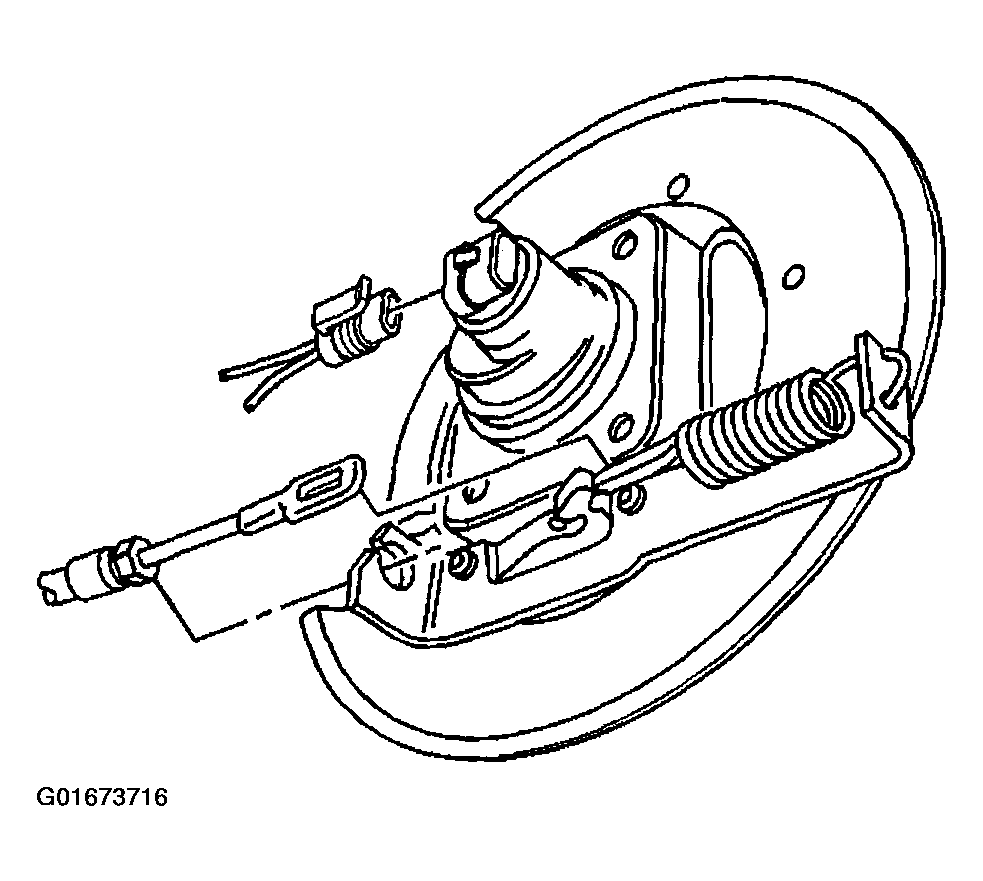

Fig 1: Disconnecting Rear Wheel Speed Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the hub and bearing assembly (1). Refer to HUB & BEARING ASSEMBLY .

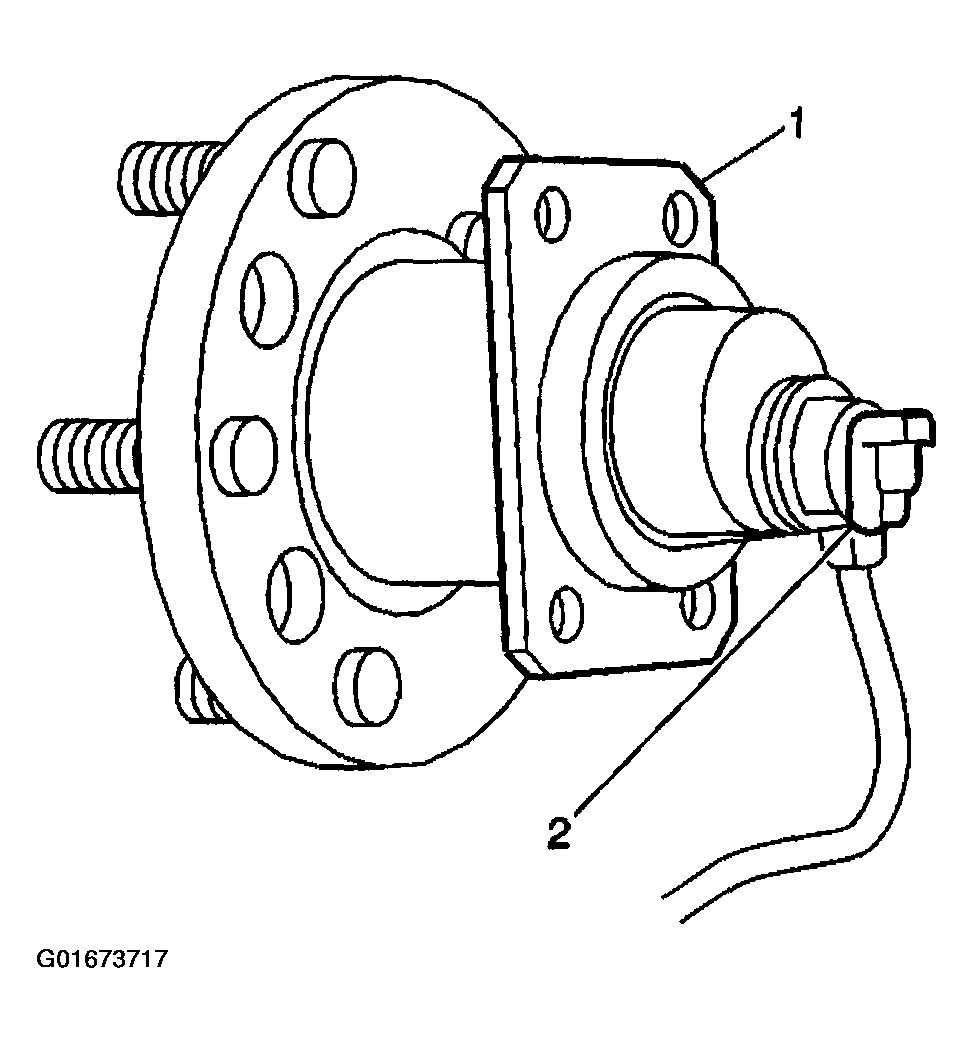

Fig 2: Hub & Bearing Assembly
Courtesy of GENERAL MOTORS CORP.
