Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front bumper energy absorber to the front bumper impact bar.
  2. Install the push-in retainers to the front bumper energy absorber.
  3. Install the front bumper fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER  .

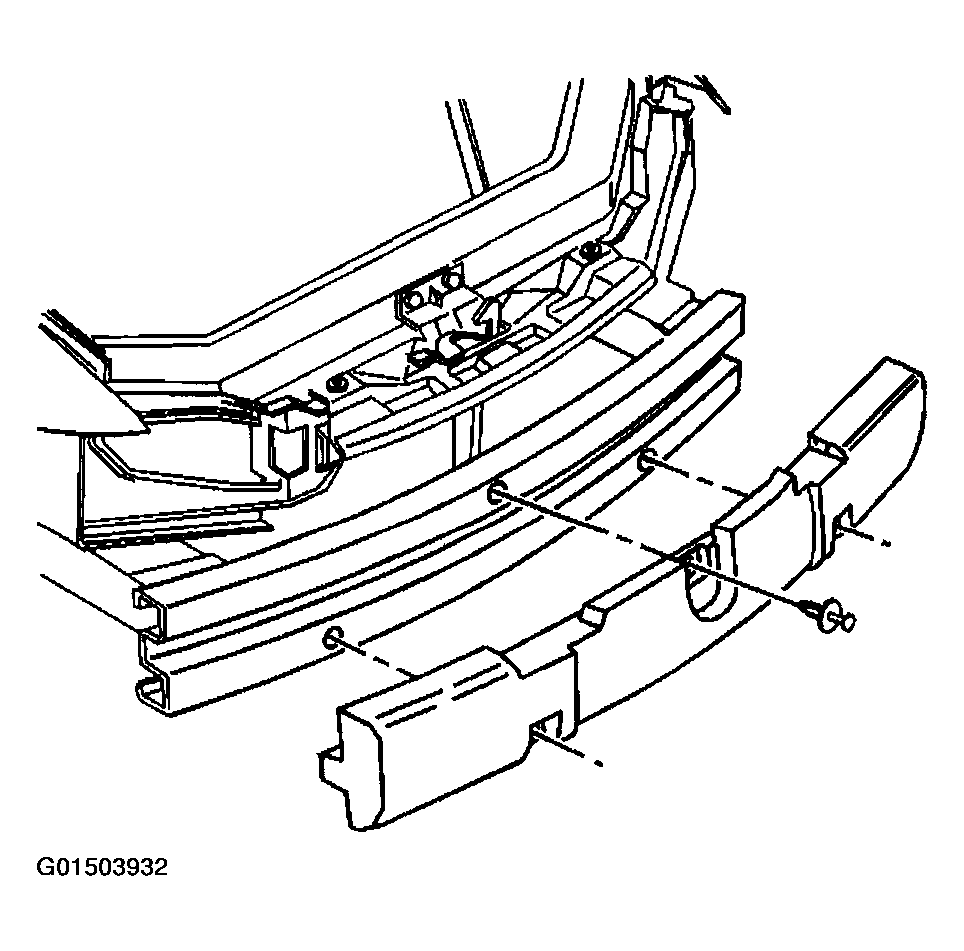

    Fig 1: Installing Front Bumper Energy Absorber To Front Bumper Impact Bar
    G01503932Courtesy of GENERAL MOTORS CORP.
