Sir Coil Assembly: Installation

WARNING: This page is about a different car, the 2000 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.

Install SIR coil assembly onto steering shaft. Center SIR coil assembly if necessary. See CENTERING COIL ASSEMBLY under ADJUSTMENTS. Install retaining ring. Route steering column wire harness along steering shaft, install wire harness straps and connect electrical connector. Install steering wheel.
To complete installation, reverse removal procedure. Tighten screws to proper specification. See TORQUE SPECIFICATIONS . Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Check system for proper operation. See SYSTEM OPERATION CHECK .

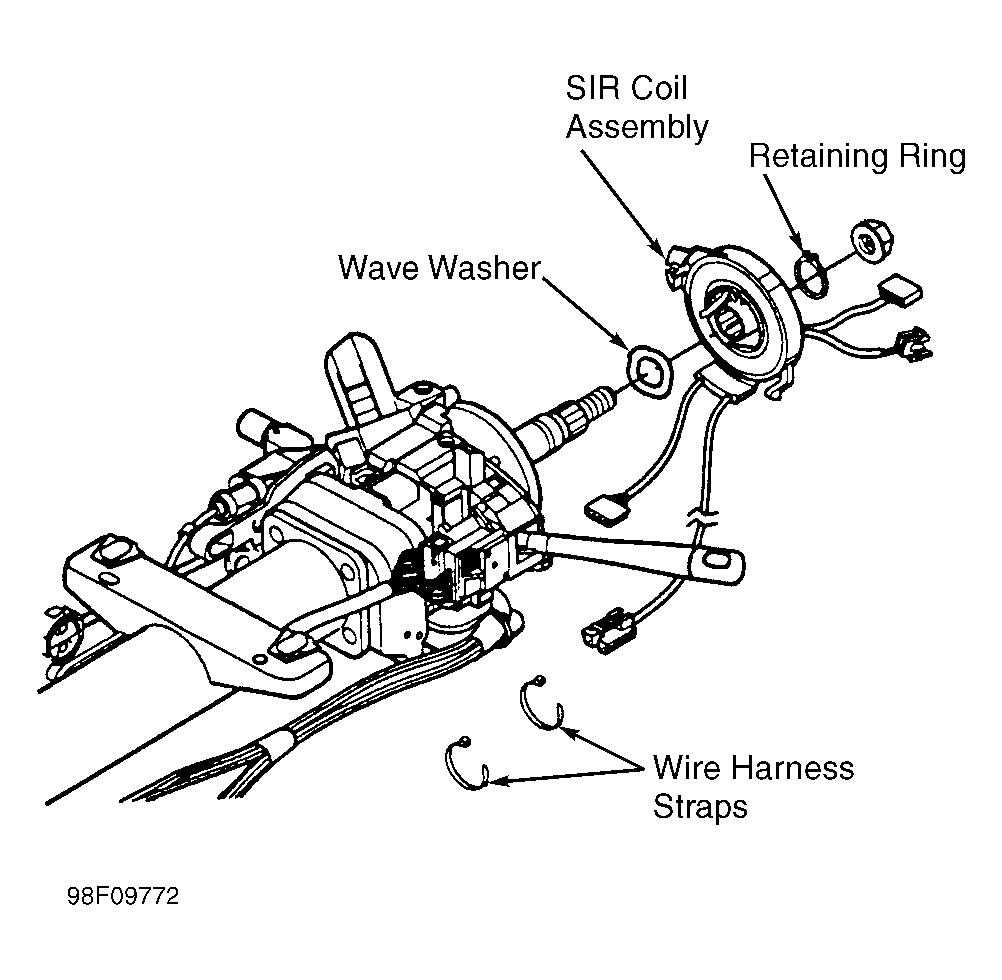

Fig 1: Removing SIR Coil Assembly

Courtesy of GENERAL MOTORS CORP.
