Sensing & Diagnostic Module (SDM): Installation

WARNING: This page is about a different car, the 2000 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mount SDM on vehicle, ensuring arrow is pointing toward front of vehicle. Install SDM fasteners and tighten to 80 INCH lbs. (9 N.m). Reconnect SDM harness connector and secure CPA clip.
  2. Position insulation and carpet over SDM. Reinstall front seat. Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Check system for proper operation. See SYSTEM OPERATION CHECK .

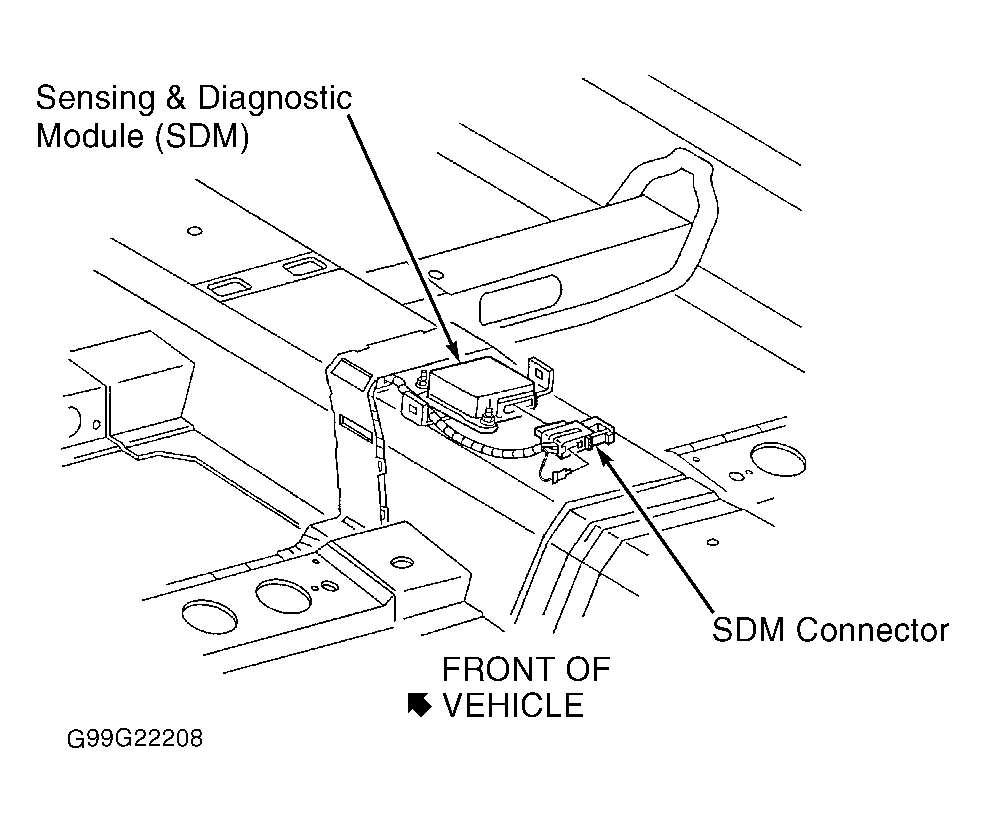

Fig 1: Removing Sensing & Diagnostic Module (SDM)
G99G22208Courtesy of GENERAL MOTORS CORP.
