Air Bag Modules: Installation

WARNING: This page is about a different car, the 2000 Buick Park Avenue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install air bag module. Install fasteners. Tighten to 80 INCH lbs. (9 N.m). Install instrument panel upper trim pad. See INSTRUMENT PANEL UPPER TRIM PAD .
  2. Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Check system for proper operation. See SYSTEM OPERATION CHECK .

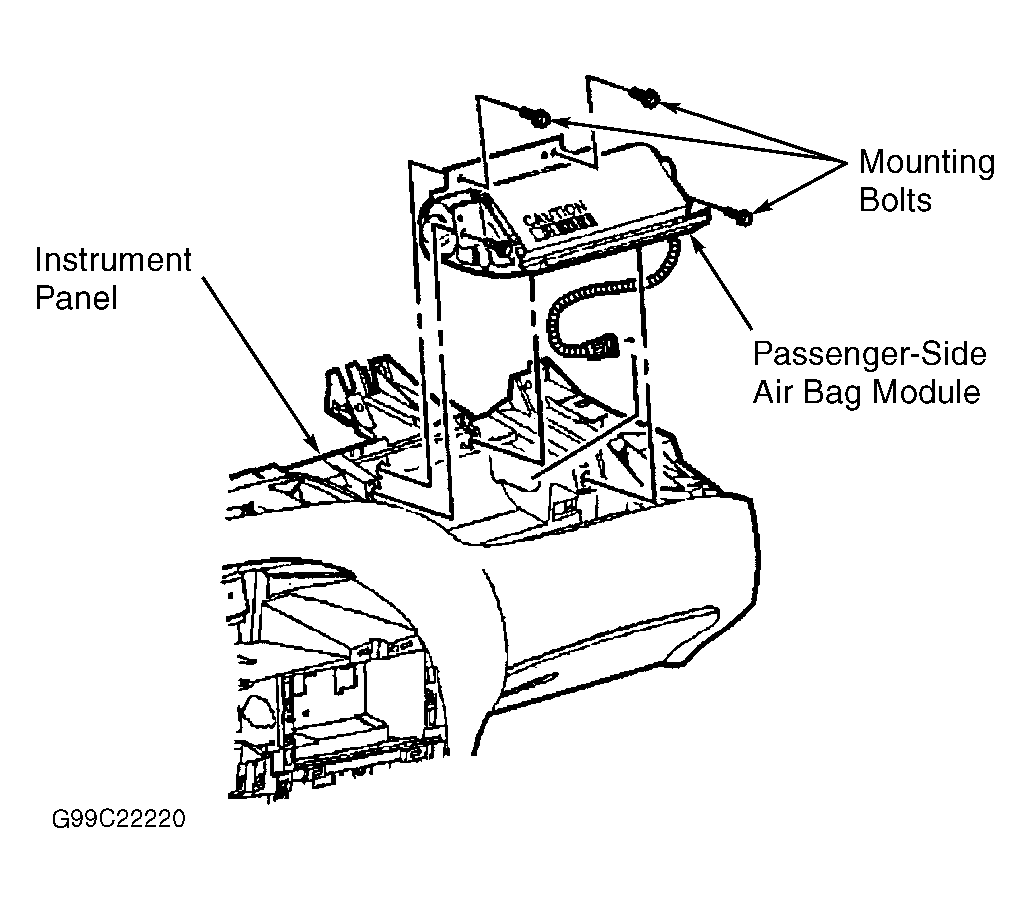

Fig 1: Removing Passenger-side Air Bag Module
G99C22220Courtesy of GENERAL MOTORS CORP.
