Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  .
  3. Remove the radiator drain plug and seal by aligning the pin on the drain plug to the notch on the radiator and pulling straight out. The seal usually comes out attached to the plug.
  4. Clean the drain and the drain plug.

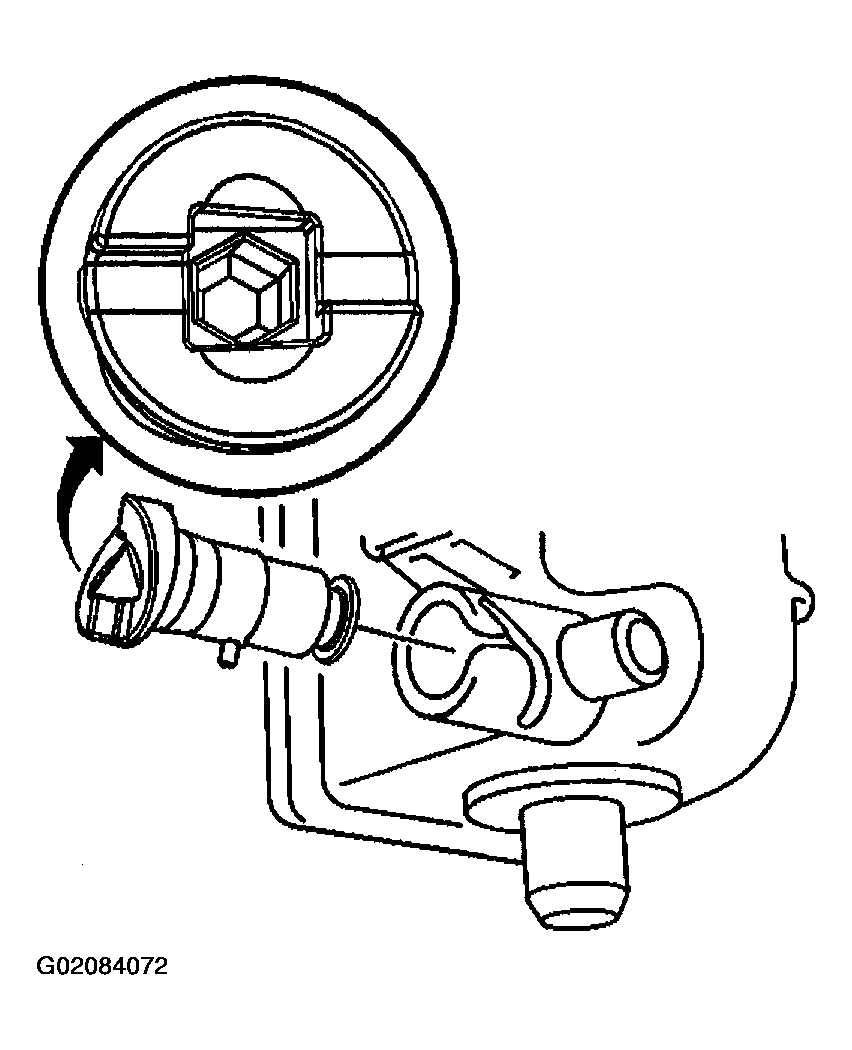

    Fig 1: Removing Radiator Drain Plug
    G02084072Courtesy of GENERAL MOTORS CORP.
