Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Install the switch to the side trim panel.

Fig 1: Installing Switch To Side Trim Panel
Courtesy of GENERAL MOTORS CORP.

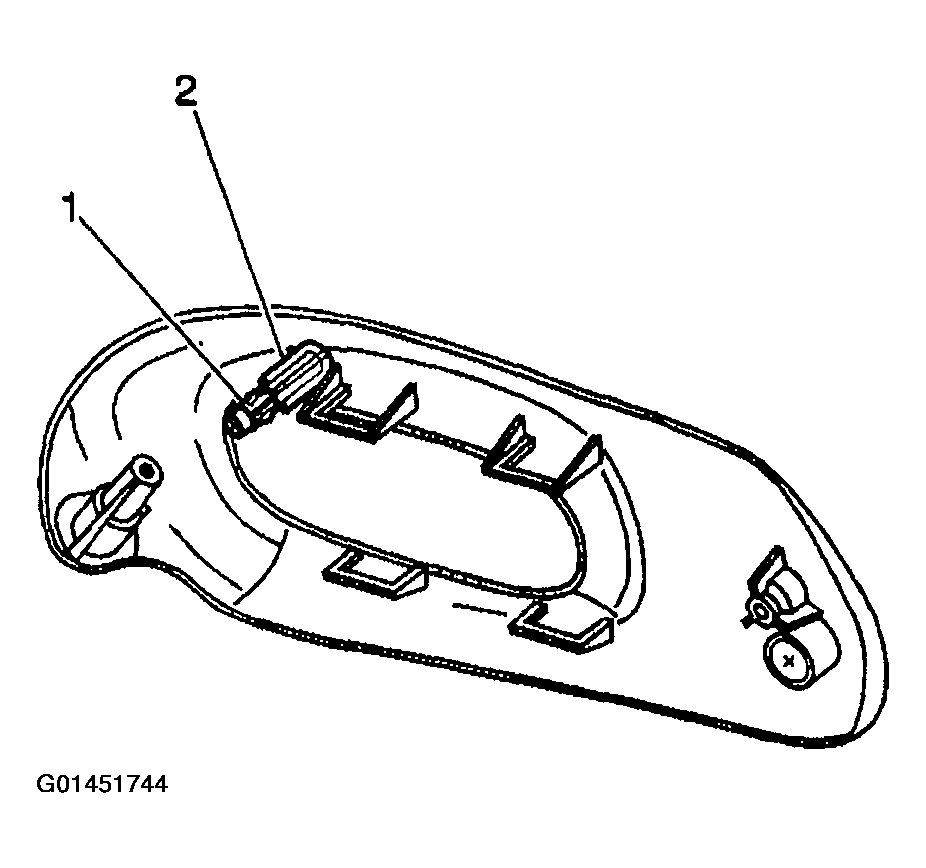

Install a new barrel clip (1) to the trim panel upper barrel post (2).
Connect the switch harness.

Fig 2: Installing New Barrel Clip To Trim Panel Upper Barrel Post
Courtesy of GENERAL MOTORS CORP.
Install the seat side trim panel.
- Push the barrel post with clip through the hole in the seat cover and into the seat frame.
- Install the front and rear trim panel attaching screws.

  Fig 3: Seat Side Trim Panel
  Courtesy of GENERAL MOTORS CORP.
Install the seat back recliner handle.

Fig 4: Seat Back Recliner Handle
Courtesy of GENERAL MOTORS CORP.
1. Position the handle retaining spring clip into the lock position.
2. Snap the handle onto the reclining mechanism shaft.
