Installation Procedure
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

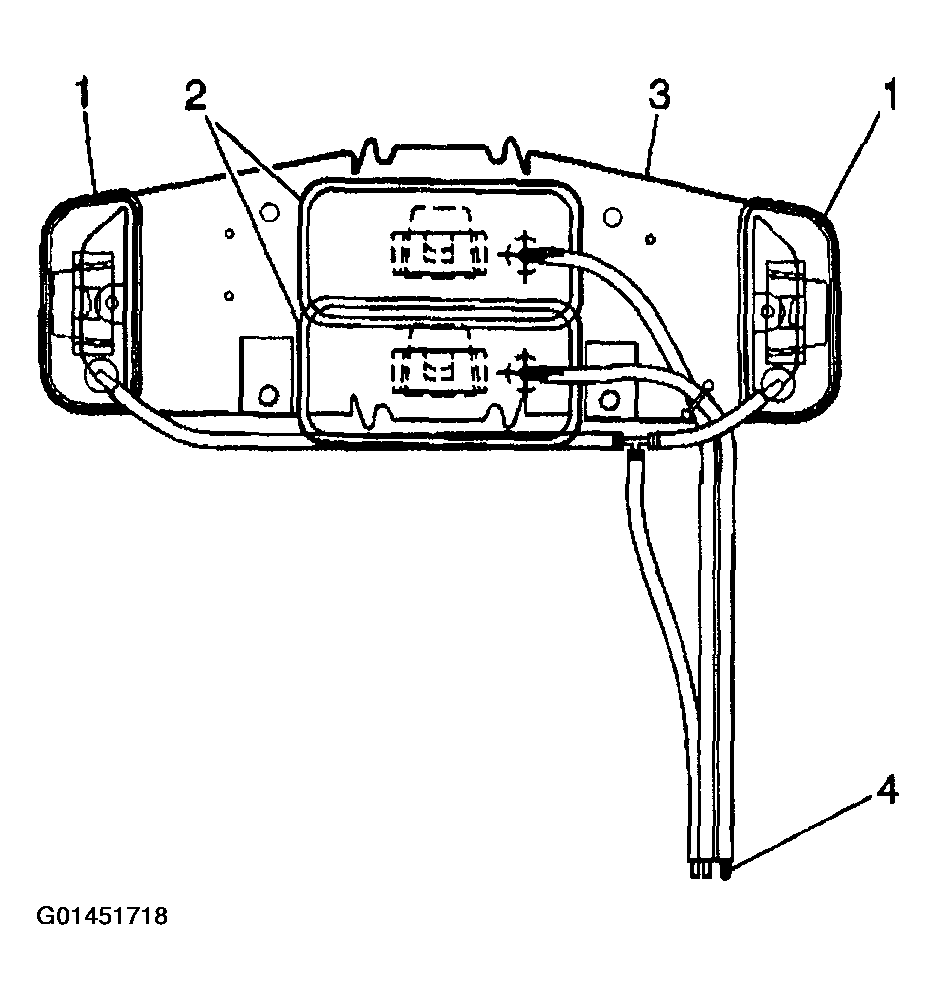

- Position the lumbar/lateral support bladders to the seat back inserting the tabs into the seat back.
- Route the hoses through the pivot area and tie strap them to the seat frame under the seat back adjuster.
- Connect the seat switch to the harness.
- Connect power to the seat.
It may be necessary to position the seat in the vehicle.
- Operate the upper lumbar control and use the procedure in step eight to connect the hose that pressurized to the bladder hose labeled #3.
- Operate the lower lumbar control and use the procedure in step eight to connect the hose that pressurized to the bladder hose labeled #4.
- Operate the bolster control and use the procedure in step eight to connect the hose that pressurized to the bladder hose labeled #5.
- Using Loctite™ 406, or equivalent, glue the module hoses to the fittings on the bladder hoses (4).
- Position the hose so it is just over the edge of the barb on the attaching fitting.
- Apply the adhesive completely around the fitting.
- Quickly push the hose the rest of the way onto the fitting.
- Install the control module to the seat support wires with the J strips.
- Disconnect the seat electrical connector and remove the seat from the vehicle (if reposition inside the vehicle in step 4.
- Install the seat cushion cover. Refer to SEAT CUSHION TRIM COVER AND PAD REPLACEMENT .

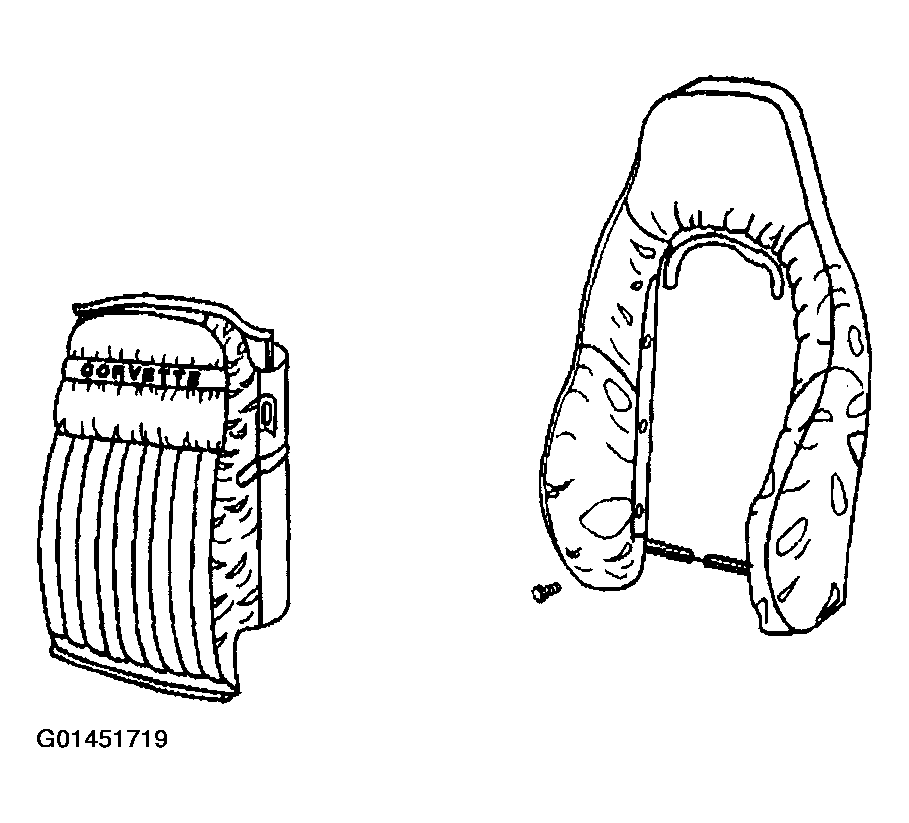

- Install the seat back foam pad over the bolsters.
- Install the seat back cover over the bolsters.
- Attach the cover and the bladder assembly with the four lower fir tree fasteners.
- Zip the upper seat back zipper closed.
- Tuck the cover over the corners of the hinges.
- Install the insert pillow. Refer to SEAT BACK TRIM REPLACEMENT - FRONT .

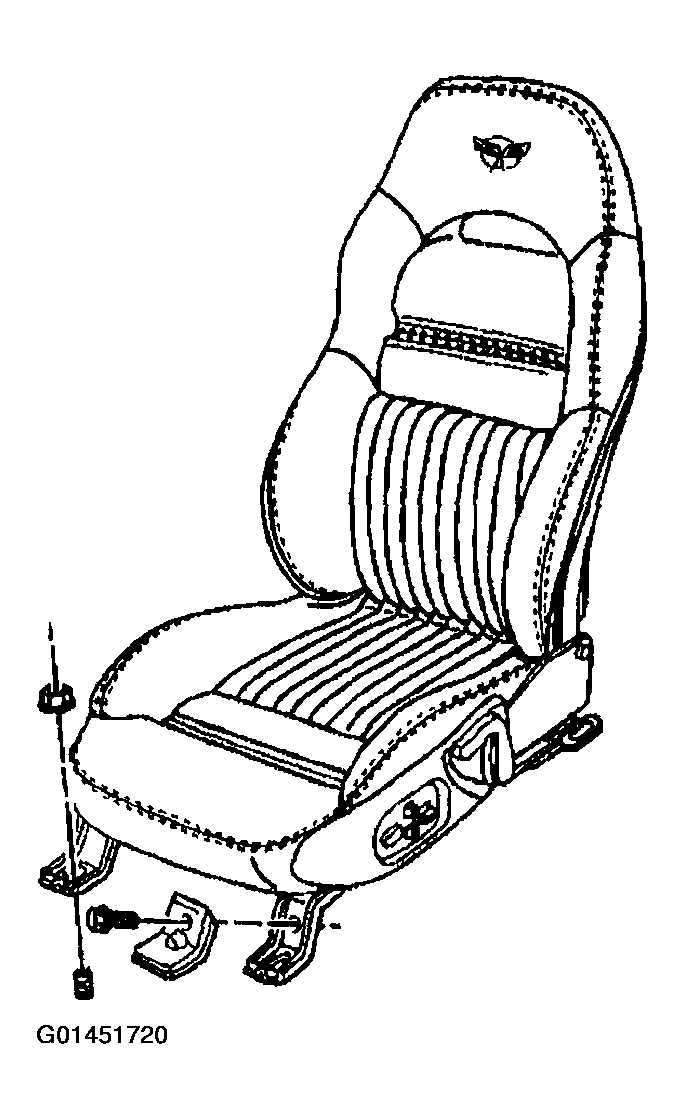

- Install the seat. Refer to SEAT REPLACEMENT (POWER) or SEAT REPLACEMENT (MANUAL) .
