Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Disconnect the positive battery cable.

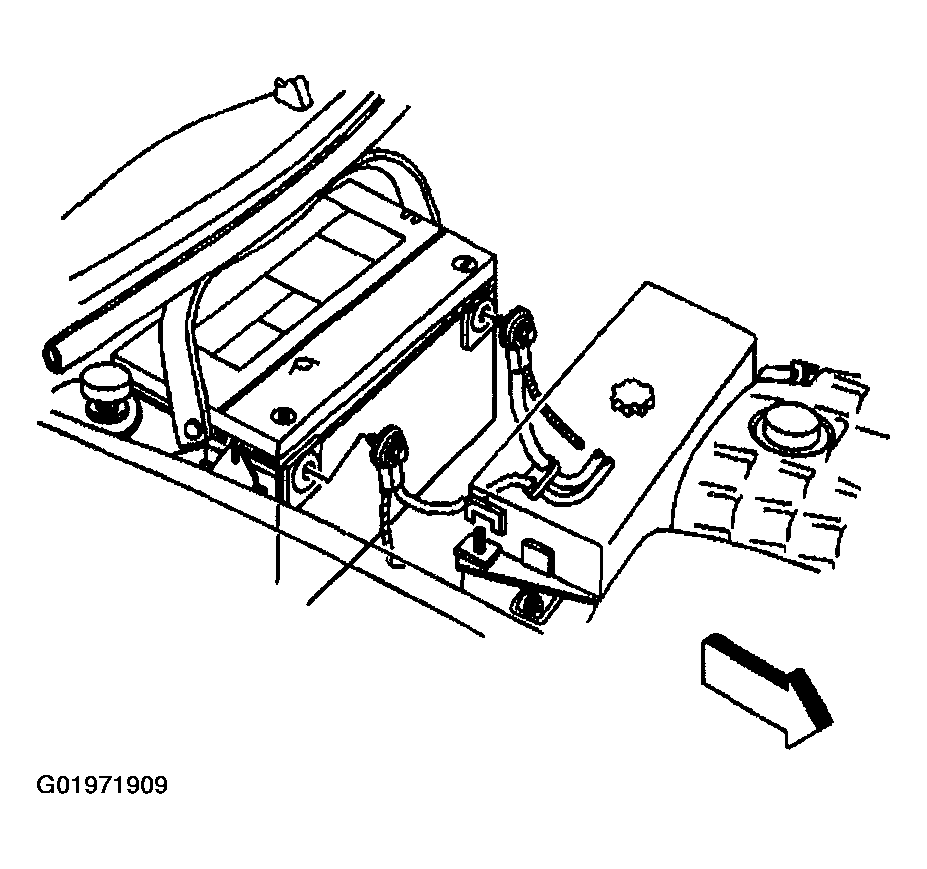

    Fig 1: Disconnecting Battery Positive & Negative Cable
    G01971909Courtesy of GENERAL MOTORS CORP.
  3. Remove the battery hold down retainer bolt and retainer.
  4. Remove the battery.

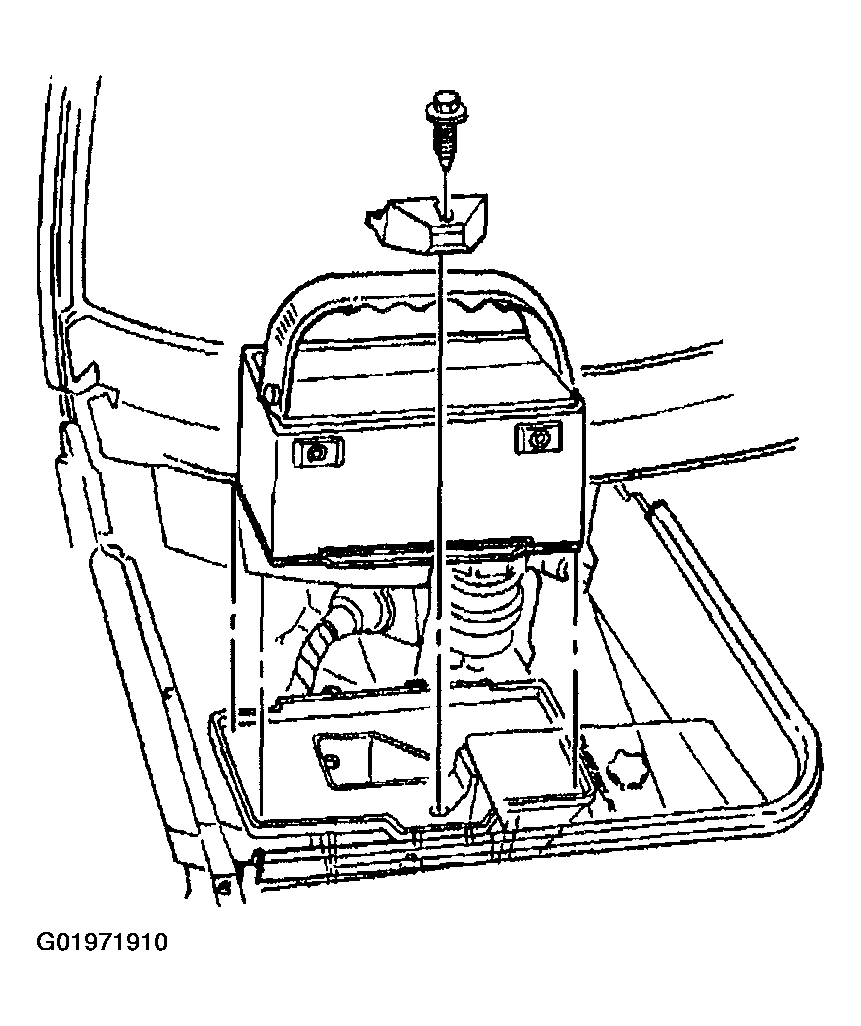

    Fig 2: Battery Hold Down Retainer Bolt & Retainer
    G01971910Courtesy of GENERAL MOTORS CORP.
