Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push-in retainer attaching the air inlet screen and battery heat shield to the plenum panel.

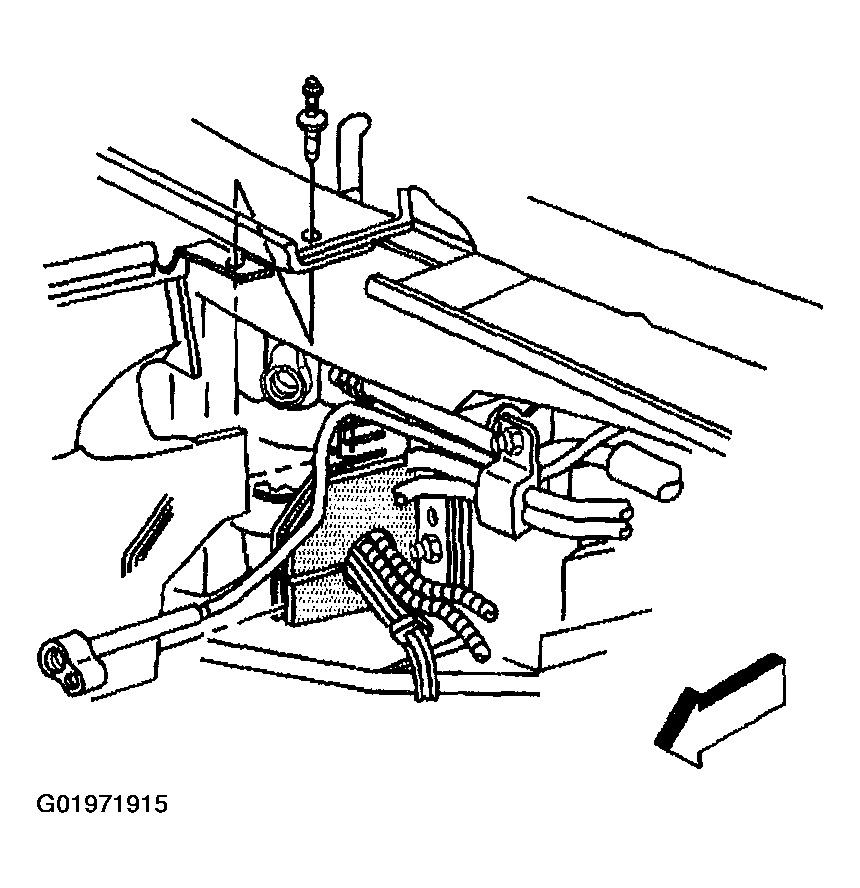

    Fig 1: Removing Battery Heat Shield From Plenum
    G01971915Courtesy of GENERAL MOTORS CORP.
  2. Remove the push-in retainer attaching the battery heat shield to the wheelhouse panel.
  3. Lift the battery heat shield from the ground stud and remove the shield.

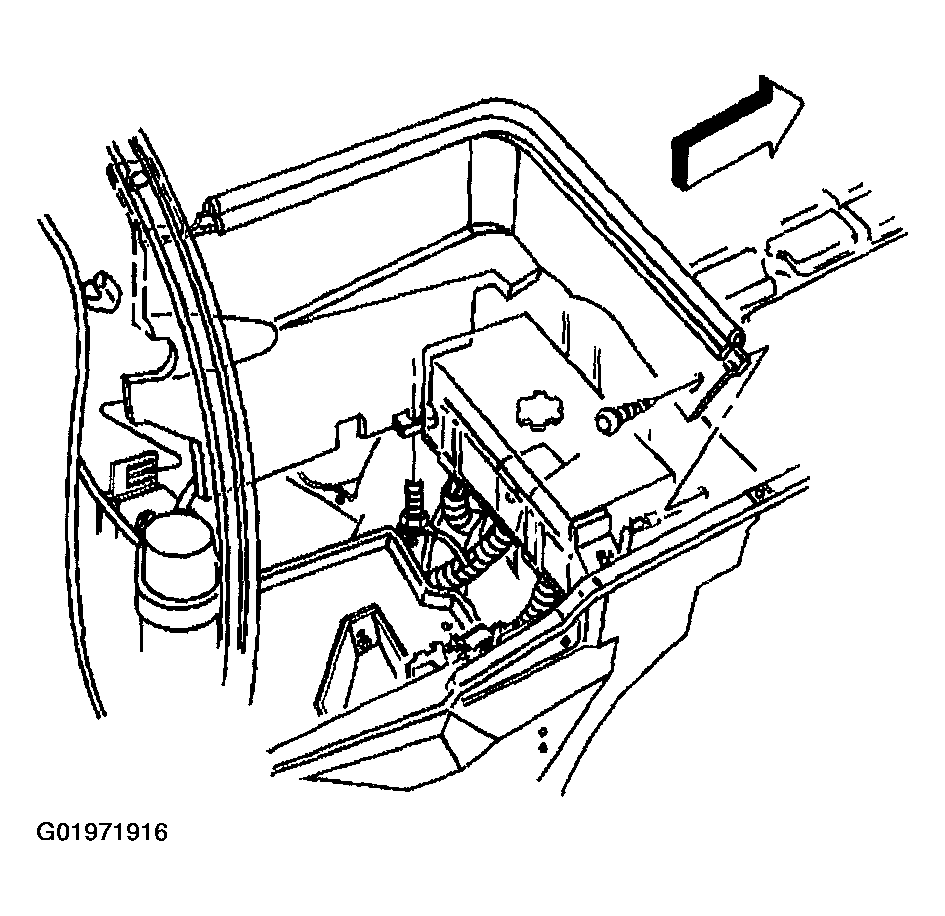

    Fig 2: Removing Battery Heat Shield From Wheelhouse Panel
    G01971916Courtesy of GENERAL MOTORS CORP.
