Water Pump Installation

  1. Install the water pump gasket.
  2. Install the water pump.
  3. Install the water pump bolts.

    Tighten

    Tighten the water pump bolts to 11 N.m (98 INCH lbs).

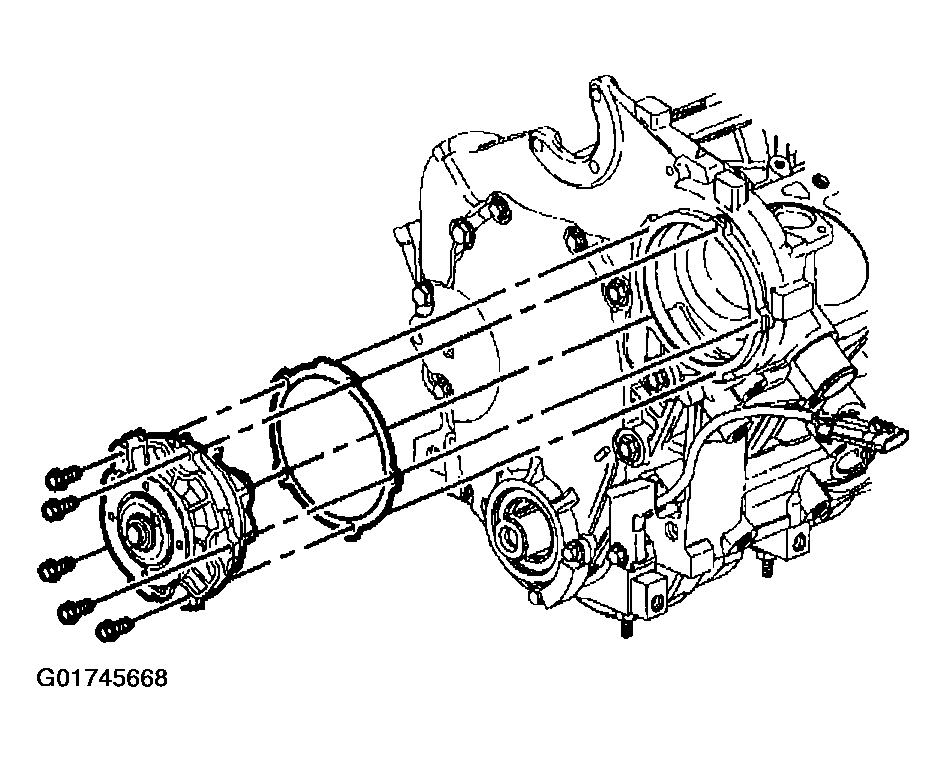

    Fig 1: Installing Water Pump
    G01745668Courtesy of GENERAL MOTORS CORP.
  4. Install the water pump pulley.
  5. Install the water pump pulley bolts.

    Tighten

    Tighten the water pump pulley bolts to 25 N.m (18 ft. lbs).

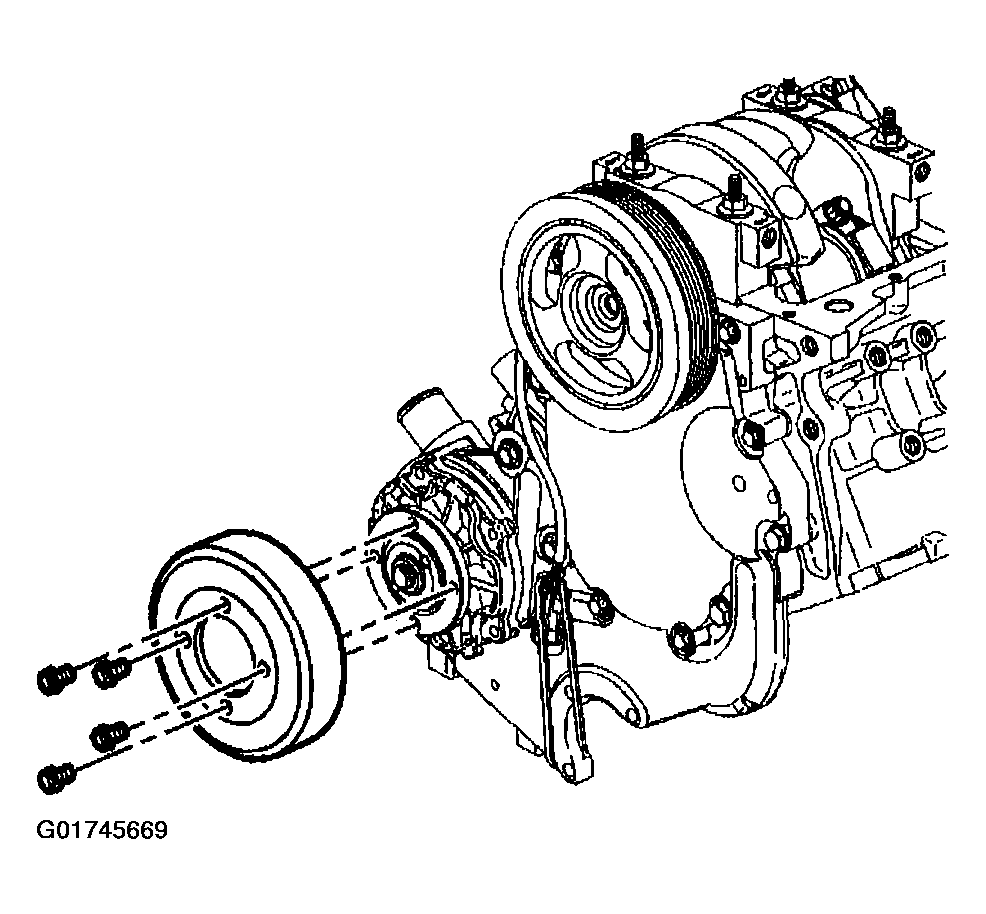

    Fig 2: Installing Water Pump Pulley
    G01745669Courtesy of GENERAL MOTORS CORP.
