Water Outlet Installation

  1. Install the thermostat.

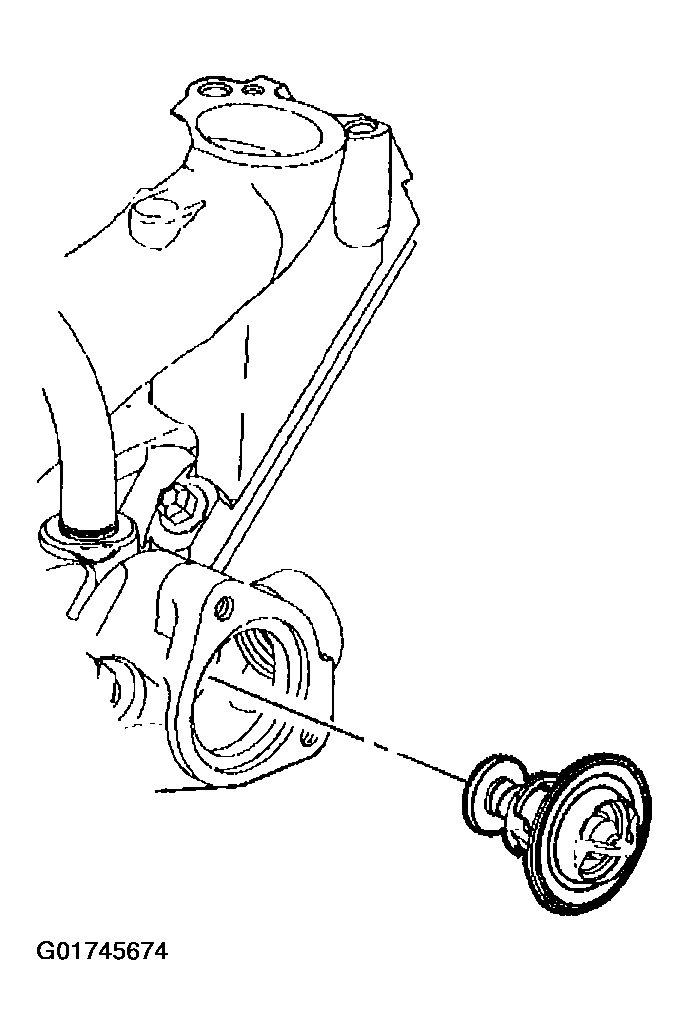

    Fig 1: Installing Thermostat
    G01745674Courtesy of GENERAL MOTORS CORP.
  2. Install the water outlet.
  3. Install the water outlet bolts.

    Tighten

    Tighten the water outlet bolts to 25 N.m (18 ft. lbs).

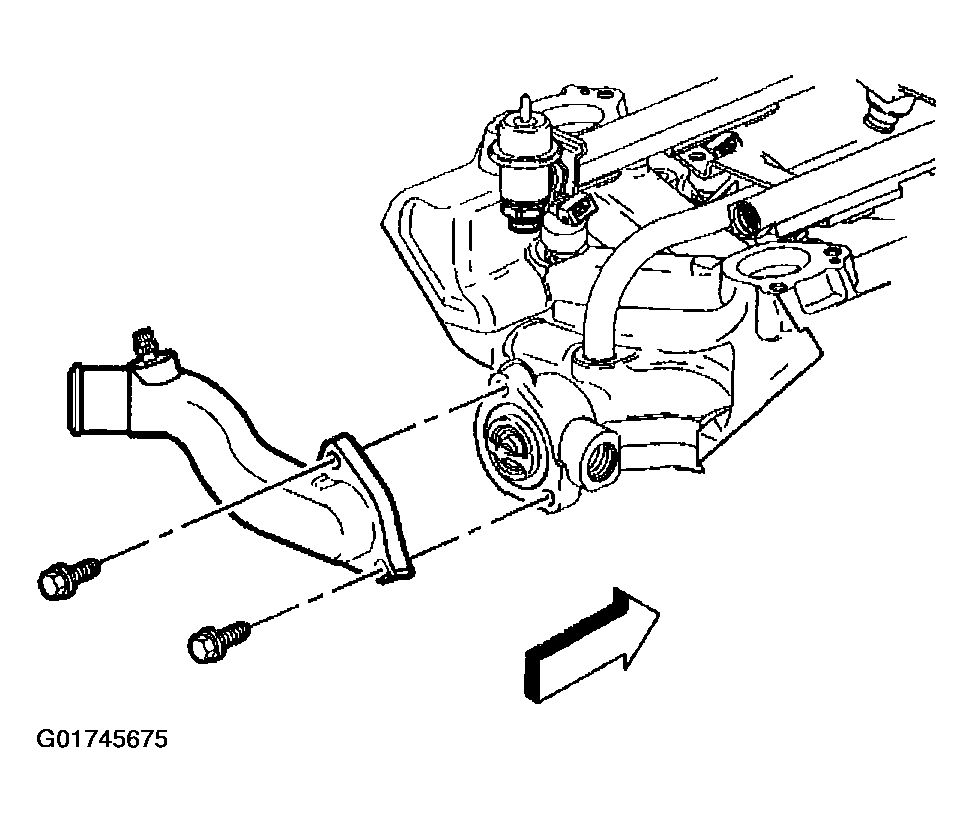

    Fig 2: Installing Thermostat Housing
    G01745675Courtesy of GENERAL MOTORS CORP.
