Oil Level Indicator and Tube Installation

  1. Install the oil level indicator and oil level indicator tube.

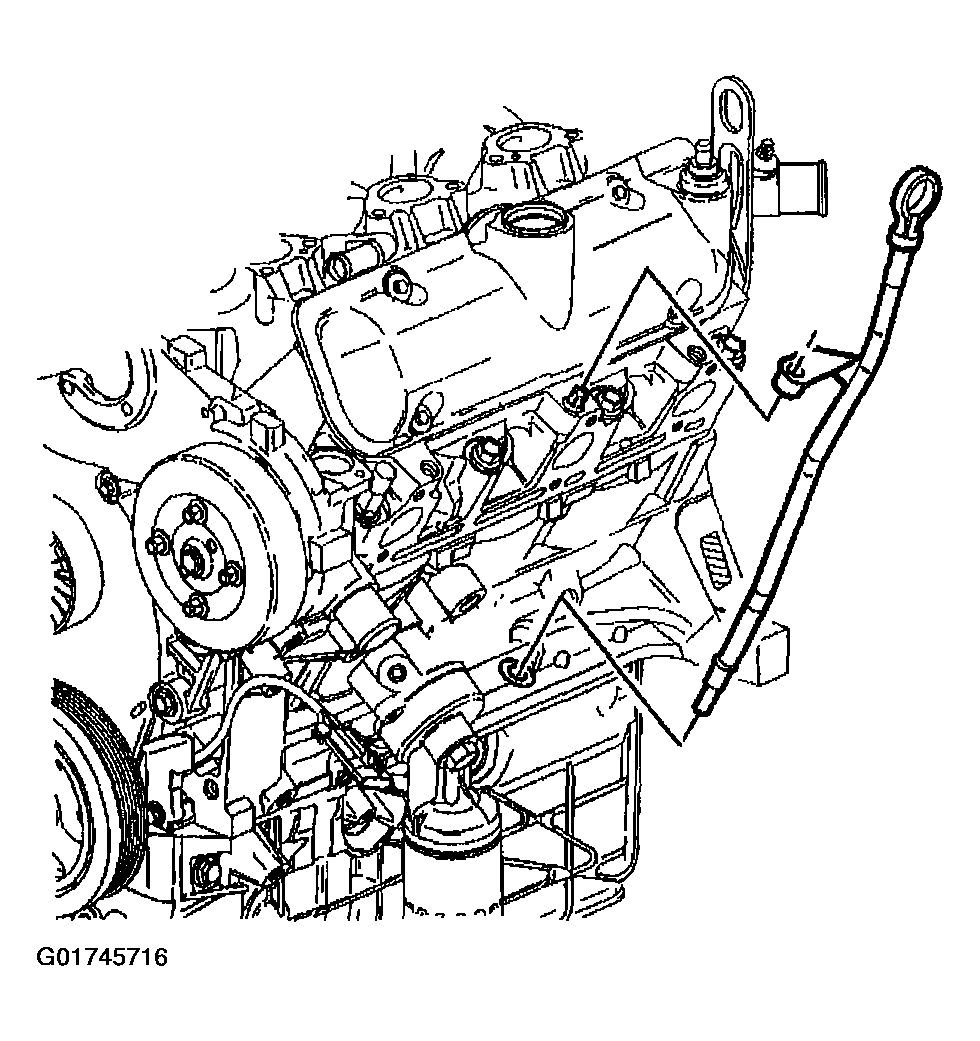

    Fig 1: Installing Oil Level Indicator & Tube
    G01745716Courtesy of GENERAL MOTORS CORP.
  2. Install the oil level indicator tube bolt.

    Tighten

    Tighten the oil level indicator tube bolt to 25 N.m (18 ft. lbs).

  3. Install the thermostat bypass pipe (3).
  4. Install the thermostat bypass pipe (3) and hose clamp (5).
  5. Install the thermostat bypass pipe to engine front cover bolt (4).

    Tighten

    Tighten the thermostat bypass pipe to engine front cover bolt to 11 N.m (98 INCH lbs).

  6. Install the thermostat bypass pipe (3) to throttle body hose clamps (1).
  7. Install the thermostat bypass pipe to throttle body nut (2).

    Tighten

    Tighten the thermostat bypass pipe to throttle body nut to 25 N.m (18 ft. lbs).

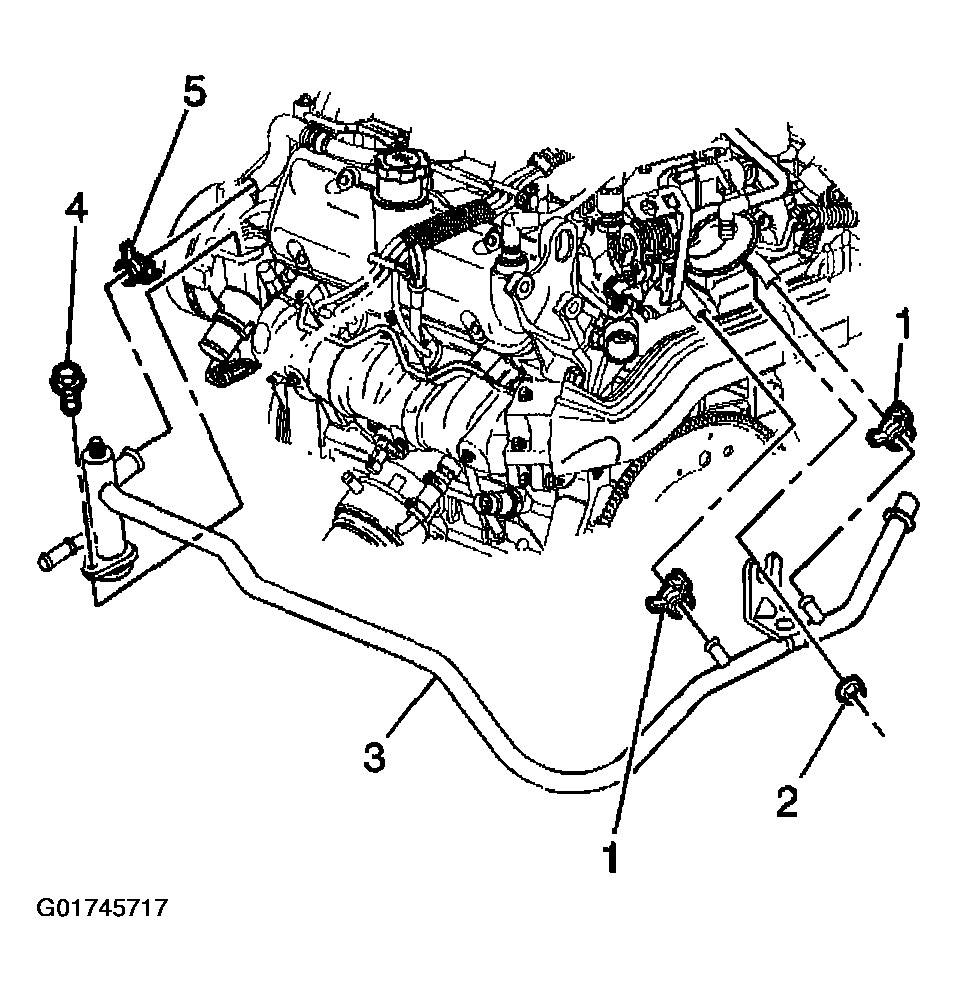

    Fig 2: Installing Thermostat Bypass Pipe
    G01745717Courtesy of GENERAL MOTORS CORP.
