Engine Mount Strut and Air Conditioning Compressor Bracket Installation

  1. Install the engine mount strut and A/C Compressor bracket.
  2. Install the engine mount strut and A/C Compressor bracket bolts.

    Tighten

    Tighten the engine mount strut and lift bracket bolts to 50 N.m (37 ft. lbs).

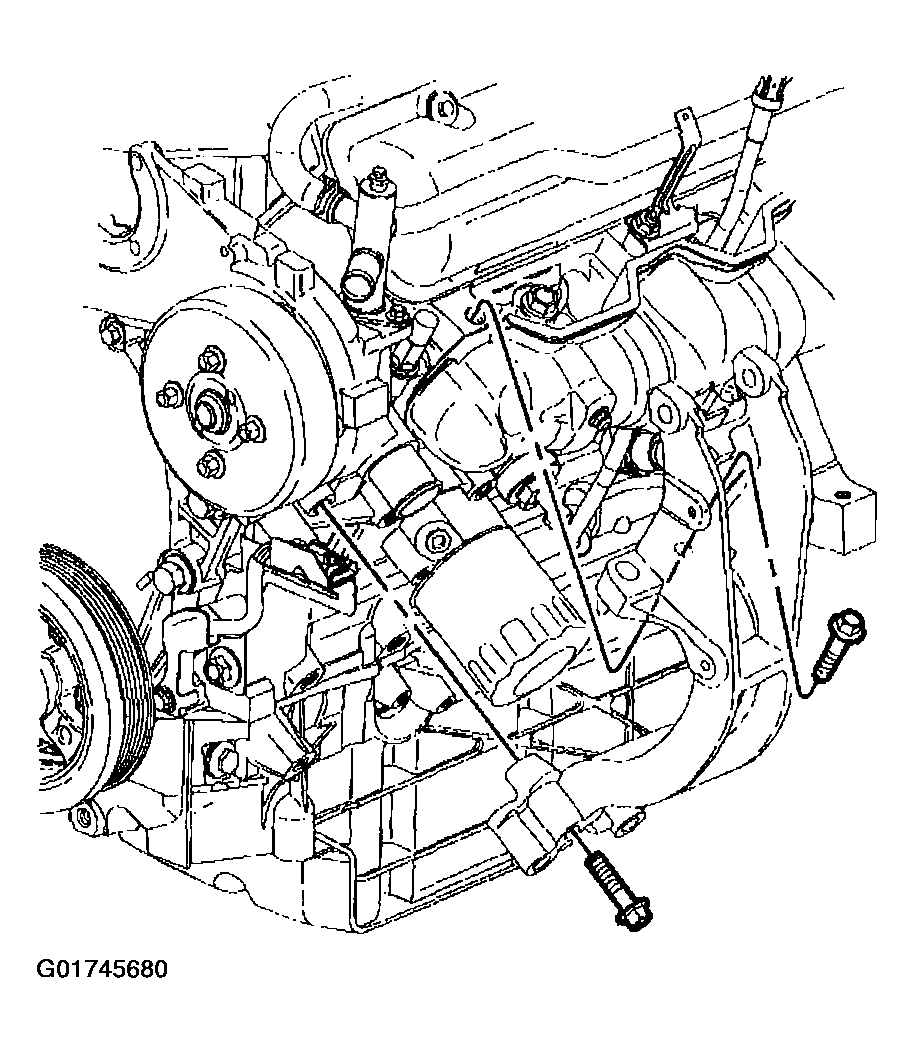

    Fig 1: Installing Engine Mount Strut And A/C Compressor Bracket
    G01745680Courtesy of GENERAL MOTORS CORP.
