Engine Front Cover Removal

  1. Remove the crankshaft position sensor wiring bracket bolt.
  2. Remove the crankshaft position sensor wiring bracket.

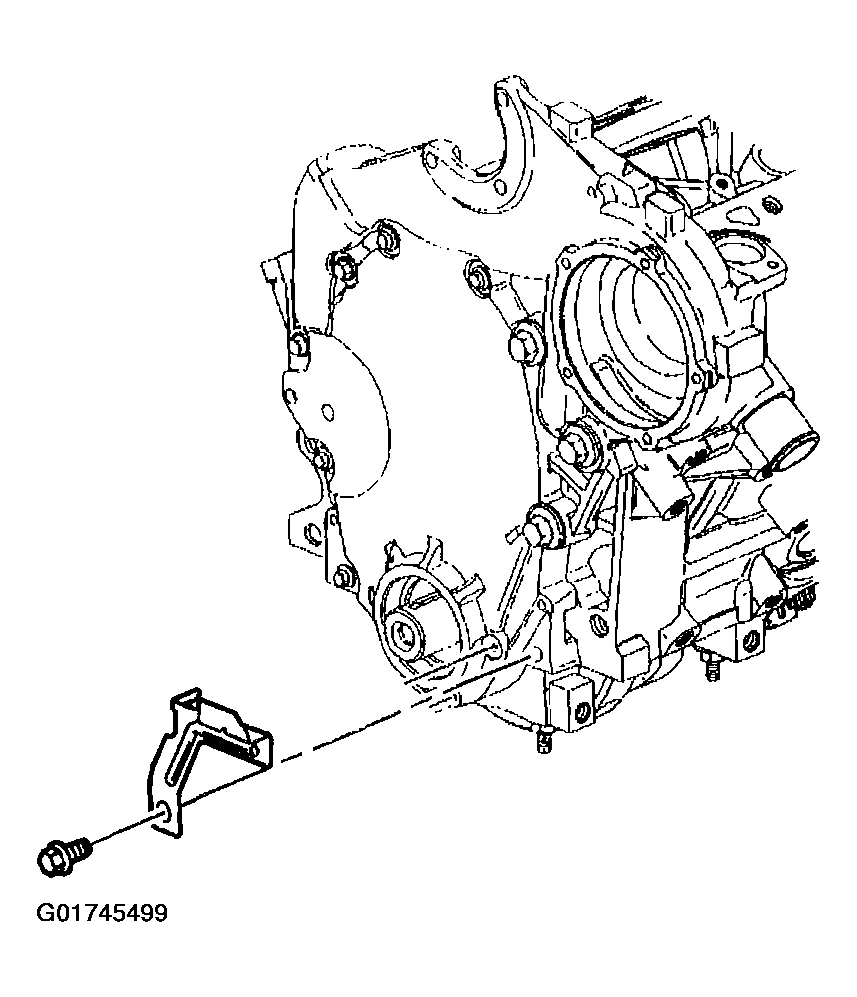

    Fig 1: Removing Crankshaft Position Sensor Wiring Bracket
    G01745499Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine front cover bolts (1), (2), and (3).
  4. Remove the engine front cover.

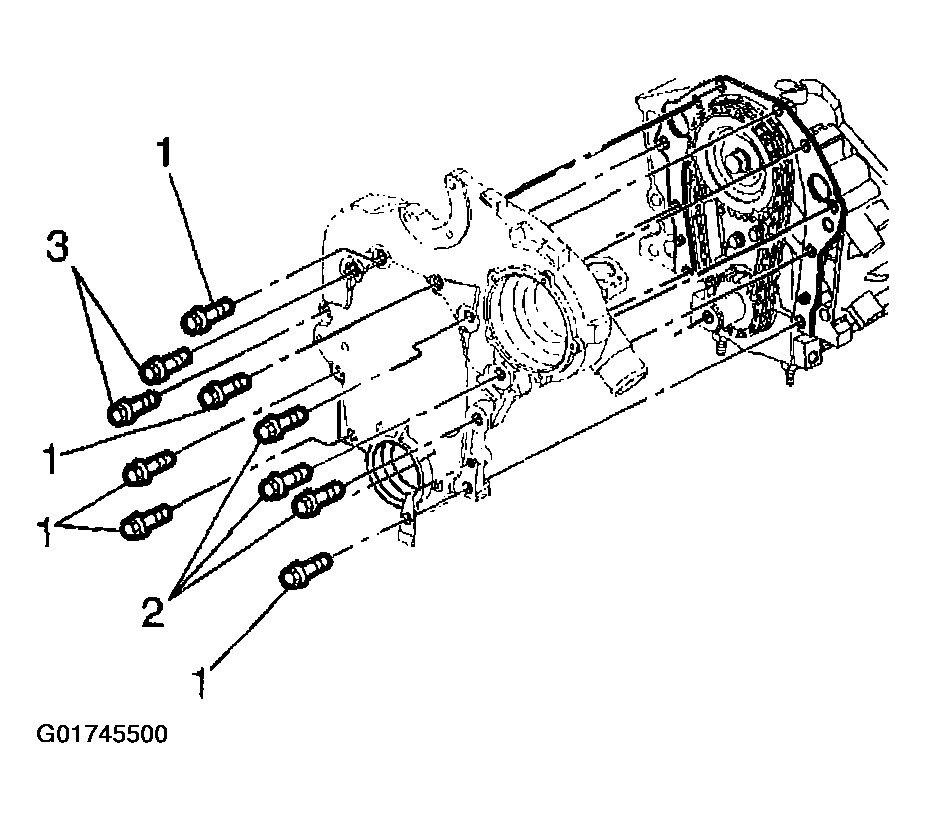

    Fig 2: Removing Front Engine Cover
    G01745500Courtesy of GENERAL MOTORS CORP.
  5. Remove the engine front cover gasket.
