Engine Flywheel Installation

  1. Install the flywheel.
  2. Install the flywheel retainer.
  3. Install the flywheel bolts.

    Tighten

    Tighten the flywheel bolts to 71 N.m (52 ft. lbs).

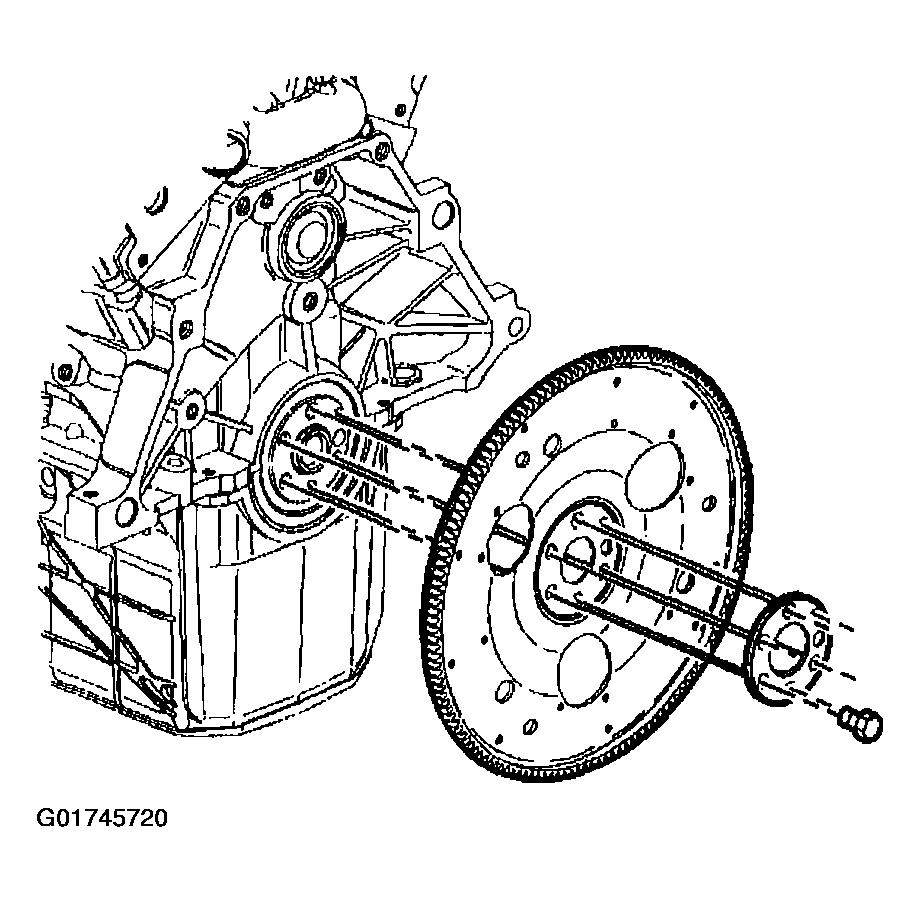

    Fig 1: Installing Flywheel
    G01745720Courtesy of GENERAL MOTORS CORP.
