Removal Procedure

  1. Drain the engine cooling system. Refer to Draining and Filling Cooling System .
  2. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  3. Remove the right front wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  4. Remove the right engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE .
  5. Remove the engine coolant heater cord from the engine coolant heater.
  6. Loosen the coolant heater bolt.

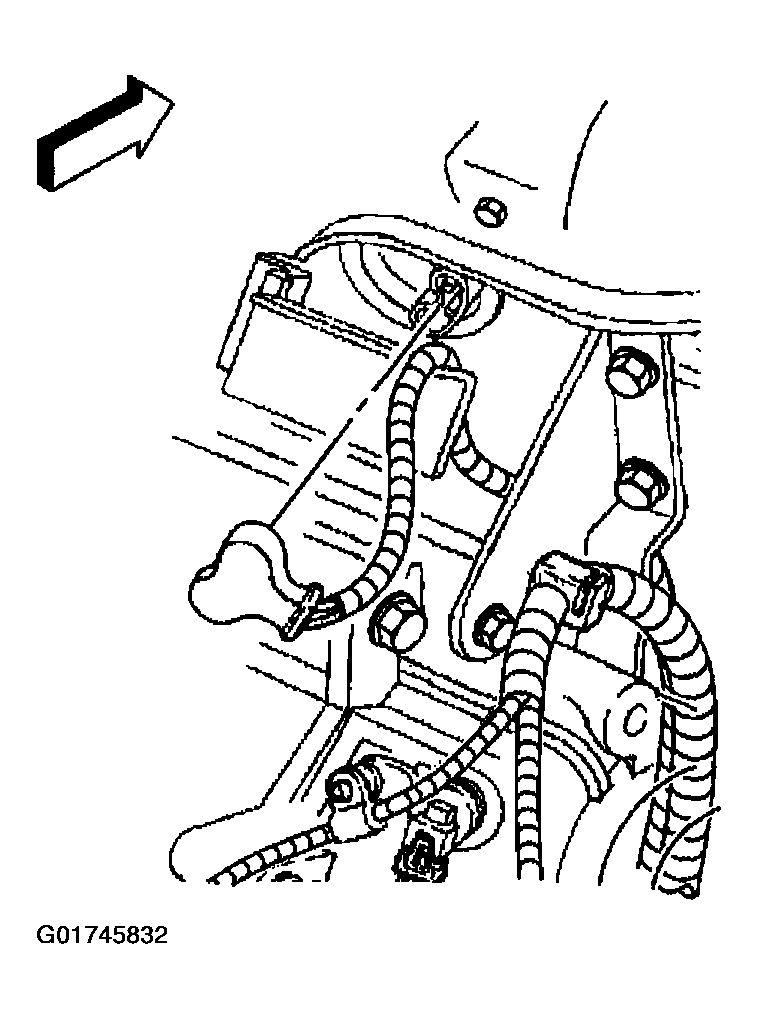

    7. Fig 1: Removing Engine Coolant Heater Cord & Loosening Coolant Heater Bolt
    G01745832Courtesy of GENERAL MOTORS CORP.
  7. Remove the coolant heater.

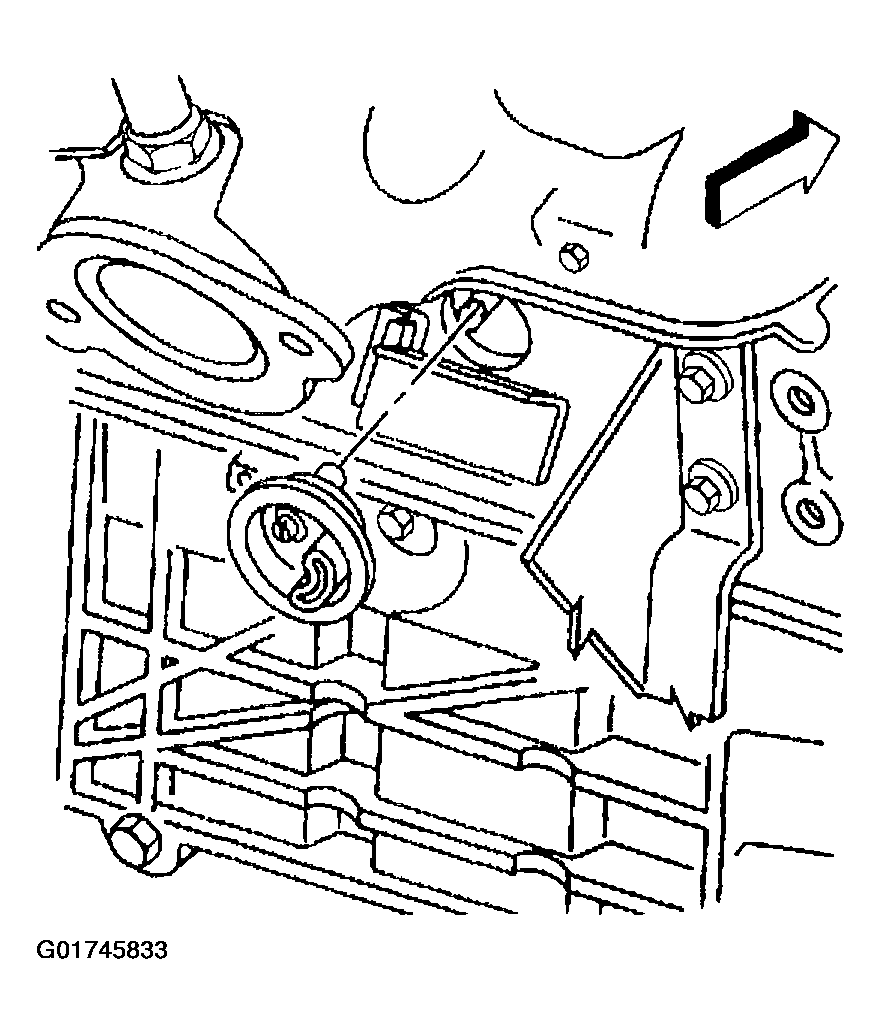

    Fig 2: Removing Coolant Heater
    G01745833Courtesy of GENERAL MOTORS CORP.
