Removal Procedure

  1. Remove the air cleaner and duct assembly.
  2. Drain the coolant until the coolant level is below the thermostat. Refer to Draining and Filling Cooling System .
  3. Remove the crossover exhaust pipe. Refer to EXHAUST CROSSOVER PIPE REPLACEMENT .
  4. Remove the radiator hose from the thermostat housing.
  5. Remove the thermostat housing bolts and clean any sealer from the bolt threads.

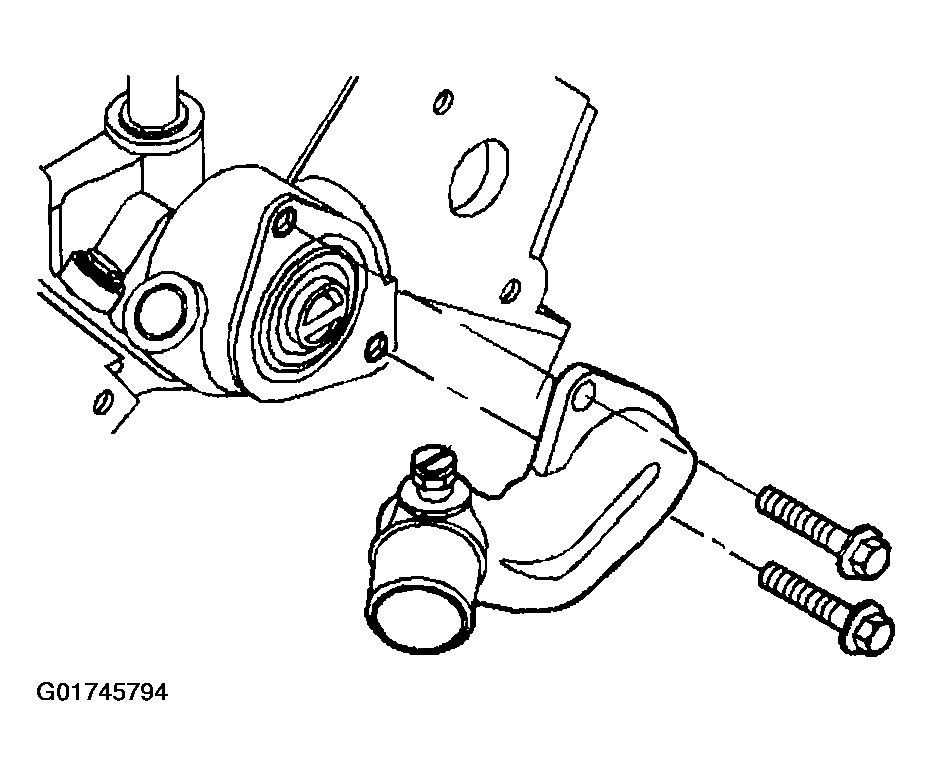

    6. Fig 1: Removing Thermostat Housing, Gasket & Bolts
    G01745794Courtesy of GENERAL MOTORS CORP.
  6. Remove the thermostat housing and gasket.
  7. Remove the thermostat.
  8. Clean the mating surfaces.

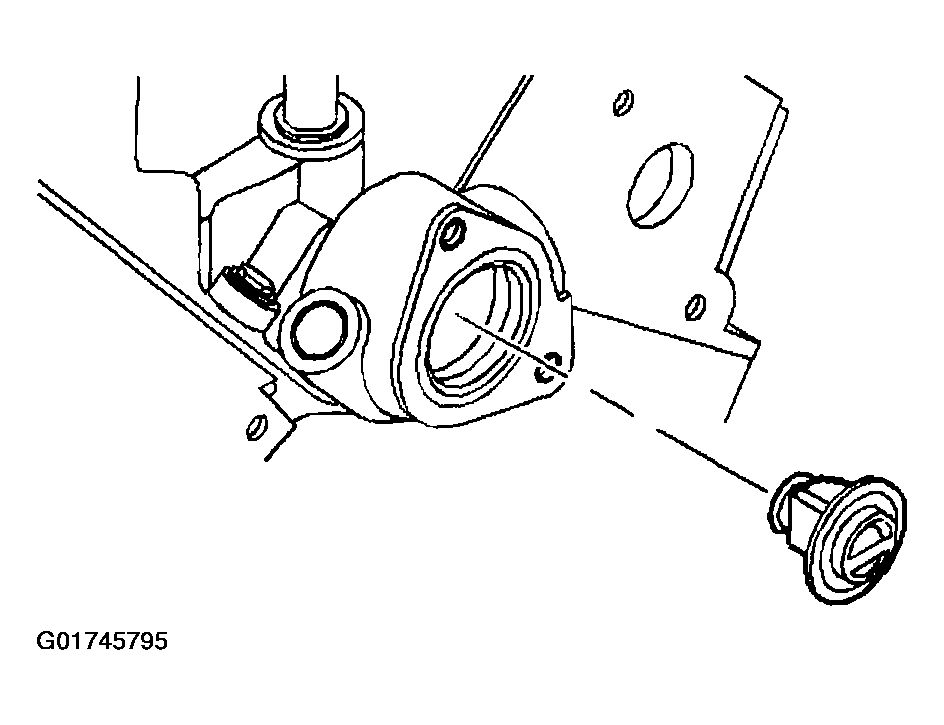

    Fig 2: Removing Thermostat
    G01745795Courtesy of GENERAL MOTORS CORP.
