Installation Procedure

  1. Install the radiator outlet hose.
  2. Connect the radiator outlet hose to the radiator.
  3. Reposition the hose clamp at the radiator to secure the hose using the J 38185.

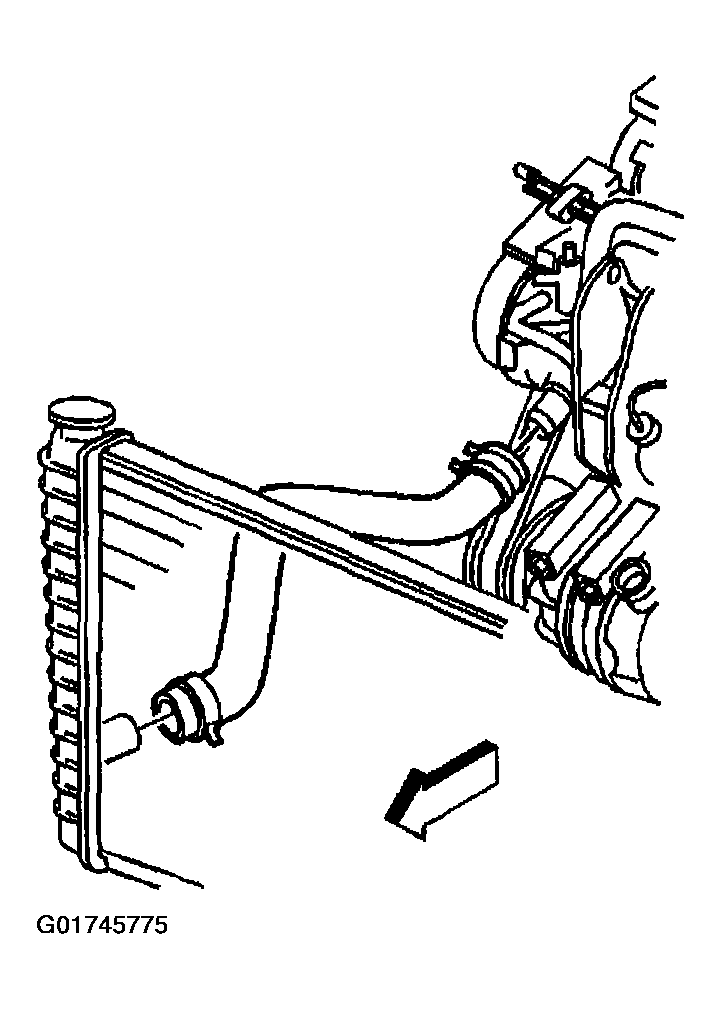

    4. Fig 1: Connecting & Installing Radiator Outlet Hose
    G01745775Courtesy of GENERAL MOTORS CORP.
  4. Connect the radiator outlet hose to the water pump housing.
  5. Reposition the hose clamp at the water pump housing to secure the hose using the J 38185.
  6. Fill the cooling system. Refer to Draining and Filling Cooling System .
