Installation Procedure

  1. Connect the electrical connectors to the switch.

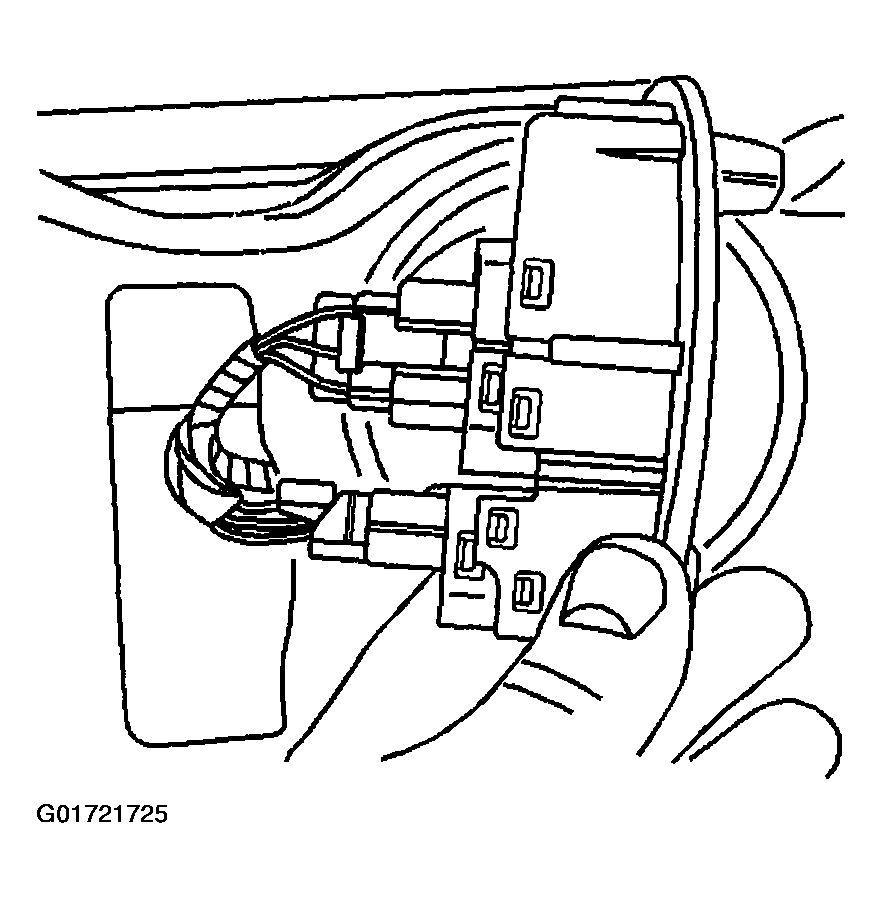

    Fig 1: Connecting Driver Information Center Switch Electrical Connectors
    G01721725Courtesy of GENERAL MOTORS CORP.
  2. Install the driver information center switch to the IP trim plate.
  3. Push the switch assembly to the IP trim plate until the assembly is fully seated.

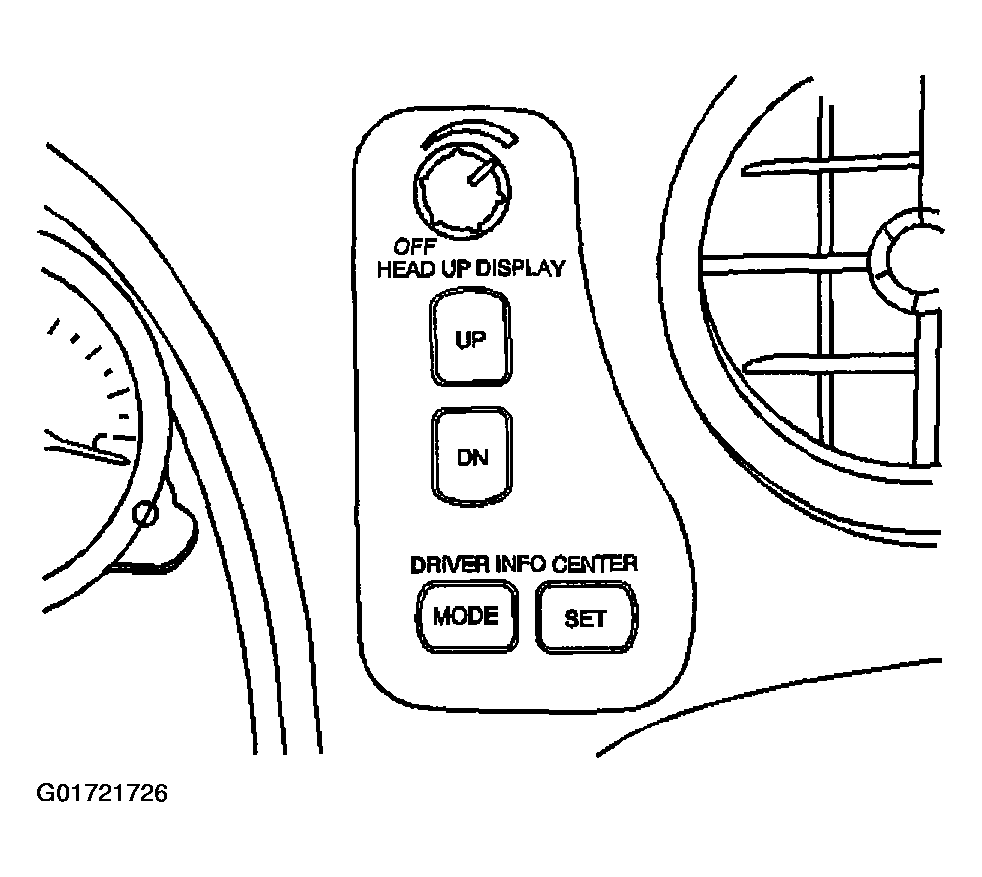

    Fig 2: Installing Driver Information Center Switch To IP Trim Plate
    G01721726Courtesy of GENERAL MOTORS CORP.
