Installation Procedure

  1. Connect the electrical connectors to the switch.

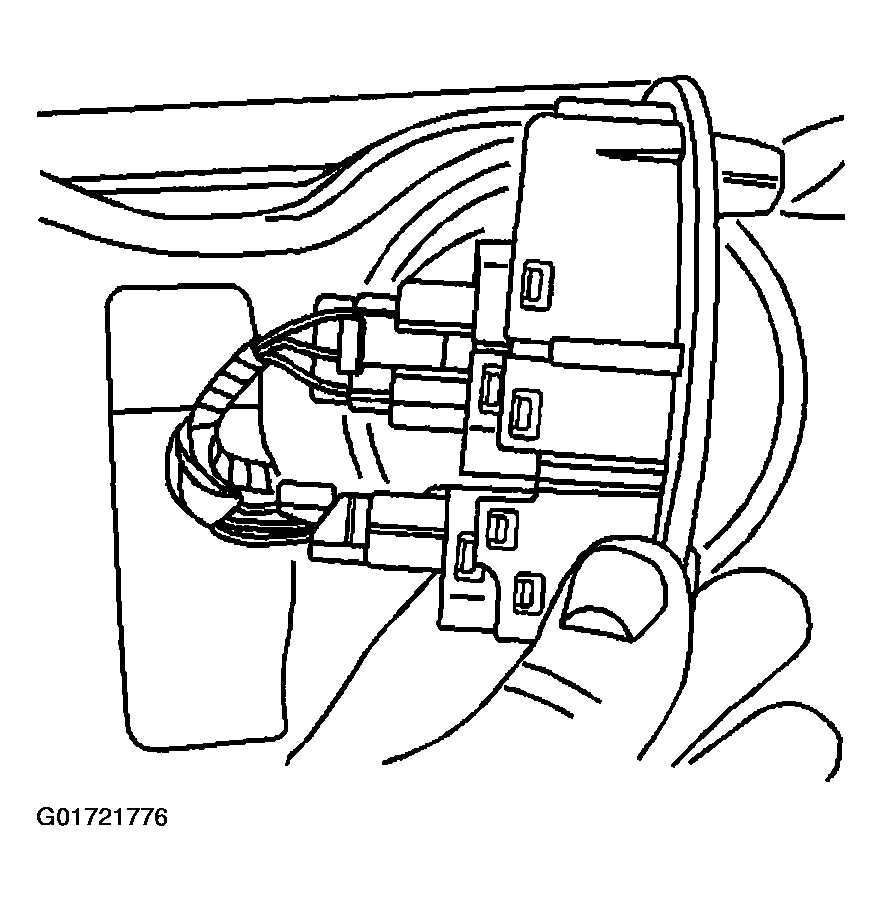

    Fig 1: Connecting Driver Information Center Switch Electrical Connectors
    G01721776Courtesy of GENERAL MOTORS CORP.
  2. Install the driver information center switch to the IP trim plate.
  3. Push the switch assembly to the IP trim plate until the assembly is fully seated.

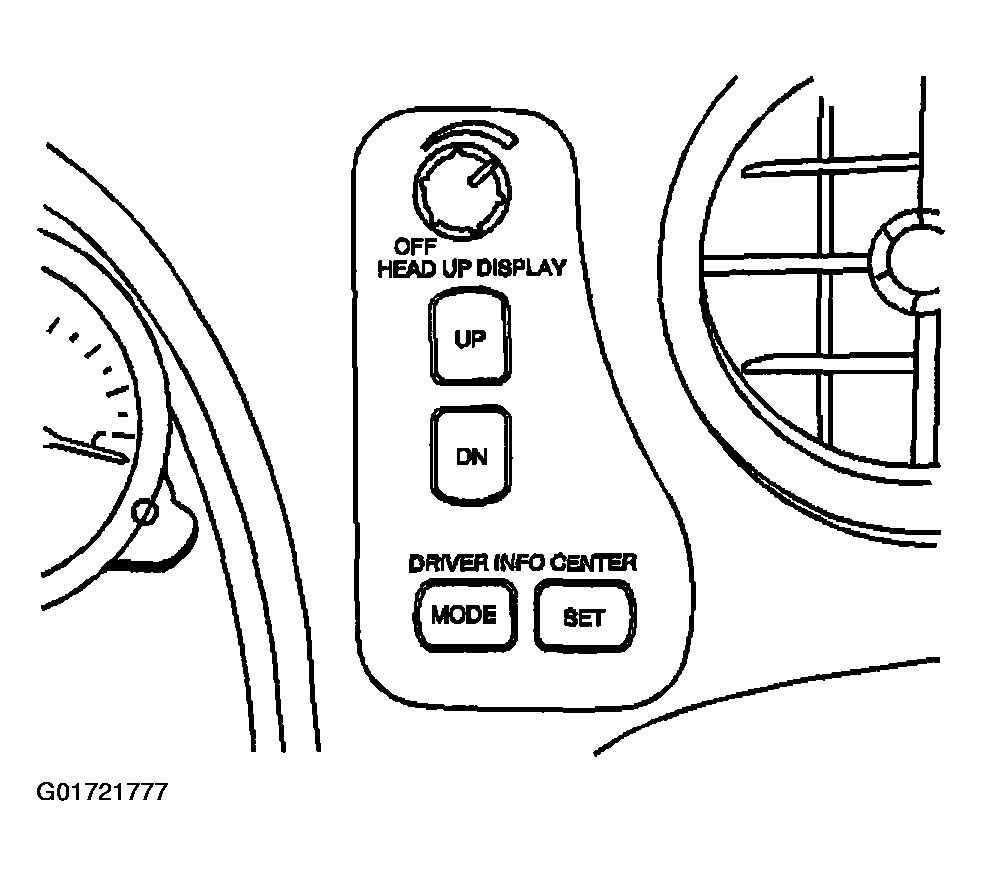

    Fig 2: Installing Instrument Panel (I/P) Driver Information Center Switch
    G01721777Courtesy of GENERAL MOTORS CORP.
