Removal Procedure

  1. Remove the right and/or left headlamp. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (AZTEK) or HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (RENDEZVOUS) .
  2. Disconnect the horn electrical connector.
    Fig 1: Disconnecting Horn Electrical Connector
    G01726460Courtesy of GENERAL MOTORS CORP.
  3. Remove the horn bracket bolt.

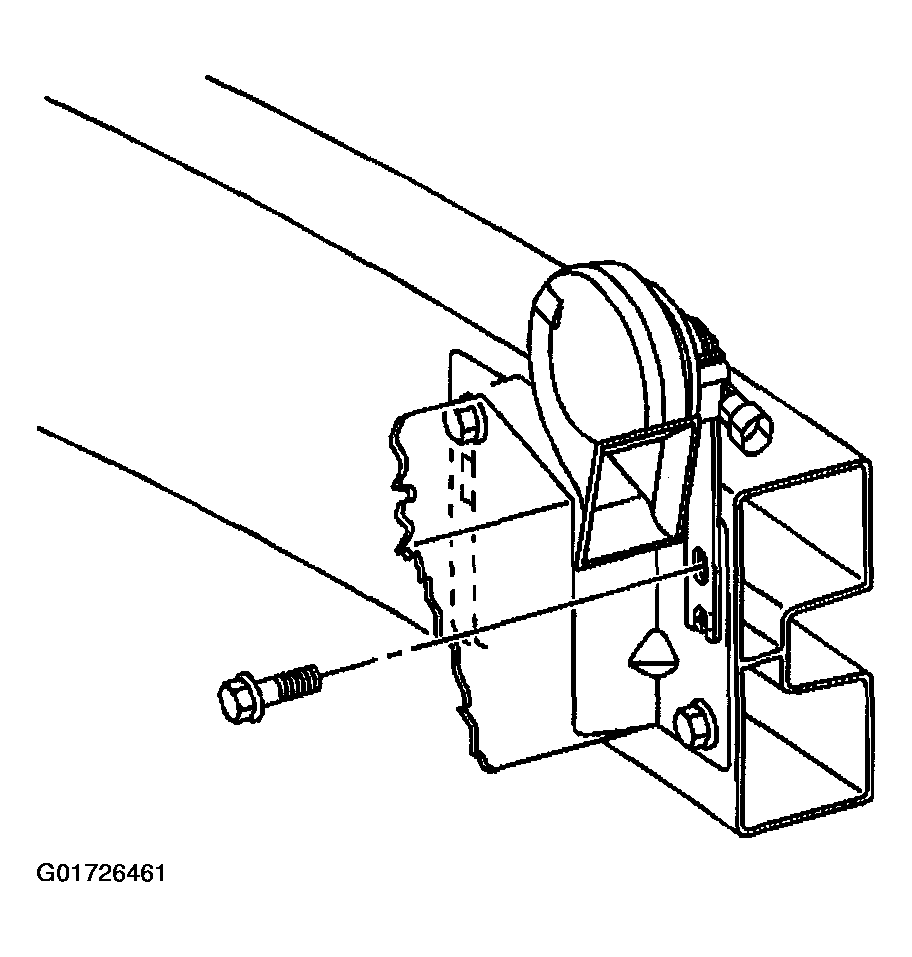

    Fig 2: Removing Horn Bracket Bolt
    G01726461Courtesy of GENERAL MOTORS CORP.
  4. Remove the horn from the front bumper impact bar.

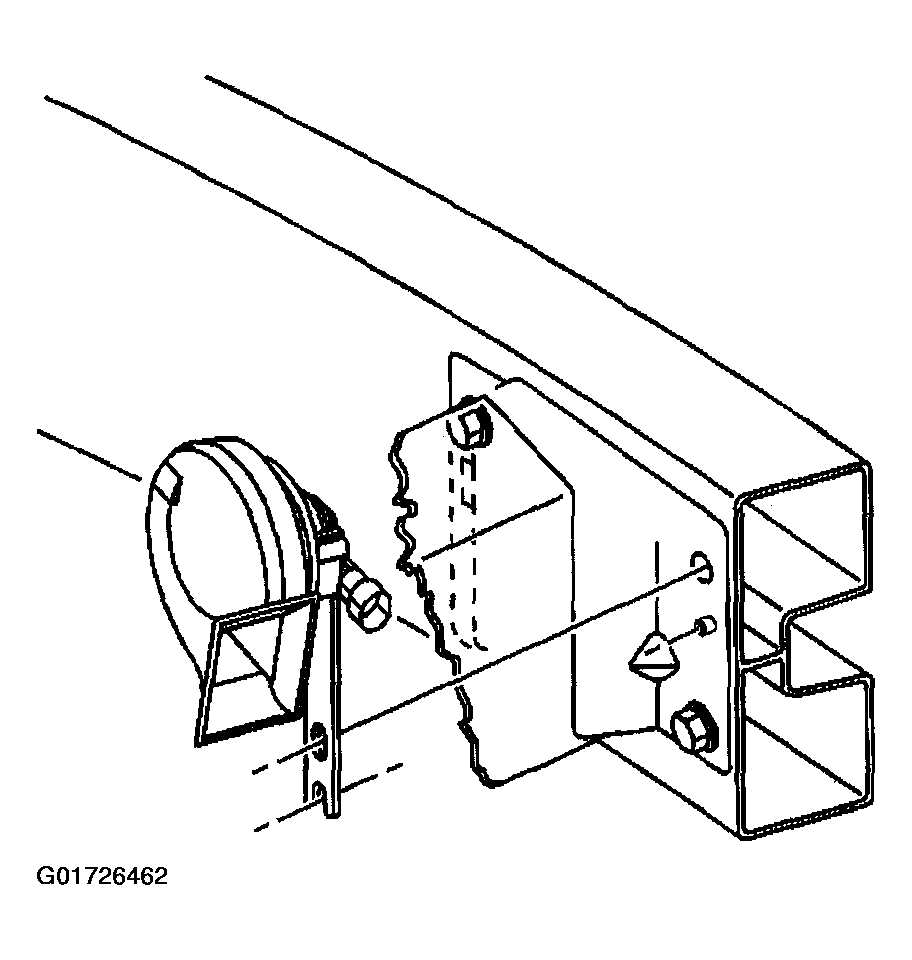

    Fig 3: Removing Horn
    G01726462Courtesy of GENERAL MOTORS CORP.
