Horns Connector End Views

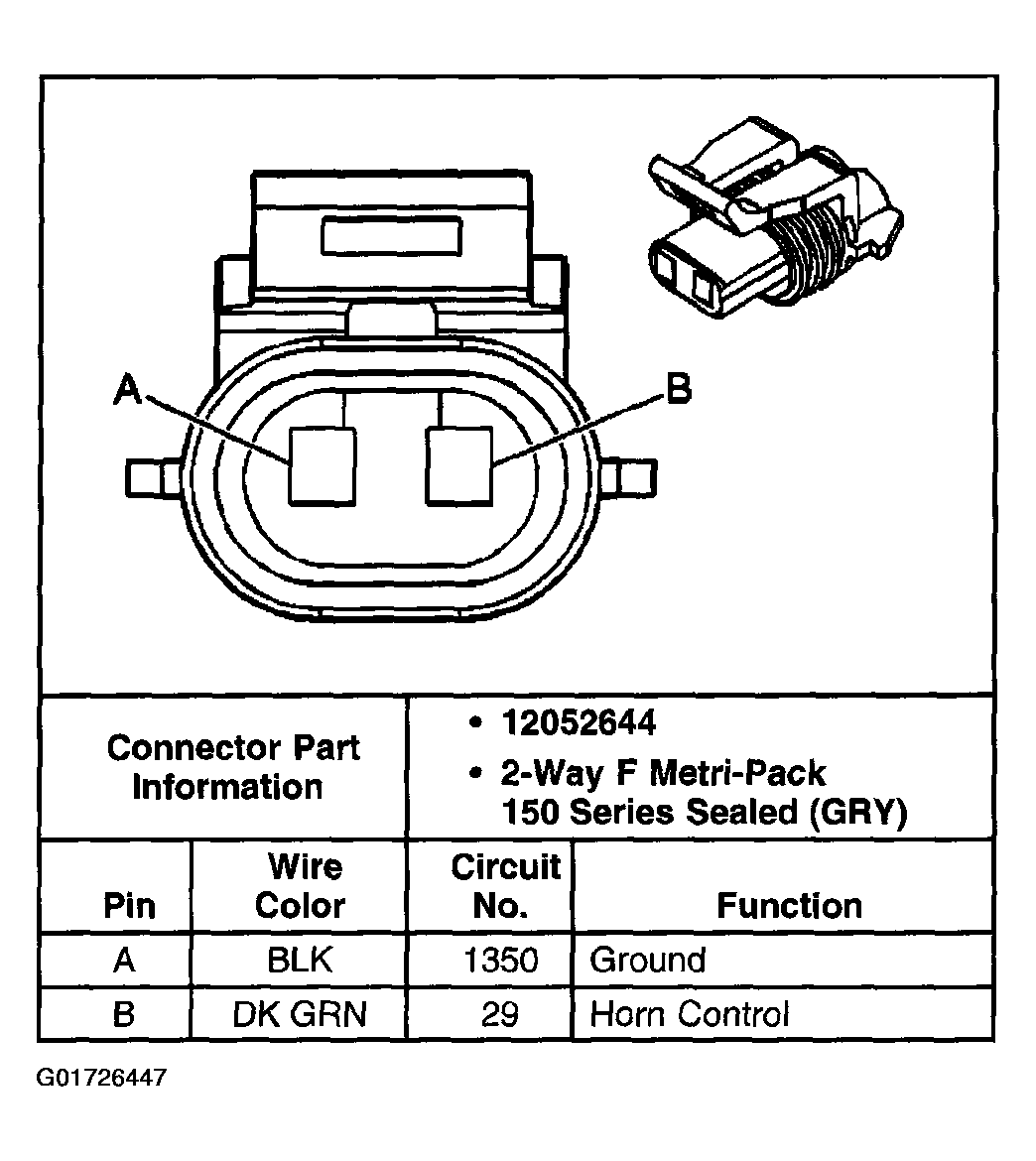

Fig 1: Horn Connector End Views - Left (Low Note)

G01726447

Courtesy of GENERAL MOTORS CORP.

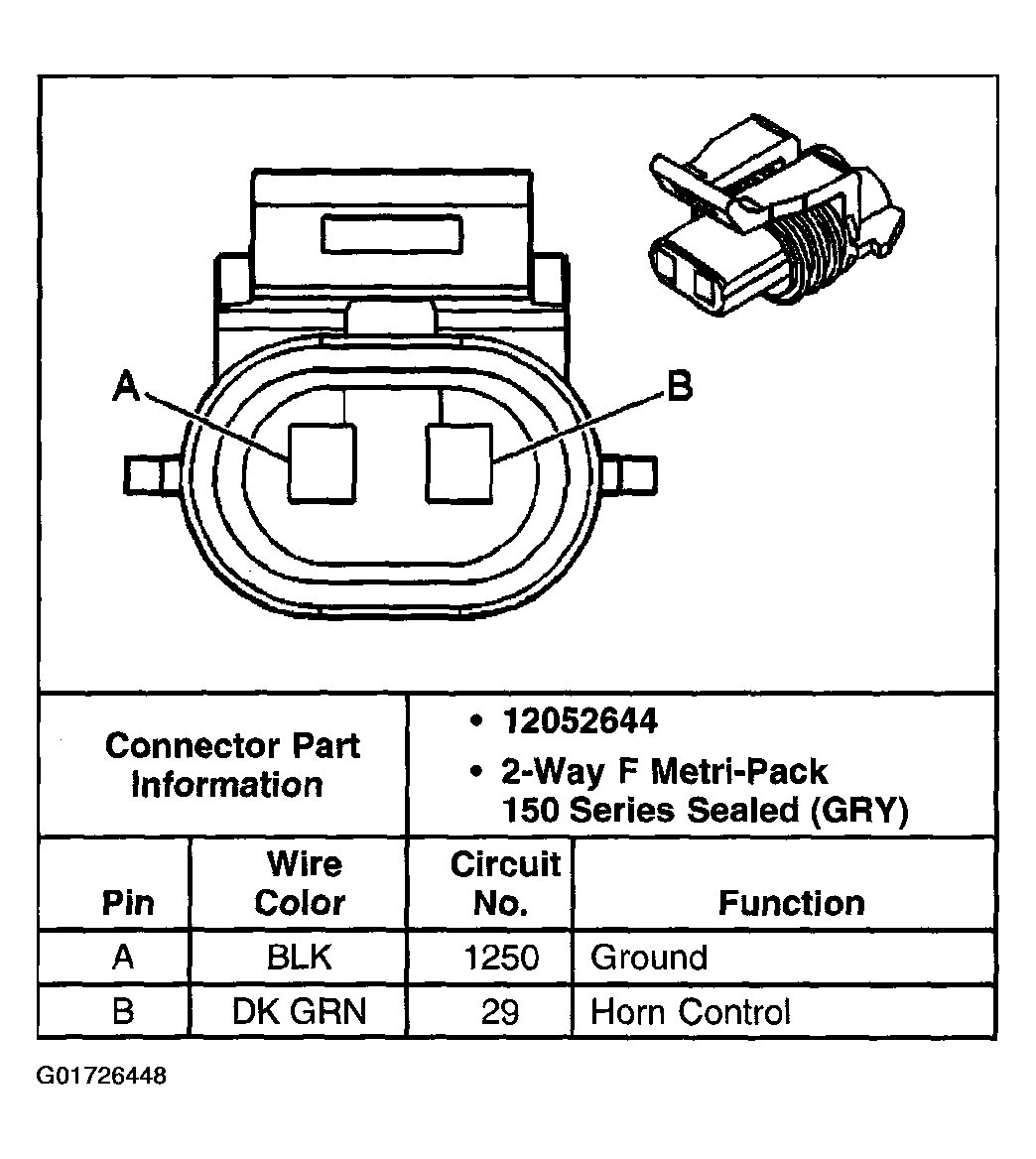

Fig 2: Horn Connector End Views - Right (High Note)

G01726448

Courtesy of GENERAL MOTORS CORP.
