Retained Accessory Power (RAP) Schematics

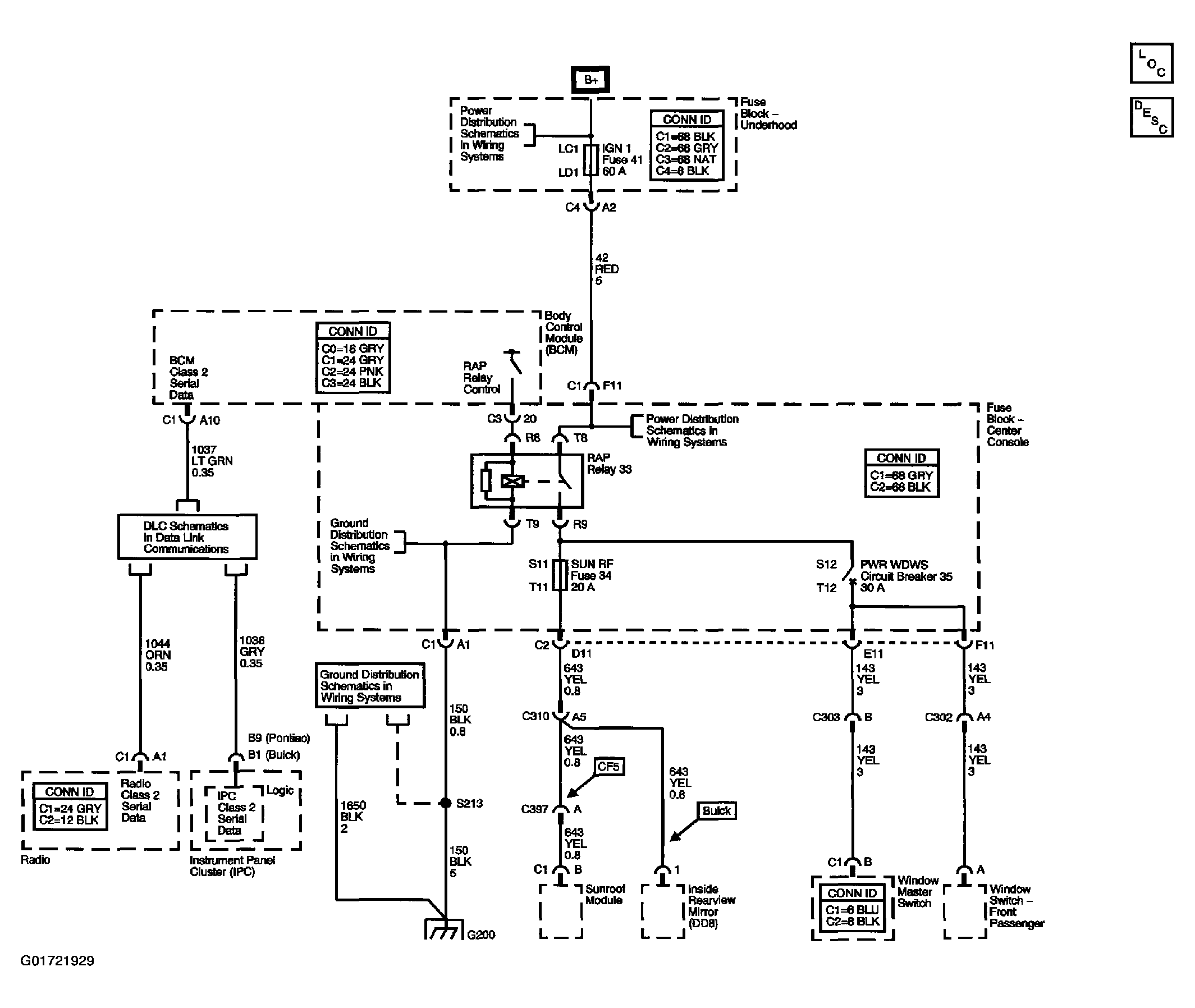

Fig 1: Retained Accessory Power (RAP) Schematics

G01721929

Courtesy of GENERAL MOTORS CORP.
