Head Up Display (HUD) Switch Connector End View

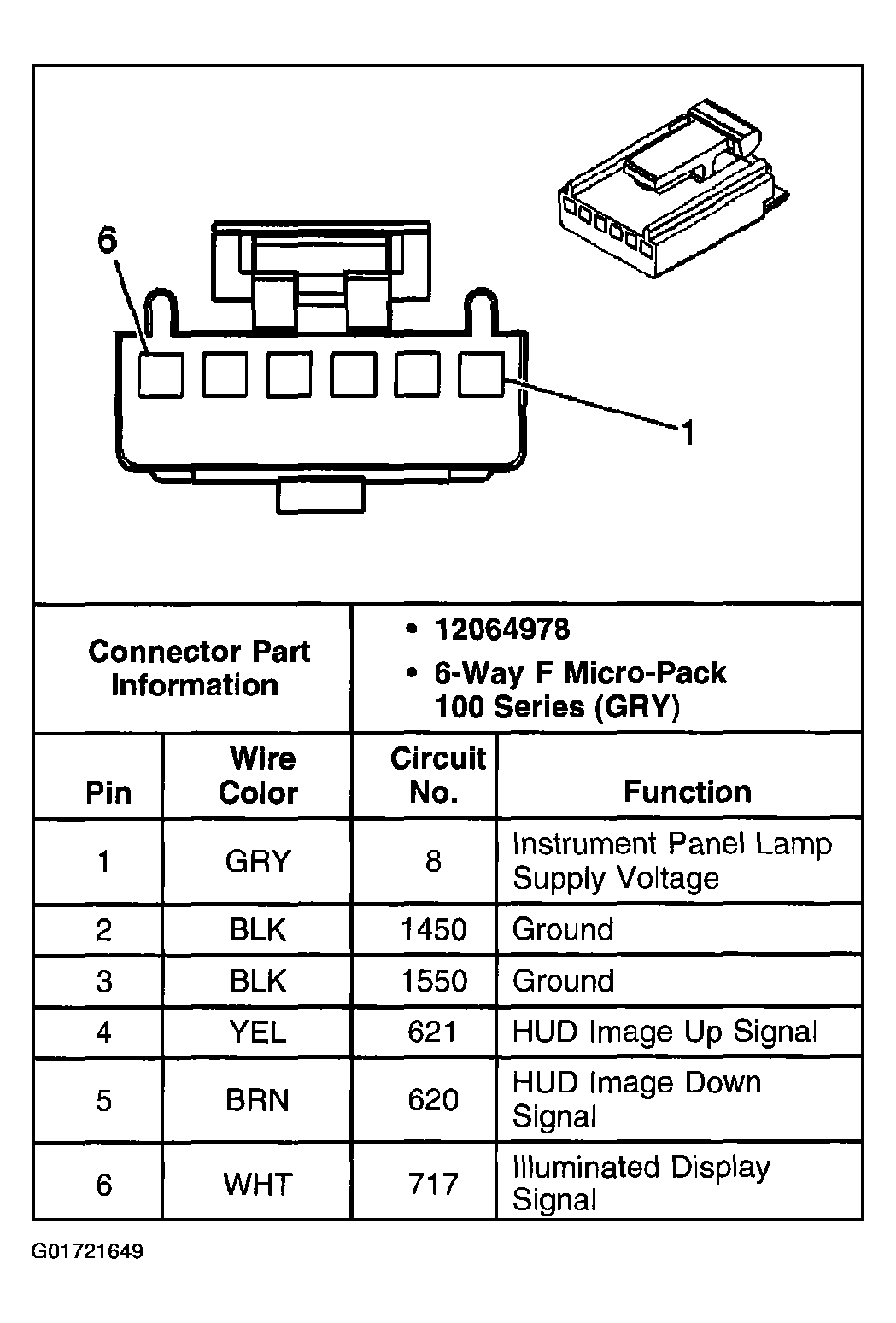

Fig 1: Head Up Display (HUD) Switch Connector End View

G01721649

Courtesy of GENERAL MOTORS CORP.
