A/T Shift Lock Control Solenoid Connector End View - Buick

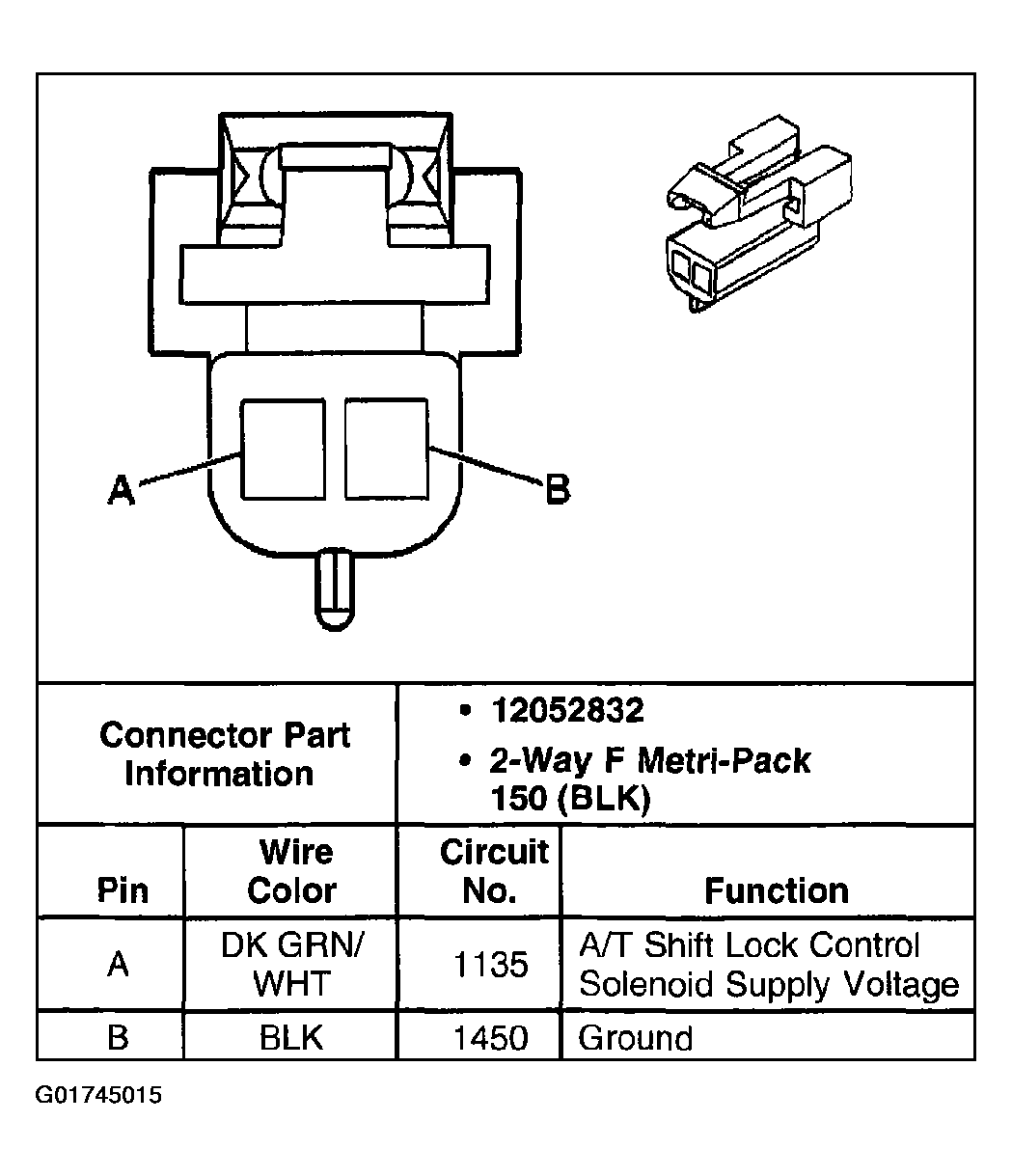

Fig 1: A/T Shift Lock Control Solenoid - Buick

G01745015

Courtesy of GENERAL MOTORS CORP.
