Installation Procedure

  1. Connect the rear wheel speed sensor jumper harness connector (1) to the wheel speed sensor, located next to the rear strut (2).

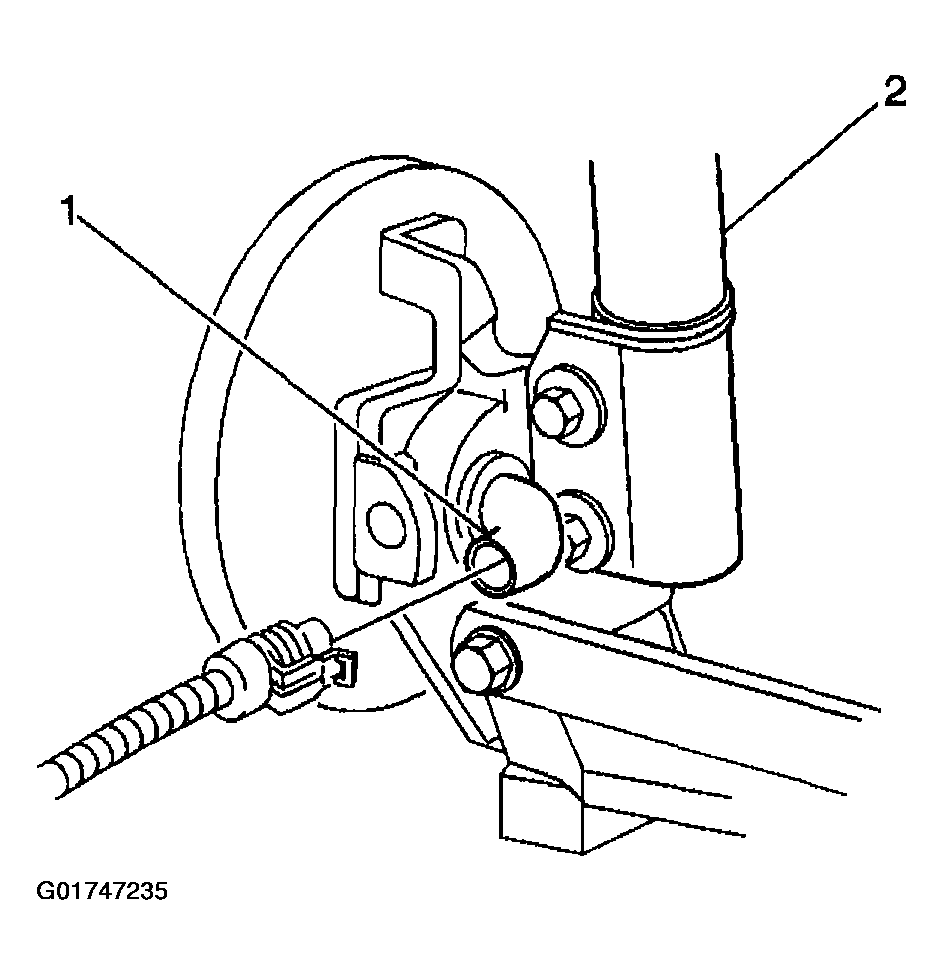

    Fig 1: Connecting Rear Wheel Speed Sensor Jumper Harness Connector
    G01747235Courtesy of GENERAL MOTORS CORP.
  2. Install the rear wheel speed jumper harness (1) into the retaining clips (2).
  3. Connect the rear wheel speed sensor jumper harness connector to the pass thru connector.
  4. Lower the vehicle.
  5. Turn the ignition switch to the RUN position, with the engine off.
  6. Perform the diagnostic system check. Refer to Diagnostic System Check - ABS .

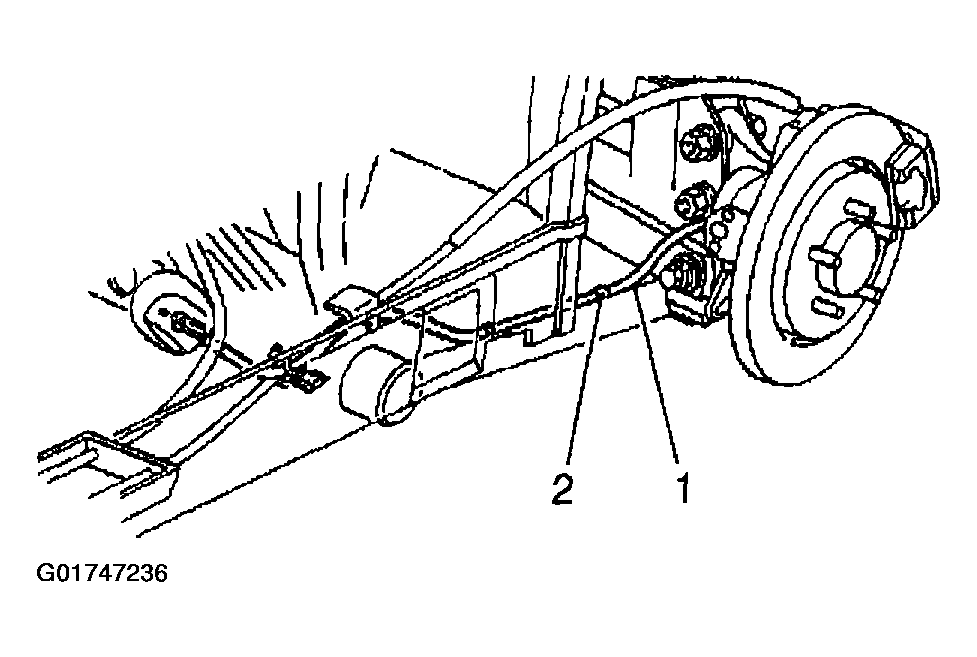

    Fig 2: Installing Rear Wheel Speed Jumper Harness Into Retaining Clips
    G01747236Courtesy of GENERAL MOTORS CORP.
