Installation Procedure

  1. Install the front seat to the studs on the floor pan.
  2. Connect the seat electrical connectors.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the nuts to the seat floor pan studs.

    Tighten

    Tighten the front bucket seat adjuster-to-floor pan nuts to 50 N.m (37 lb ft).

    Inspect the front bucket seat for proper operation and adjustment.

  4. Enable the SIR system. Refer to ACTIVATING SYSTEM .

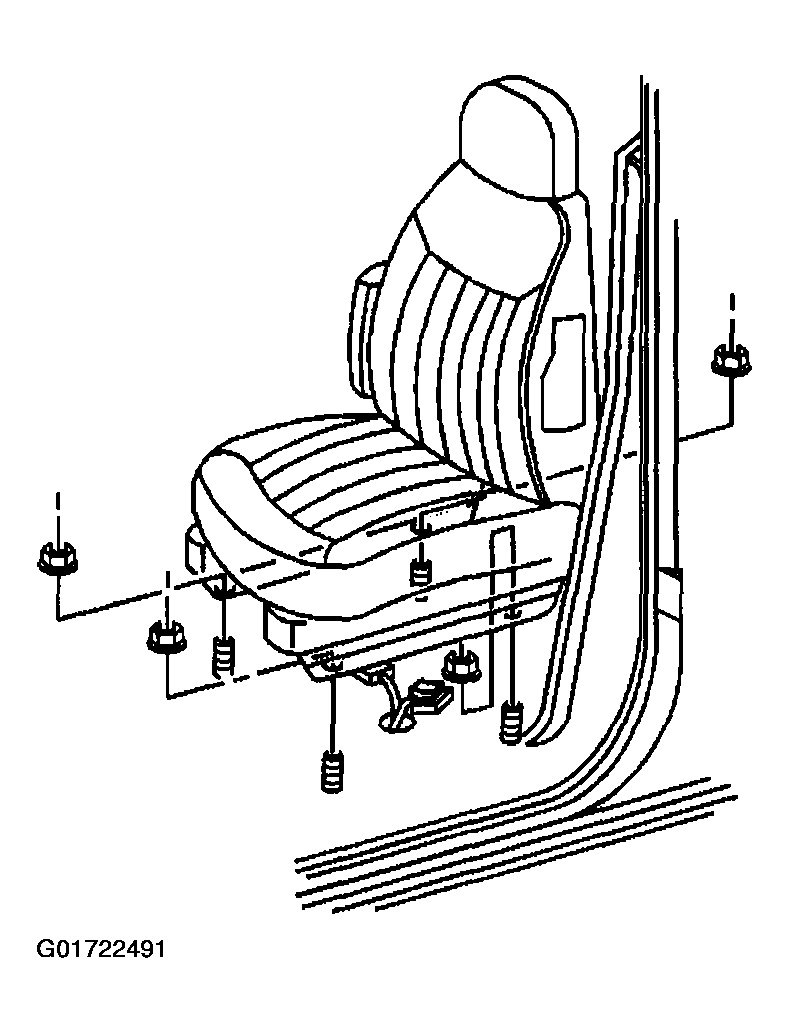

    Fig 1: Installing Front Seat Adjuster Nuts And Electrical Connectors
    G01722491Courtesy of GENERAL MOTORS CORP.
