Removal Procedure

  1. Remove the front bucket seat. Refer to Seat Replacement - Bucket .
  2. Remove the outer trim panel from the front seat cushion. Refer to Seat Cushion Outer Trim Panel Replacement - Front Seat .
  3. Remove the inner trim panel from the front seat cushion. Refer to Seat Cushion Inner Trim Panel Replacement - Front .
  4. Remove the cable ends from the seat back recliner hinge.

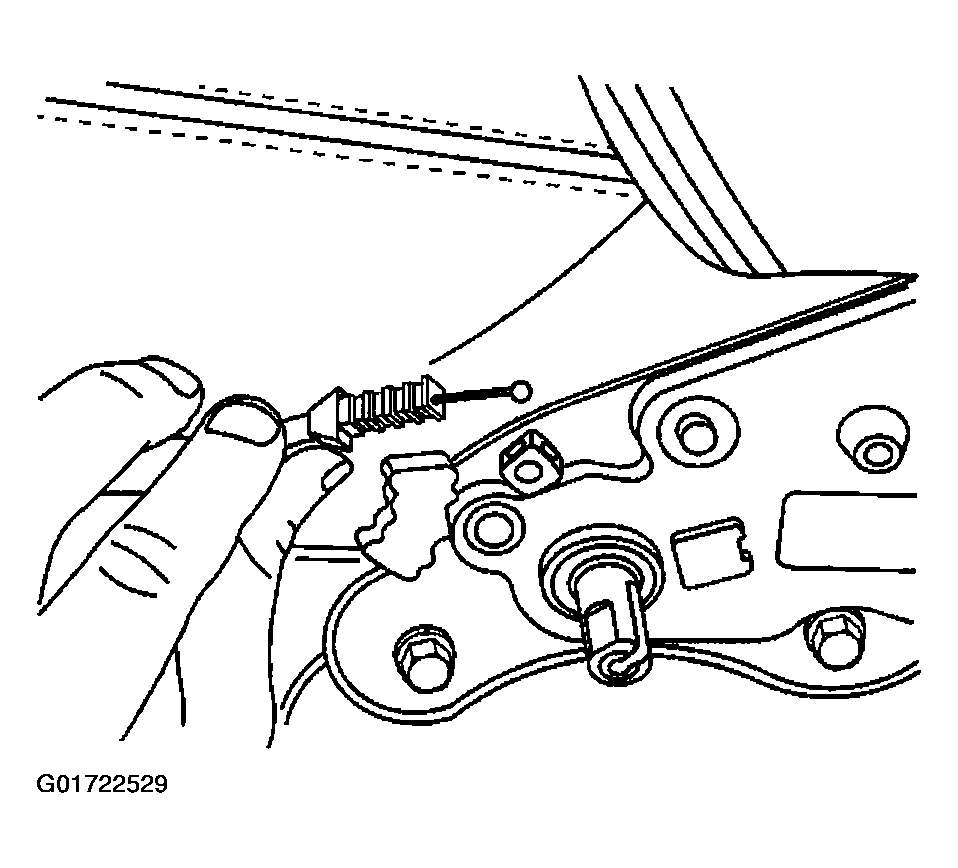

    Fig 1: Removing Recliner Cable Ends
    G01722529Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connector harness for the side air bag from the front seat frame.

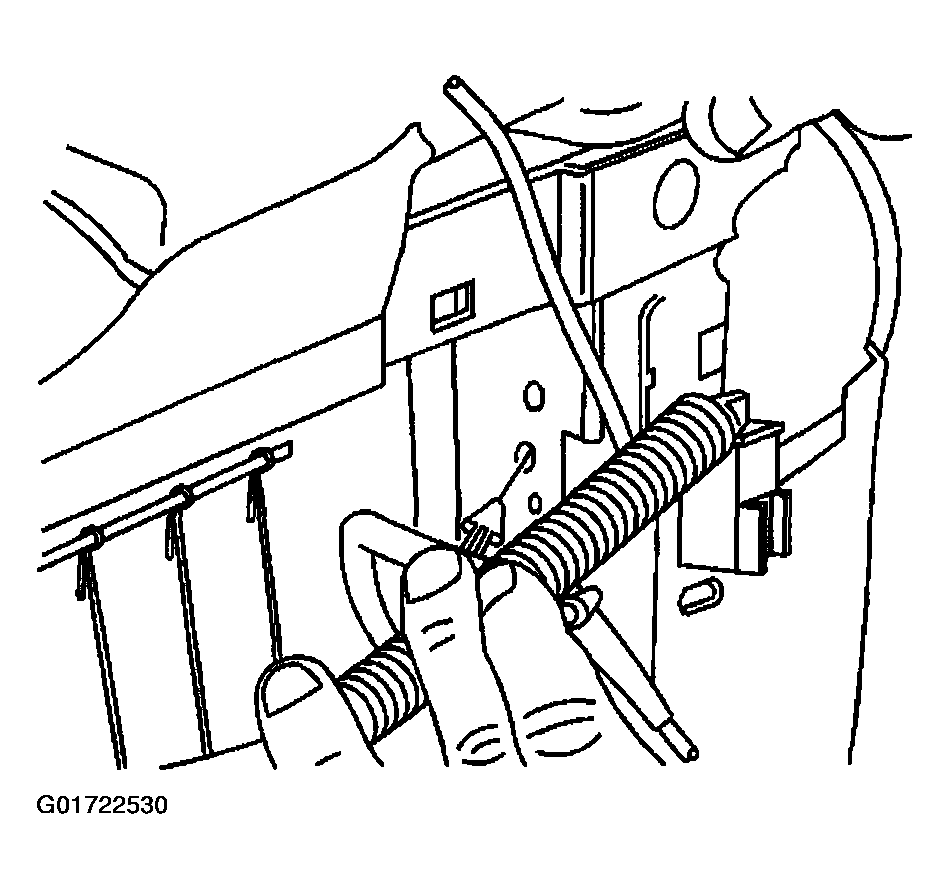

    Fig 2: Disconnecting Side Air Bag Electrical Harness
    G01722530Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the electrical connector for the side air bag from the front seat frame.
  7. Disconnect the heated seat electrical connector.

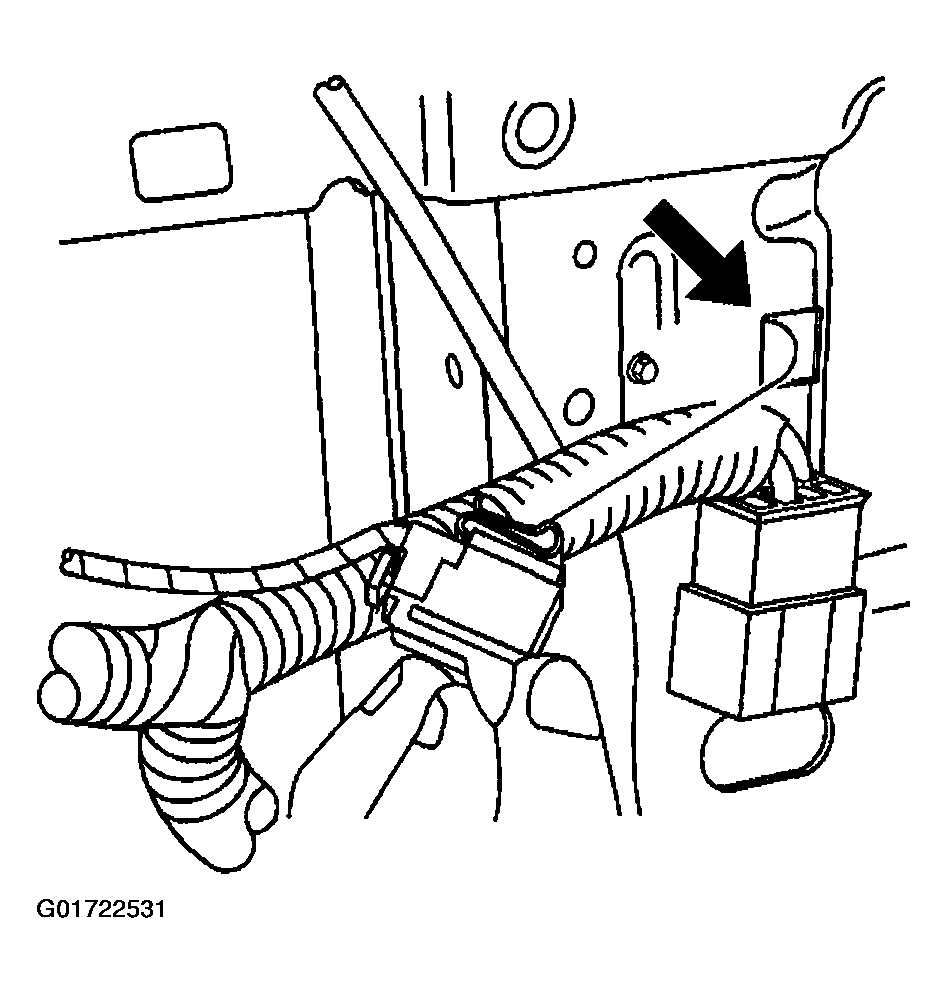

    Fig 3: Disconnecting Side Air Bag Electrical Connector
    G01722531Courtesy of GENERAL MOTORS CORP.
  8. Remove the left front bolts from the seat back recliner hinge.

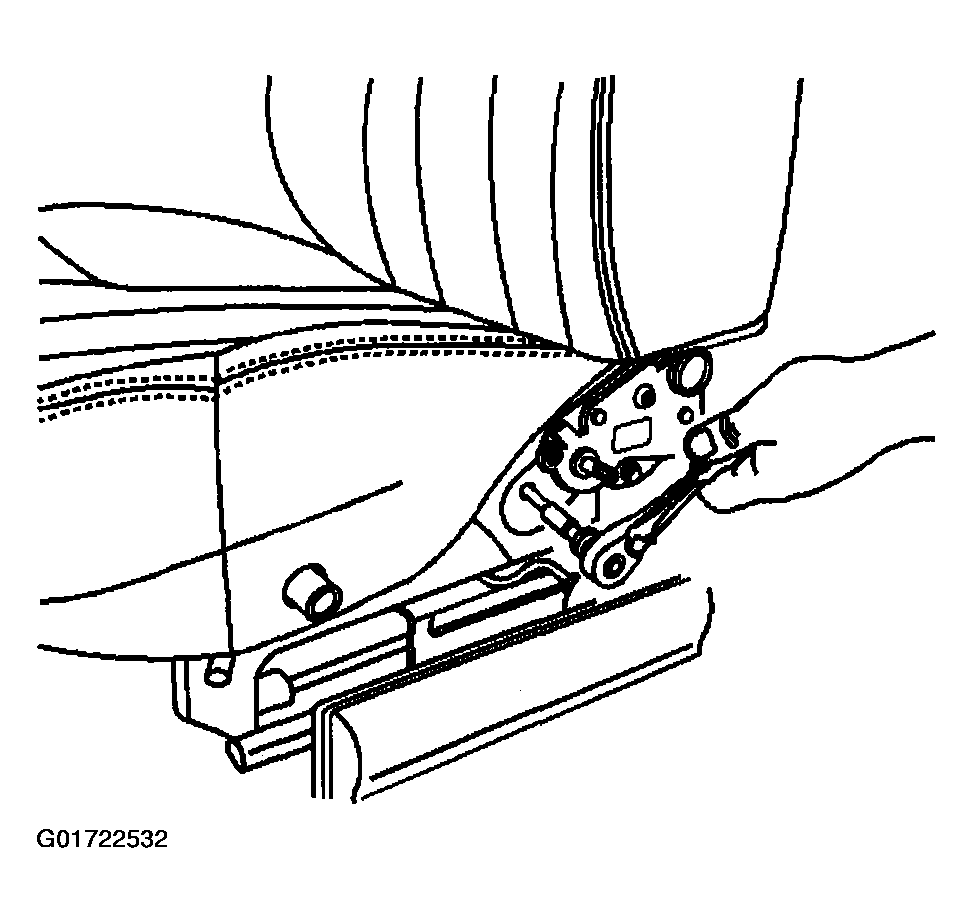

    Fig 4: Removing Seat Back Recliner Hinge Left Front Bolts
    G01722532Courtesy of GENERAL MOTORS CORP.
  9. Remove the right front bolts from the seat back recliner hinge.

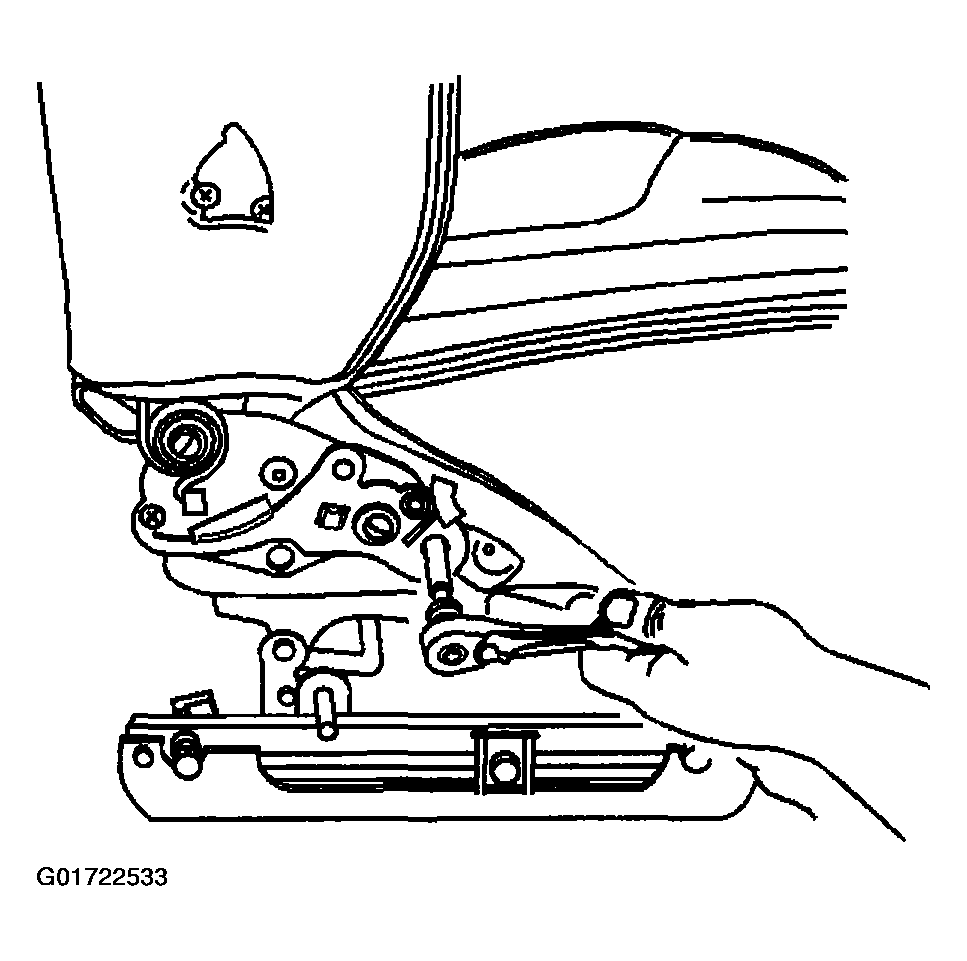

    Fig 5: Removing Seat Back Recliner Hinge Right Front Bolts
    G01722533Courtesy of GENERAL MOTORS CORP.
  10. Remove the back from the seat cushion frame. Set the back face down on the front seat cushion.
  11. Remove the heated seat wiring harness and the side air bag wire harness. Remove the wiring harnesses through the front seat cushion and frame area.
  12. Remove the seat back from the seat cushion.

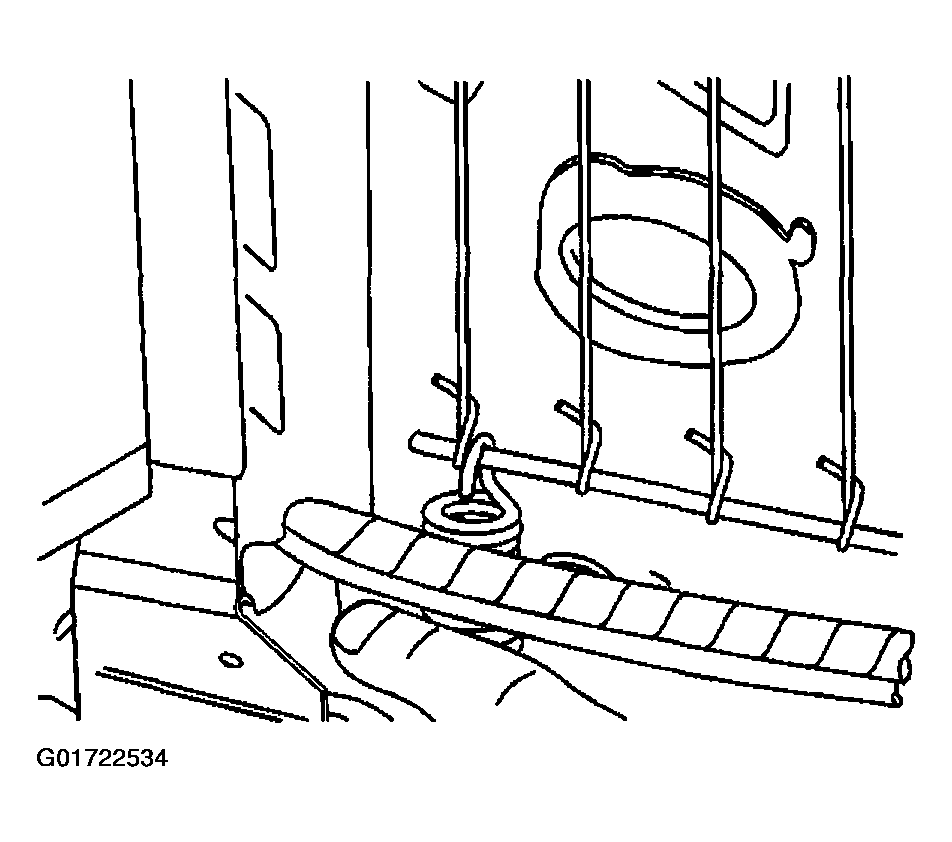

    Fig 6: Removing Heated Seat And Side Air Bag Wiring Harnesses
    G01722534Courtesy of GENERAL MOTORS CORP.
