Home >> Pontiac >> 2002 >> Aztek AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Theft Deterrent System >> Component Locator >> Theft Deterrent System Component Views

Theft Deterrent System Component Views

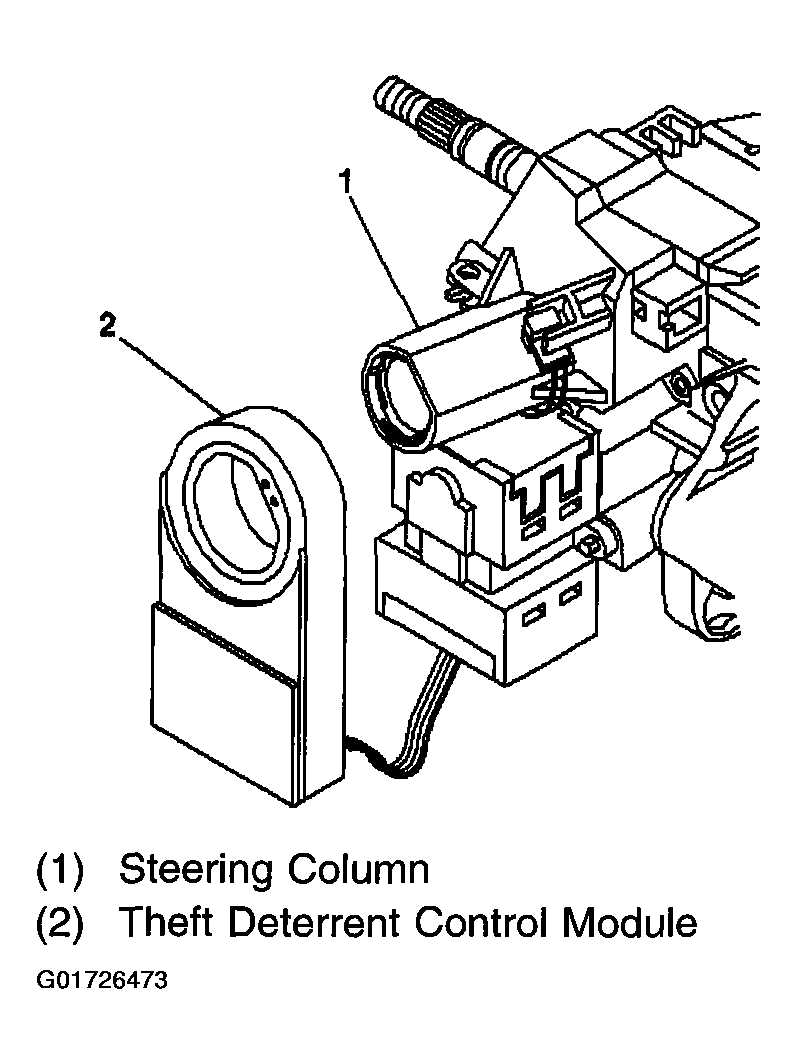

Fig 1: Theft Deterrent Control Module Component Views

G01726473

Courtesy of GENERAL MOTORS CORP.

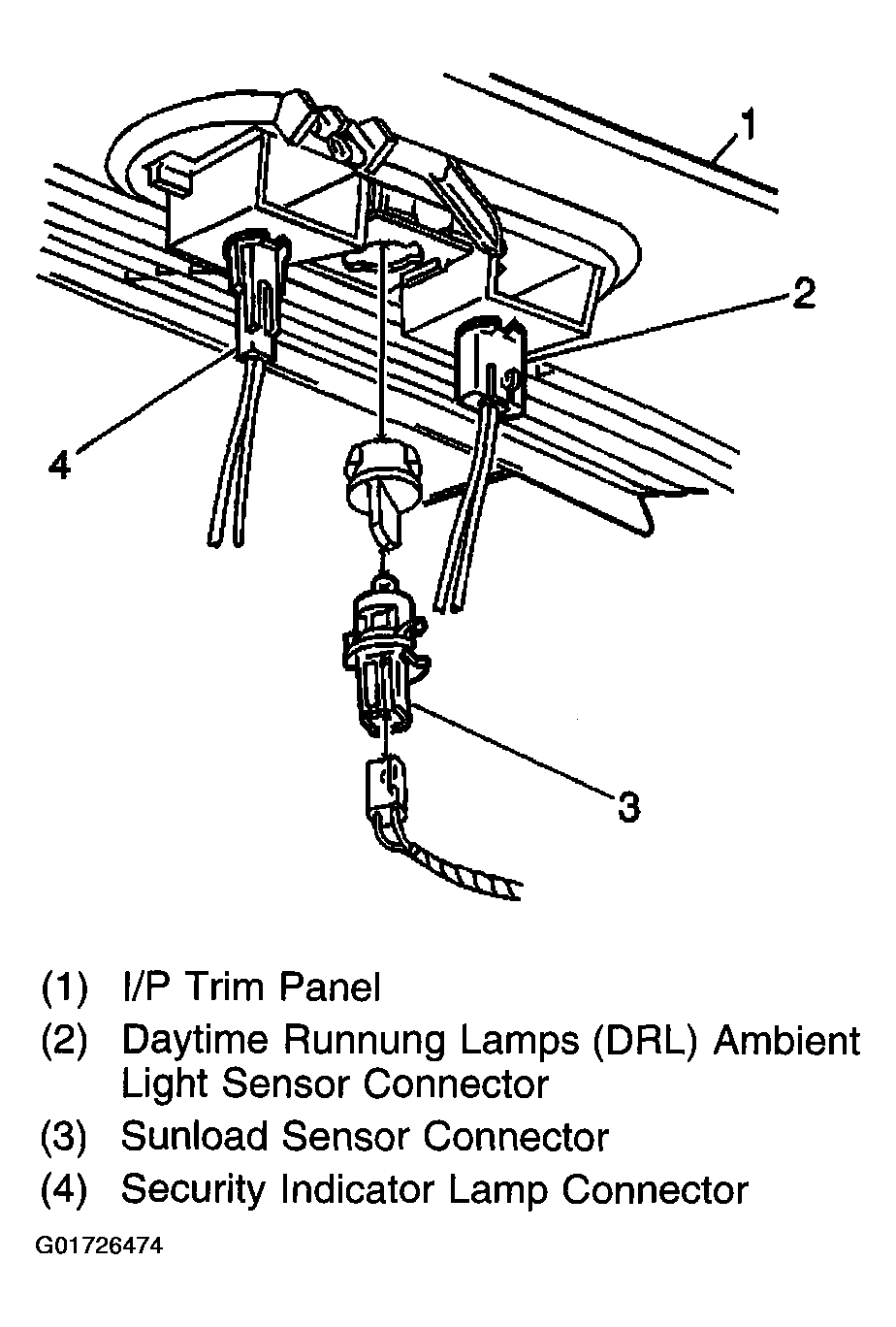

Fig 2: I/P Trim Panel Component Views

G01726474

Courtesy of GENERAL MOTORS CORP.
