Installation Procedure

  1. Align the rear cargo audio control to the trim panel.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

    Fig 1: Installing Rear Cargo Audio Control
    G01721529Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector.
  4. Install the rear trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .

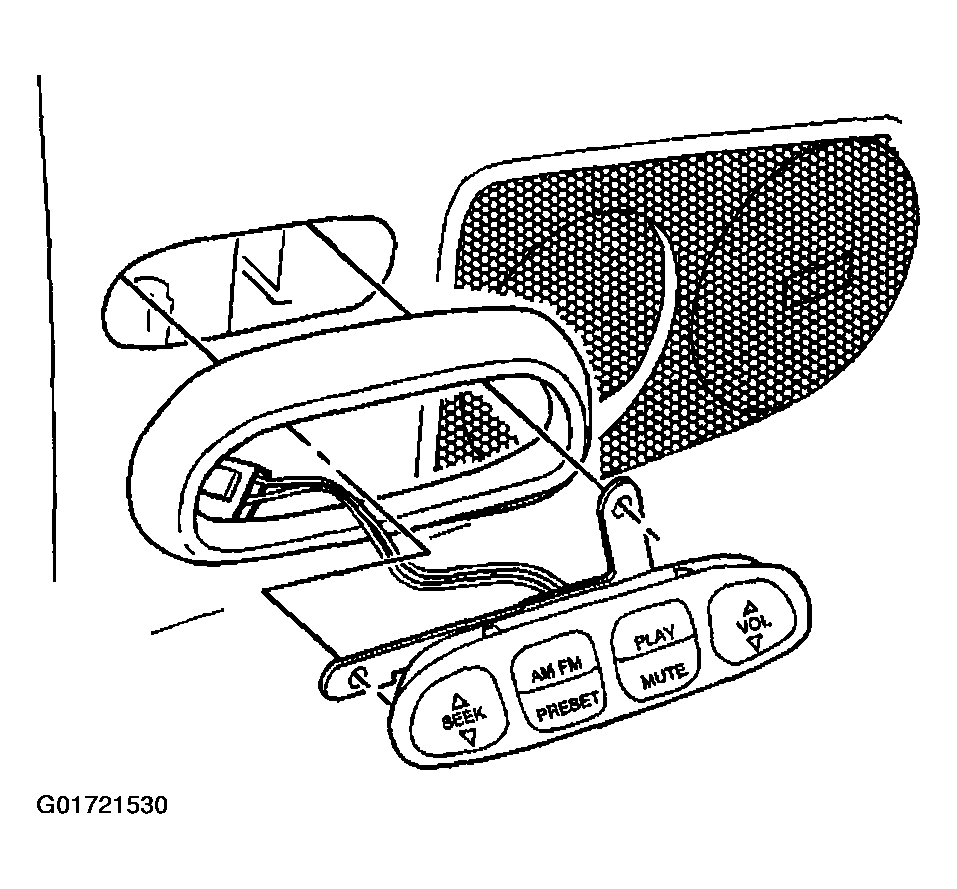

    Fig 2: Installing Rear Cargo Audio Control Screws
    G01721530Courtesy of GENERAL MOTORS CORP.
