Installation Procedure

Install the following components to the vehicle:
- The antenna cable
- The antenna cable extension

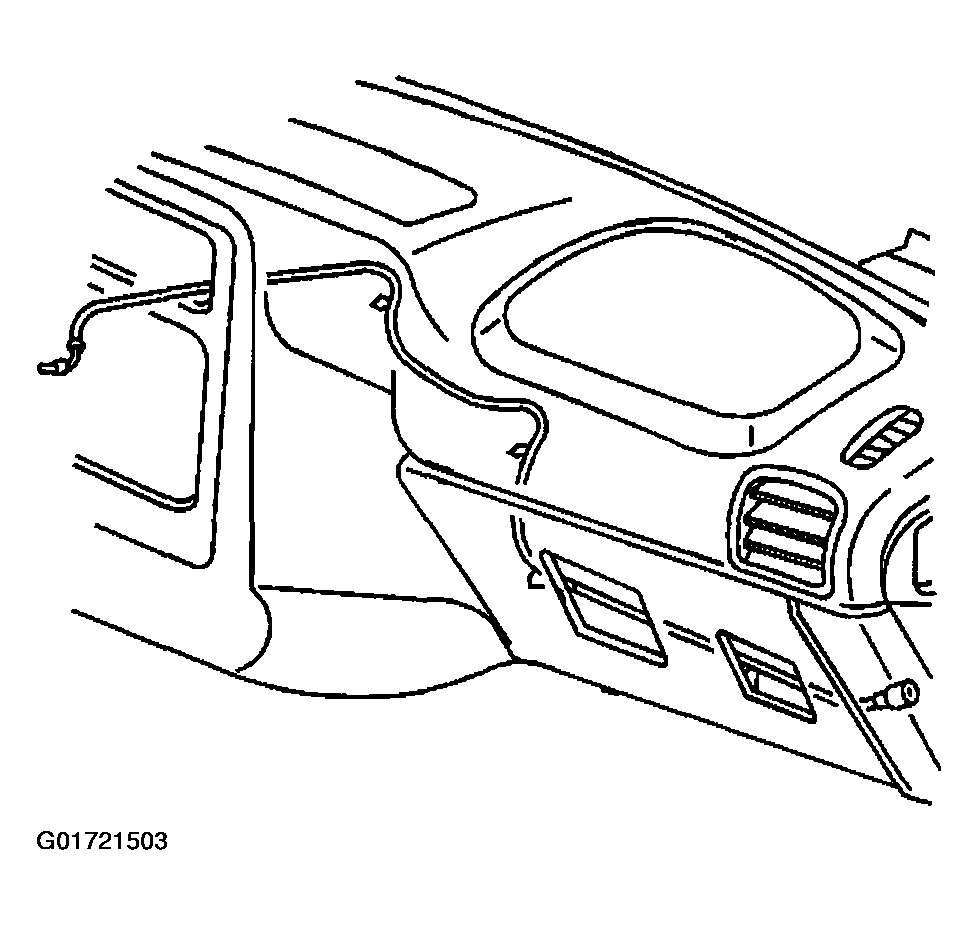

Fig 1: Installing Antenna Cable & Extension
Courtesy of GENERAL MOTORS CORP.
Install the antenna cable to the instrument panel carrier.

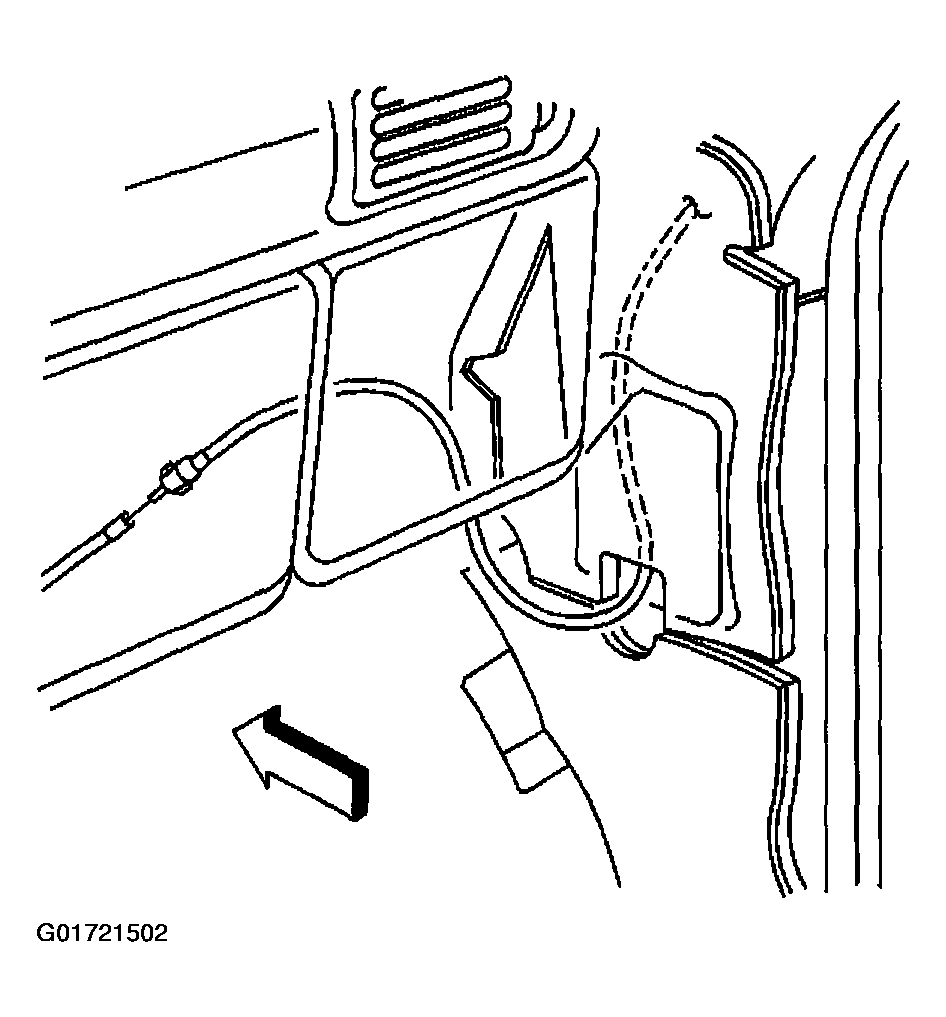

Fig 2: View Of Antenna Cable
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the bolt which secures the antenna cable extension to the roof.
Tighten

Tighten the bolt to 3.2 N.m (28 lb in).
For the Rendezvous, Install the assist handle to the headliner. Refer to ASSIST HANDLE REPLACEMENT (AZTEK) or ASSIST HANDLE REPLACEMENT (RENDEZVOUS) .
Install the trim panel at the right cowl side. Refer to TRIM PANEL REPLACEMENT - COWL SIDE .
Install the garnish molding to the windshield. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILL .

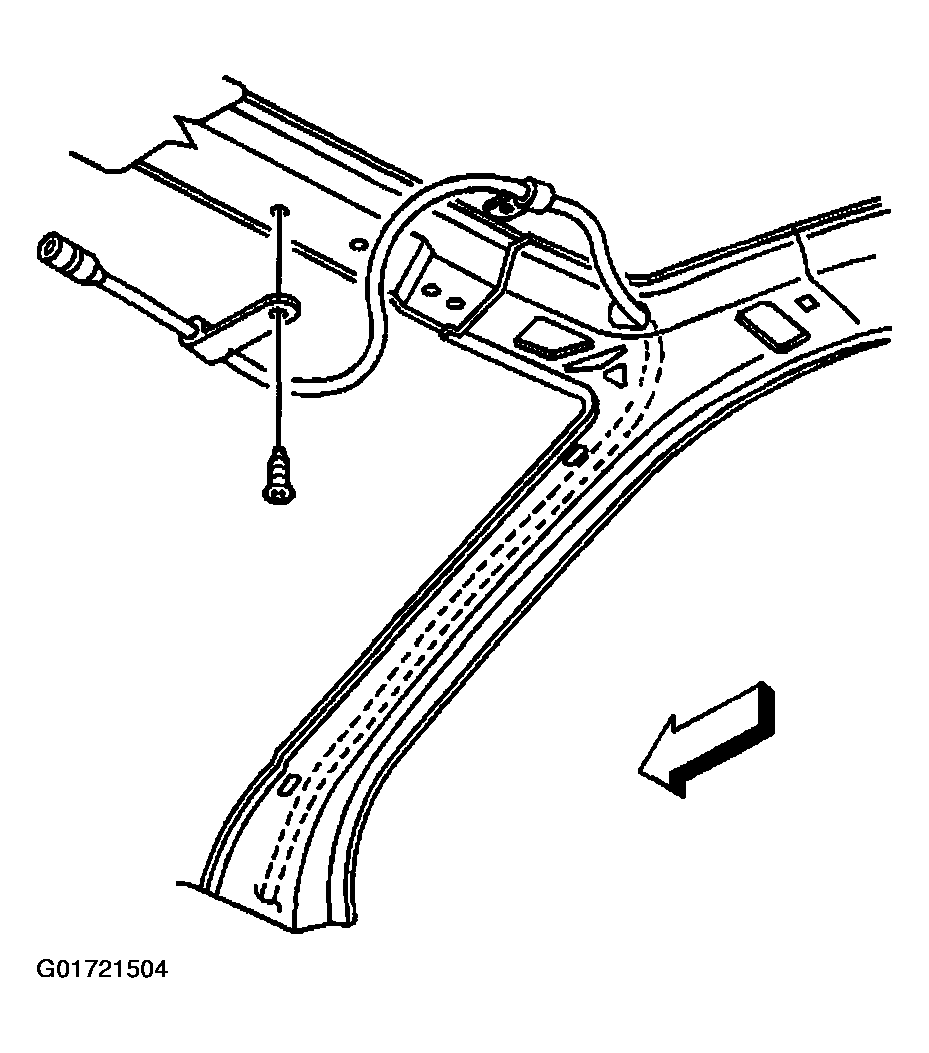

Fig 3: Installing Antenna Cable Extension Bolt
Courtesy of GENERAL MOTORS CORP.
Install the sunshade anchor. Refer to SUNSHADE ANCHOR REPLACEMENT .
Install the sunshade. Refer to SUNSHADE REPLACEMENT .
Install the radio. Refer to Radio Replacement .
