Scan Tool Data List
Scan Tool Data List

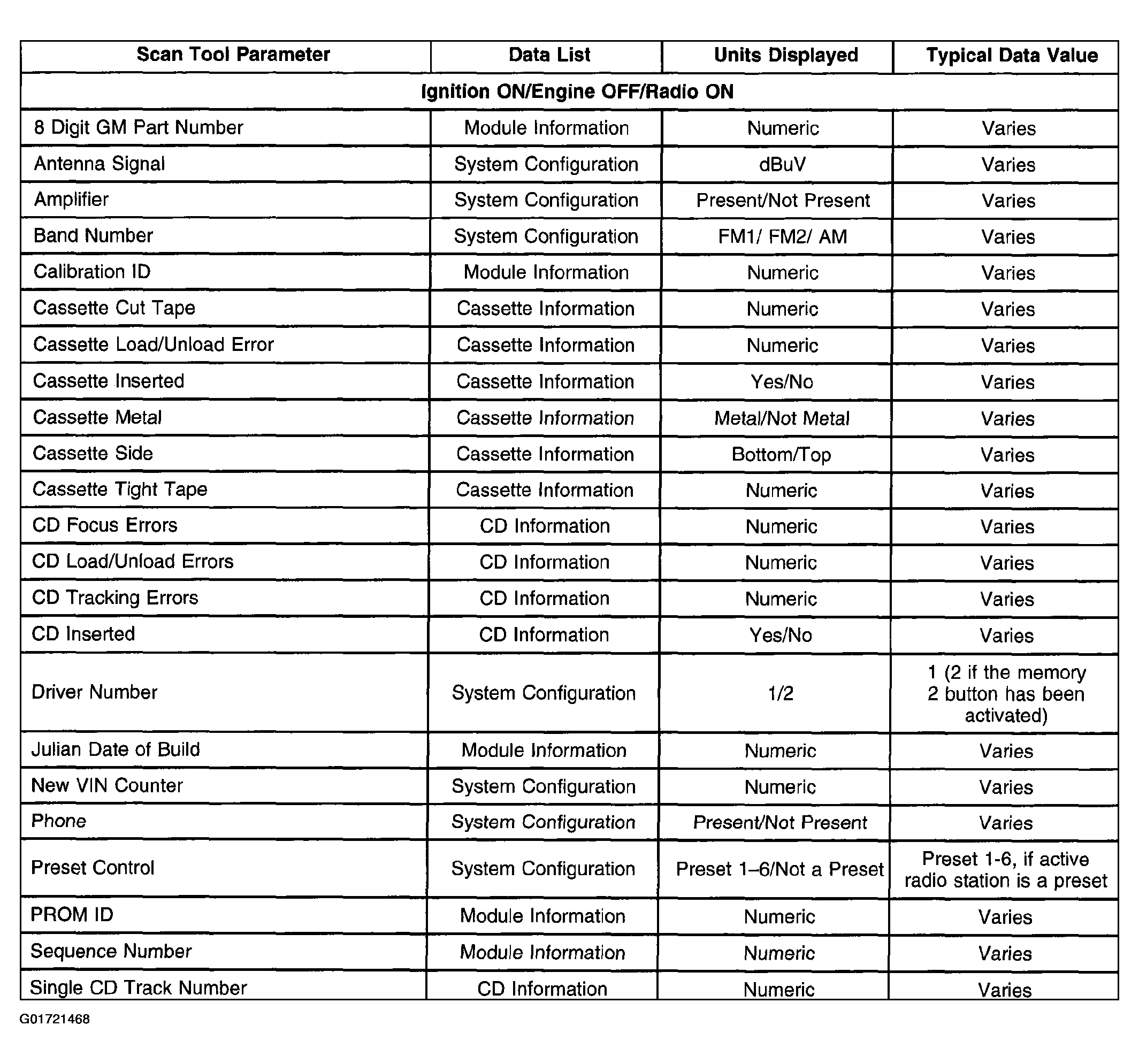

Fig 1: Radio / Integrated Radio Control 1 Of 2 (IRC)
Courtesy of GENERAL MOTORS CORP.

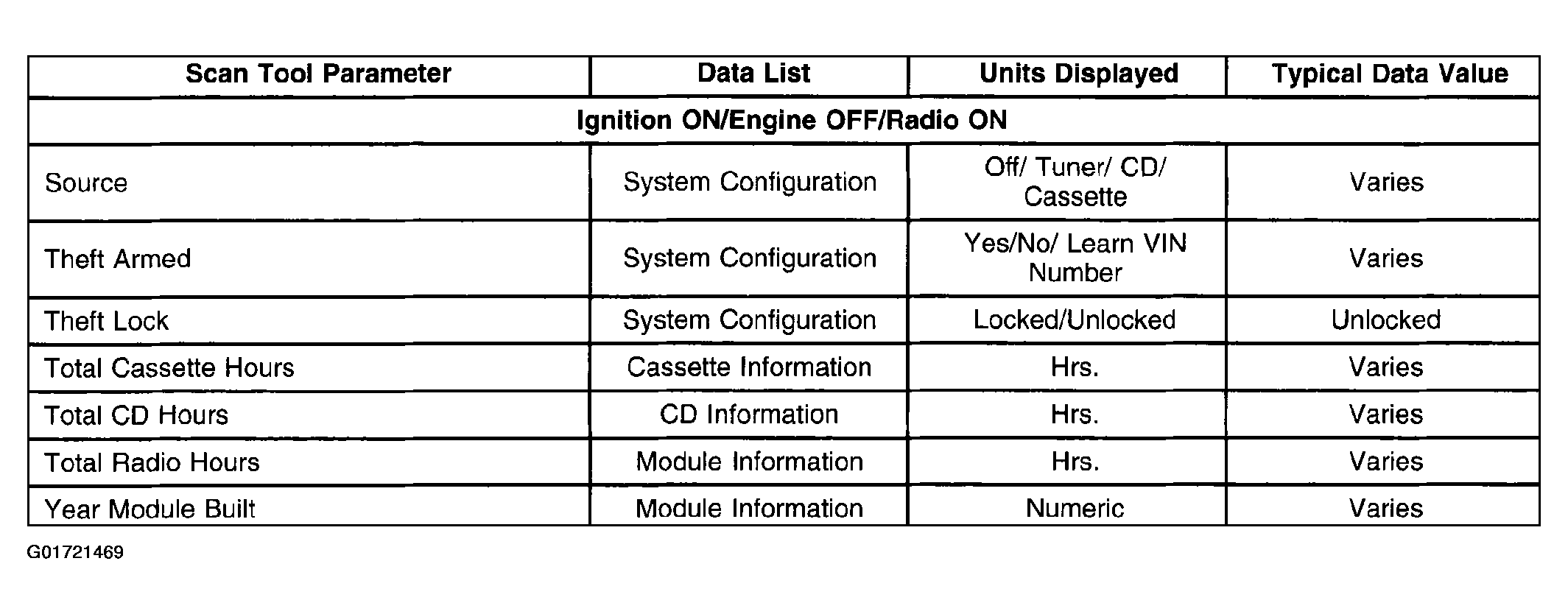

Fig 2: Radio / Integrated Radio Control 2 Of 2 (IRC)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
