Installation Procedure

Record the 11-digit ESN number from the label on the new part.
Install the VCU to the bracket using the clip-on strap.
Reconnect the cell antenna coaxial cable to the VCU.

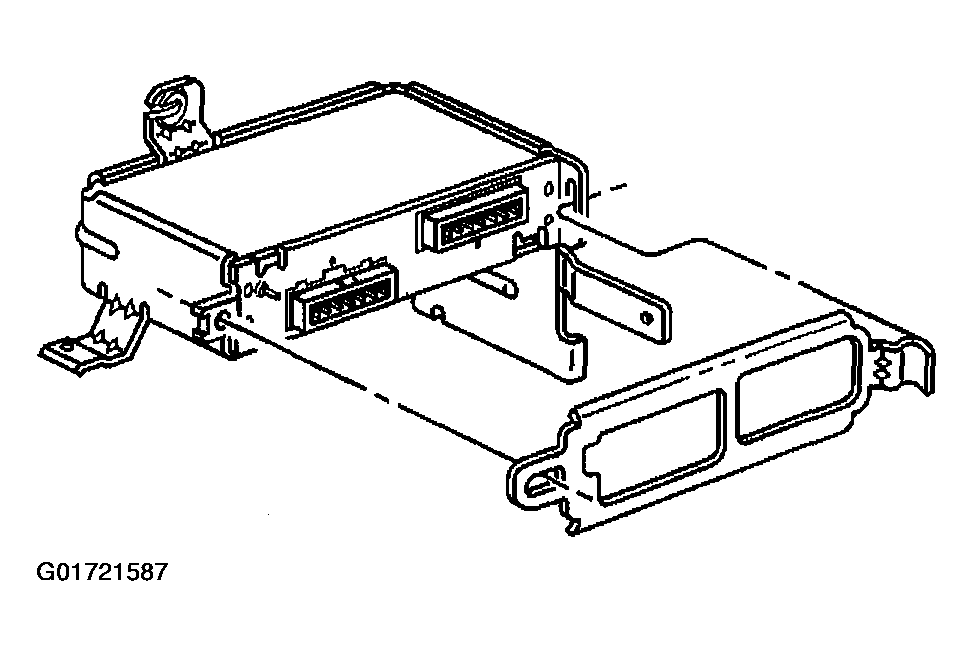

Fig 1: Installing VCU To Bracket Using Clip-On Strap
Courtesy of GENERAL MOTORS CORP.
Reconnect the electrical connectors.

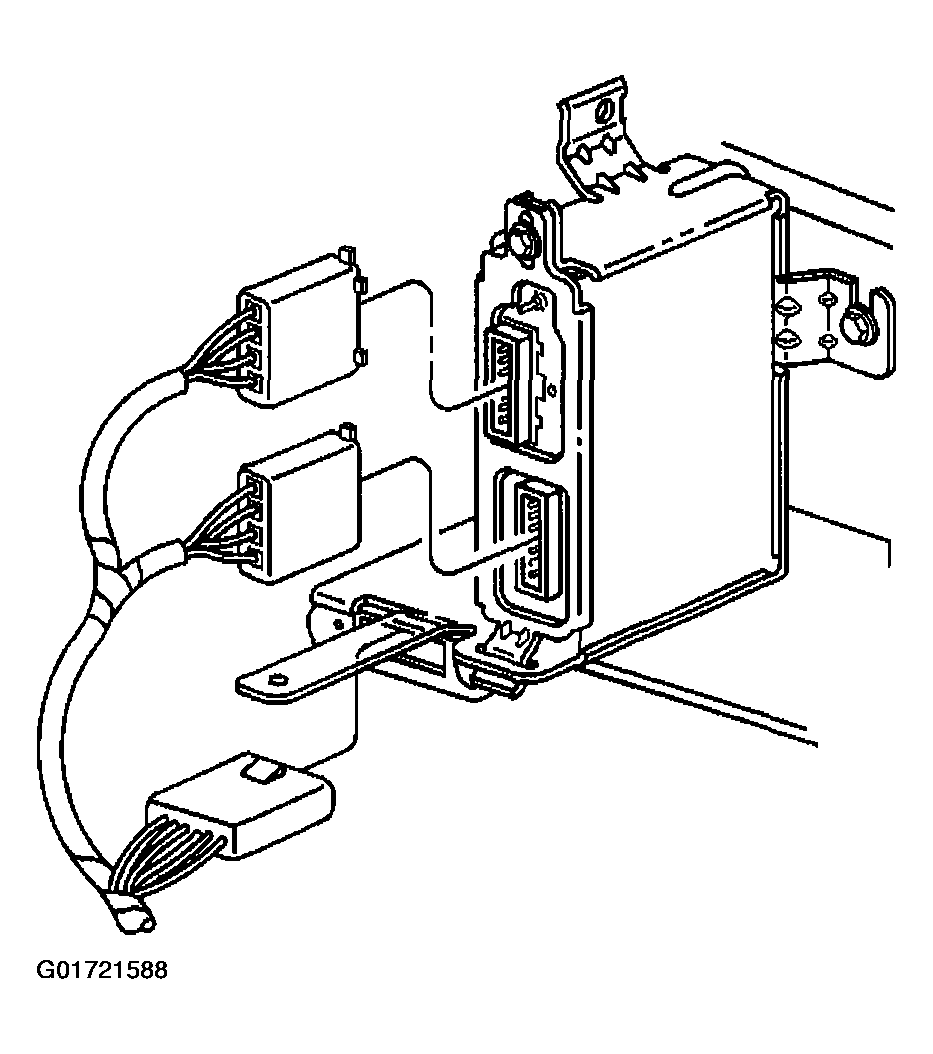

Fig 2: Reconnecting Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Secure the VCU bracket to the instrument panel metal brace.
Press and hold the "end call" button, which is a black button with a white dot.
The OnStar® status light will change from green to red to green.
Contact the OnStar® Dealer support line by pressing the blue OnStar® button twice.
The 11-digit ESN number will be needed by the OnStar® advisor.

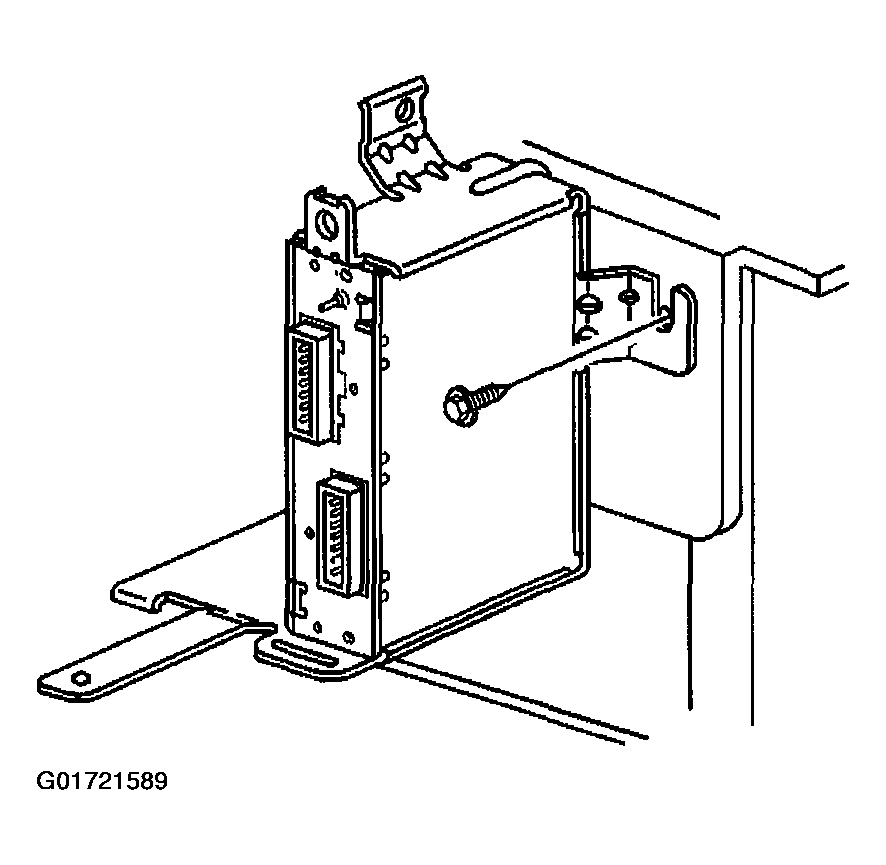

Fig 3: Installing VIU Bracket To Brace Screws
Courtesy of GENERAL MOTORS CORP.
