Removal Procedure

  1. Remove the overhead console door (1).
  2. Reach your hand through the access opening and disconnect the microphone connector (2) from the jumper harness.
  3. Unsnap the microphone bracket from the overhead console.
  4. Disconnect the microphone 2-way connector from the mating 2-way connector.

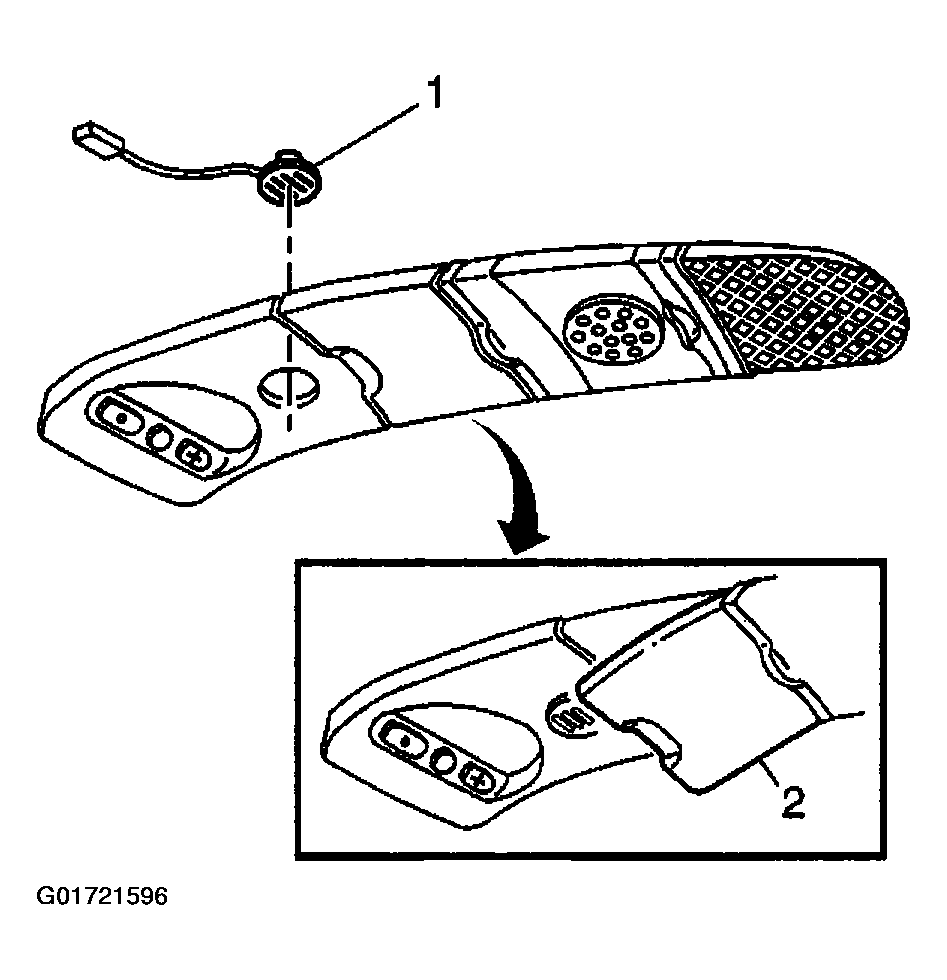

    Fig 1: Disconnecting Microphone Connector
    G01721596Courtesy of GENERAL MOTORS CORP.
