Installation Procedure

  1. Clean the glass at the installation location inside and outside with an alcohol wipe.
    Fig 1: Cleaning Glass With Alcohol Wipe
    G01721566Courtesy of GENERAL MOTORS CORP.
  2. Apply the mast assembly to the outside of the glass, below the blackout area.
  3. Obtain the pre-wired coax cable from behind the C-pillar trim.
  4. Connect the coaxial cable to the cell antenna base.
  5. Apply the cell antenna base to the inside of the glass.
  6. Install the mirror to the outer antenna placement.

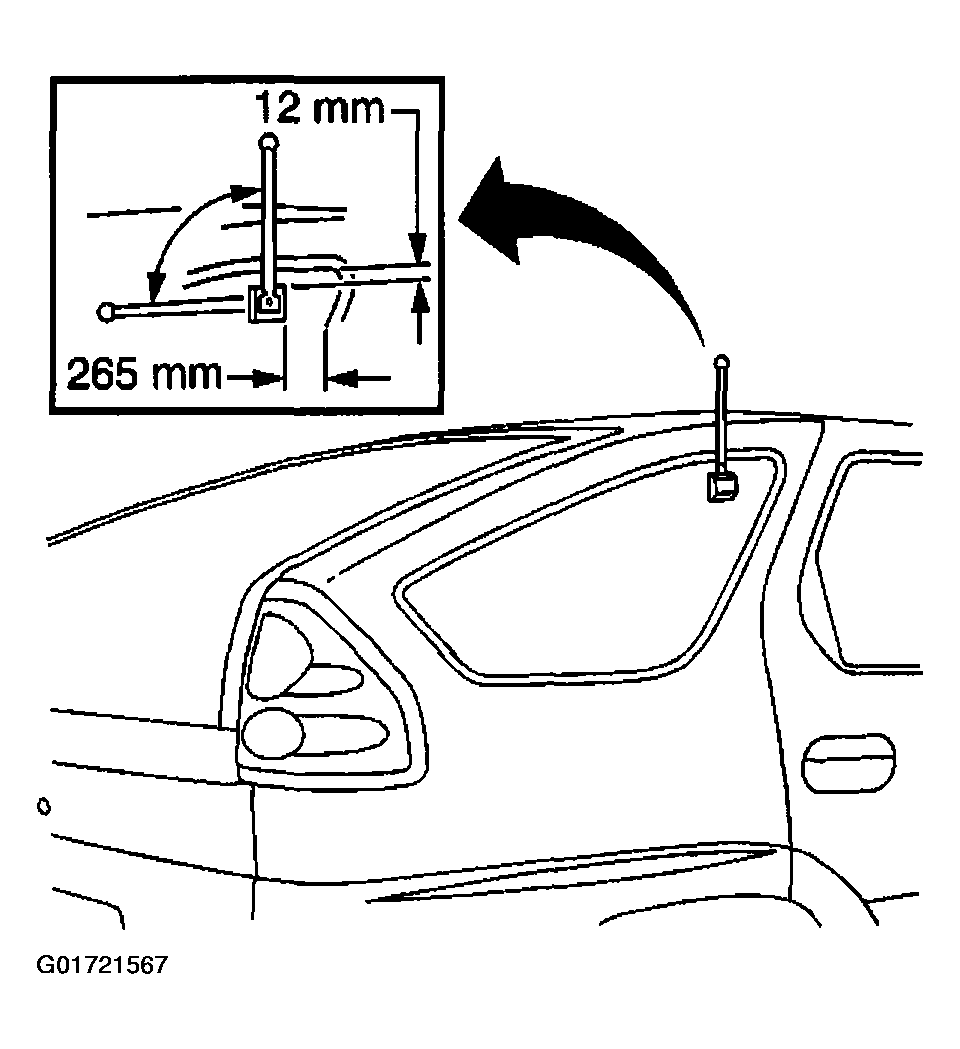

    Fig 2: Applying Cell Antenna Base
    G01721567Courtesy of GENERAL MOTORS CORP.
