Removal Procedure

  1. Remove the GPS antenna from the windshield.

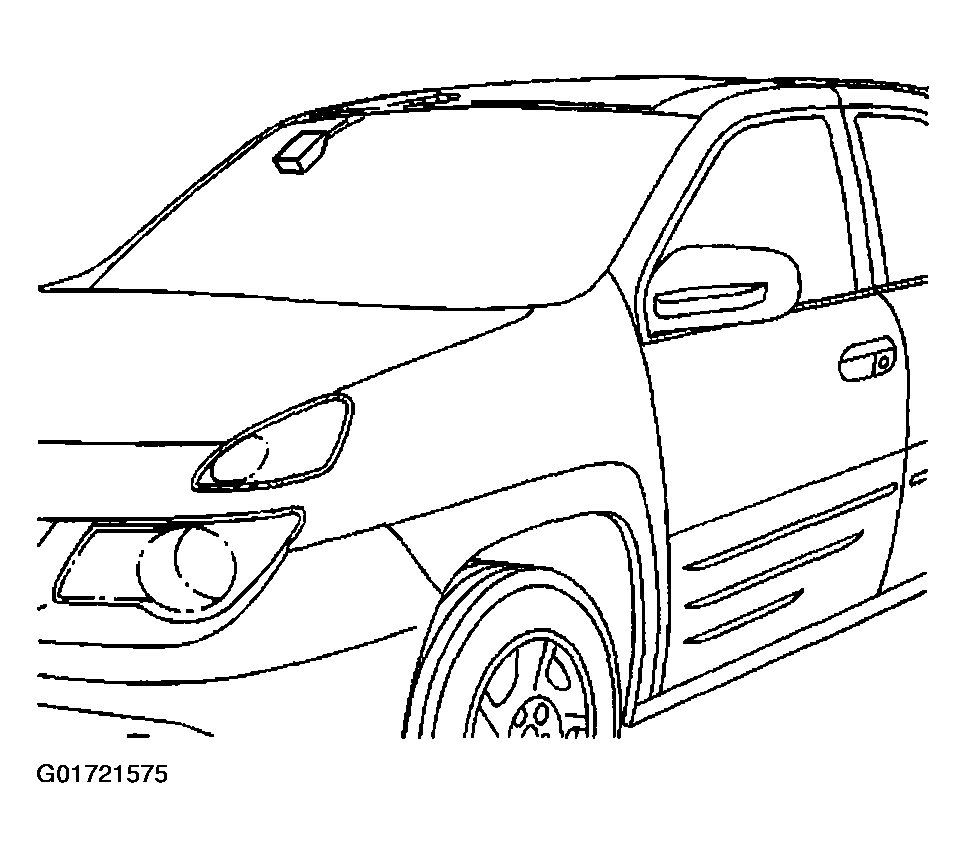

    Fig 1: Removing GPS Antenna From Windshield
    G01721575Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the antenna cable (3) from the windshield.

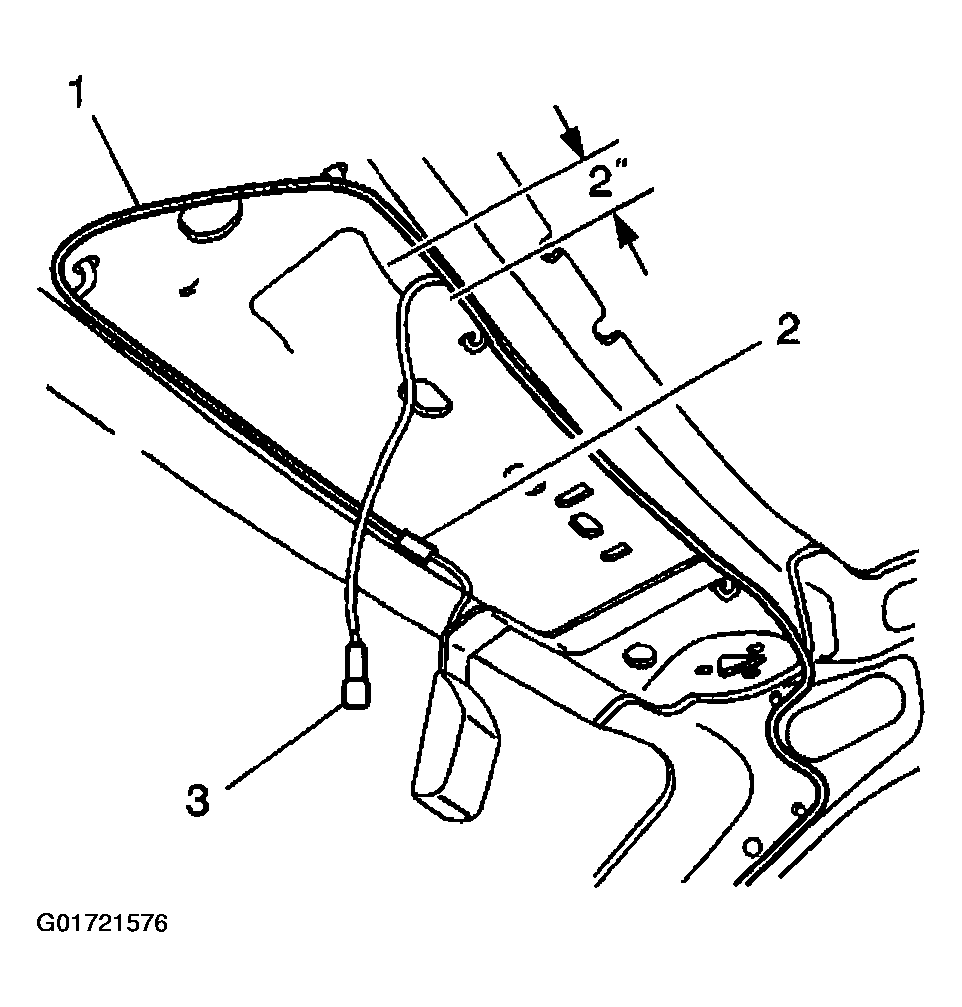

    Fig 2: Disconnecting GPS Antenna Electrical Connector
    G01721576Courtesy of GENERAL MOTORS CORP.
  3. Clean the old residue from the windshield using a razor blade and isopropyl alcohol.
    Fig 3: Cleaning Old Residue From Window
    G01721577Courtesy of GENERAL MOTORS CORP.
