Removal Procedure

  1. Remove the cable from the throttle lever and accelerator control cable bracket.

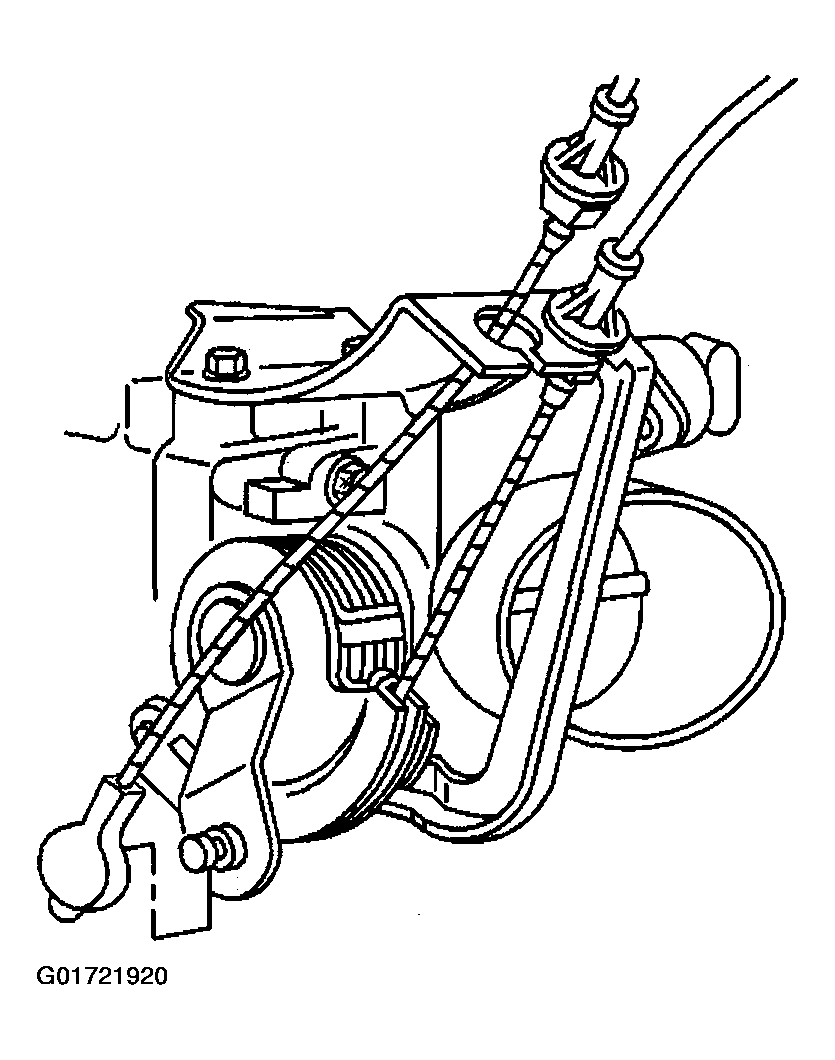

    Fig 1: Removing Cable From Throttle Lever And Accelerator Control Cable Bracket
    G01721920Courtesy of GENERAL MOTORS CORP.
  2. Rotate the cable counter clockwise at the module in order to remove the cable from the module.
  3. Remove the cable from the module band.
    Fig 2: Removing Cable From Module Band
    G01721921Courtesy of GENERAL MOTORS CORP.
