Removal Procedure

  1. Remove the bolts/screws from the data link connector.
  2. Remove the lower data link connector.

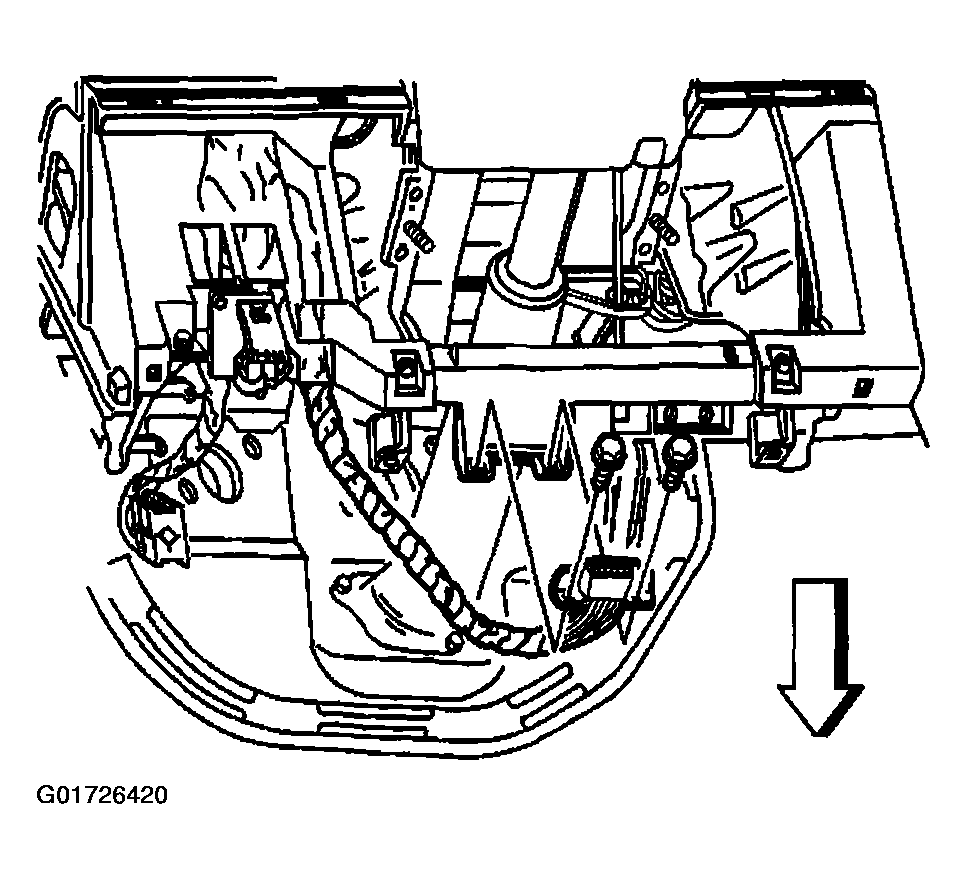

    Fig 1: Removing Data Link Connector And Screws
    G01726420Courtesy of GENERAL MOTORS CORP.
