Turn Signal/Multifunction Switch C3 Connector End View

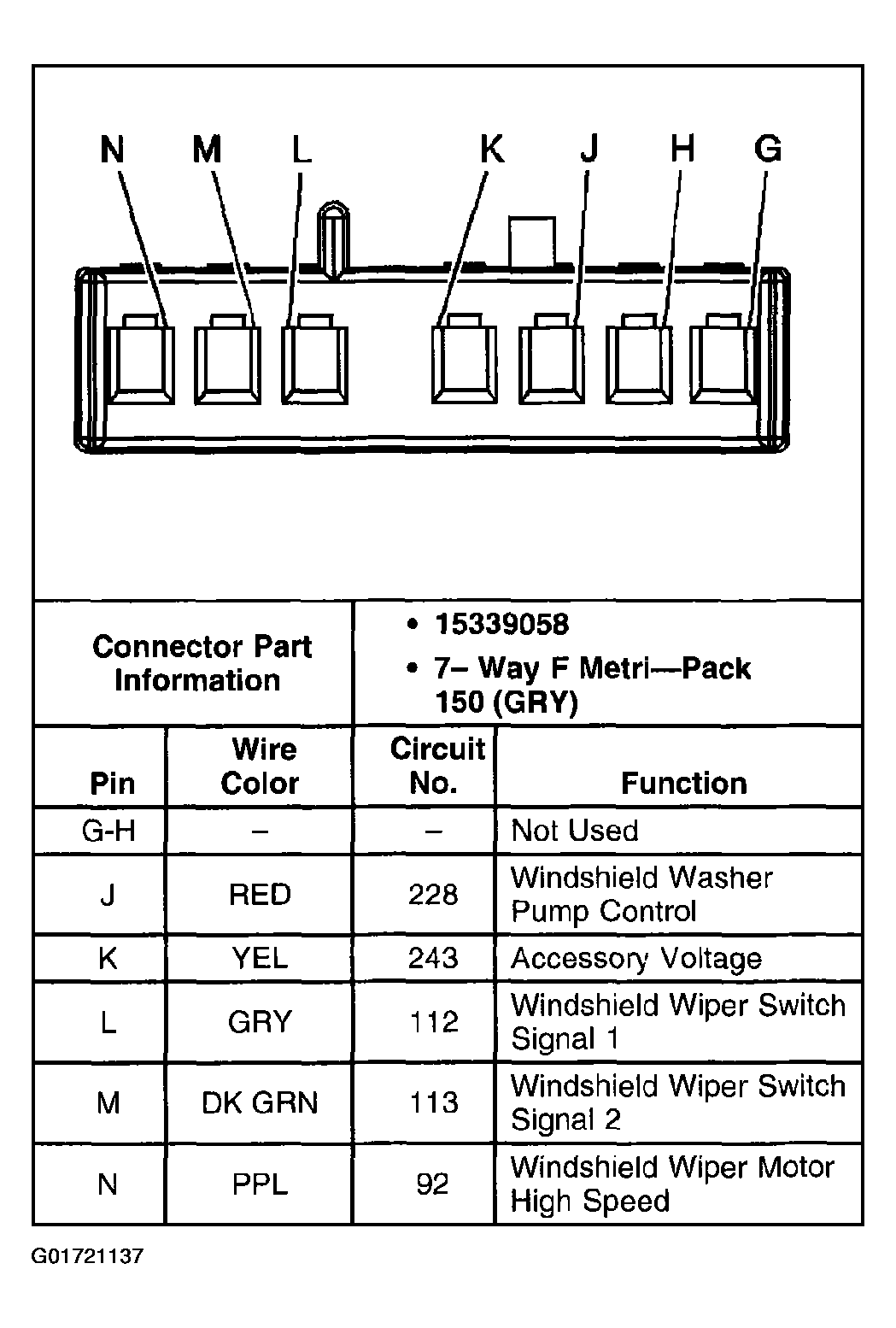

Fig 1: Turn Signal/Multifunction Switch C3 Connector End View
G01721137Courtesy of GENERAL MOTORS CORP.


Fig 1: Turn Signal/Multifunction Switch C3 Connector End View
G01721354Courtesy of GENERAL MOTORS CORP.
