Theft Deterrent Control Module Connector End View

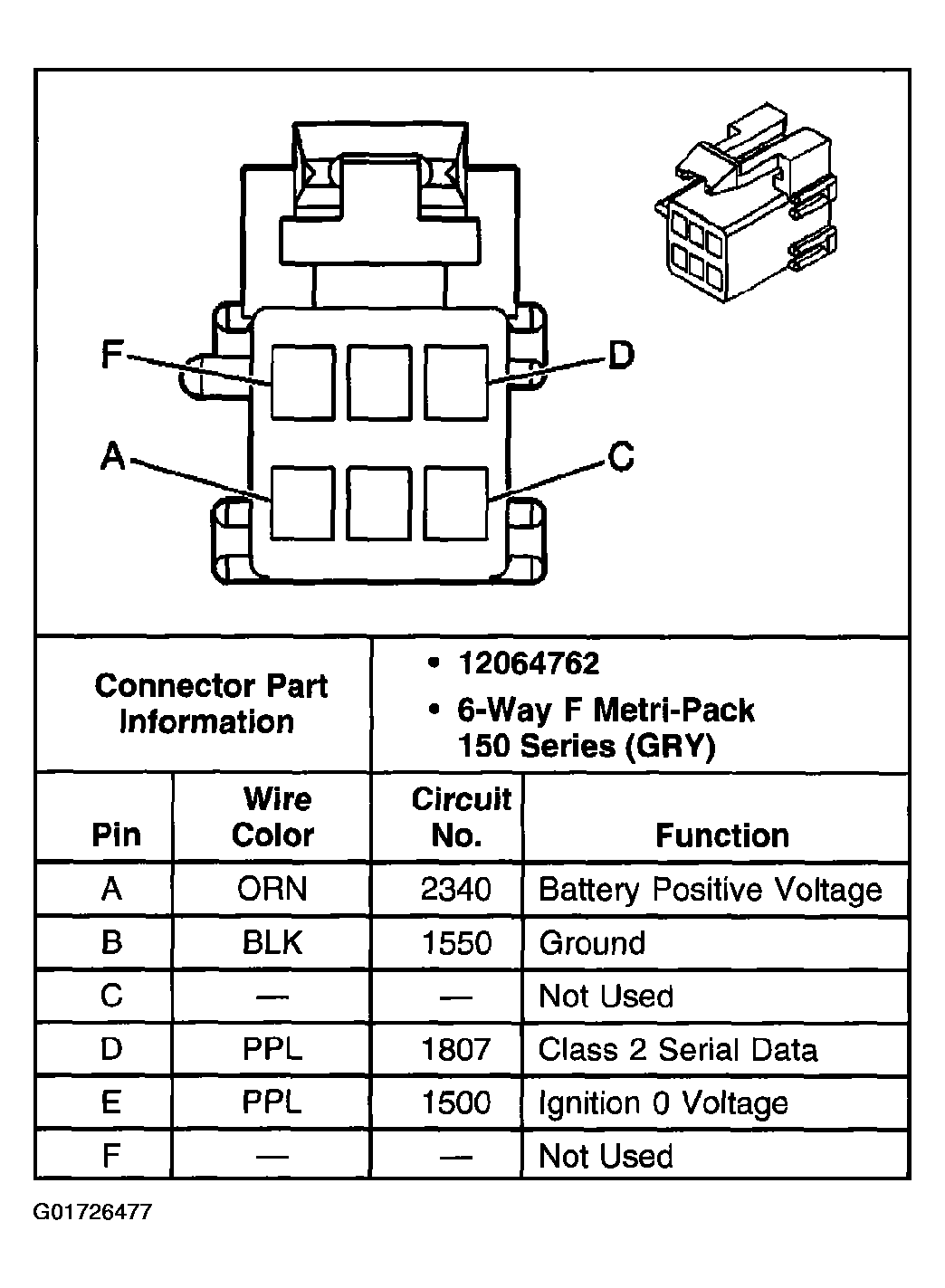

Fig 1: Theft Deterrent Control Module Connector End View

G01726477

Courtesy of GENERAL MOTORS CORP.
