Memory Seat and Mirror Module C2 (A43) Connector End View
Memory Seat and Mirror Module C2 (A43) Connector End View

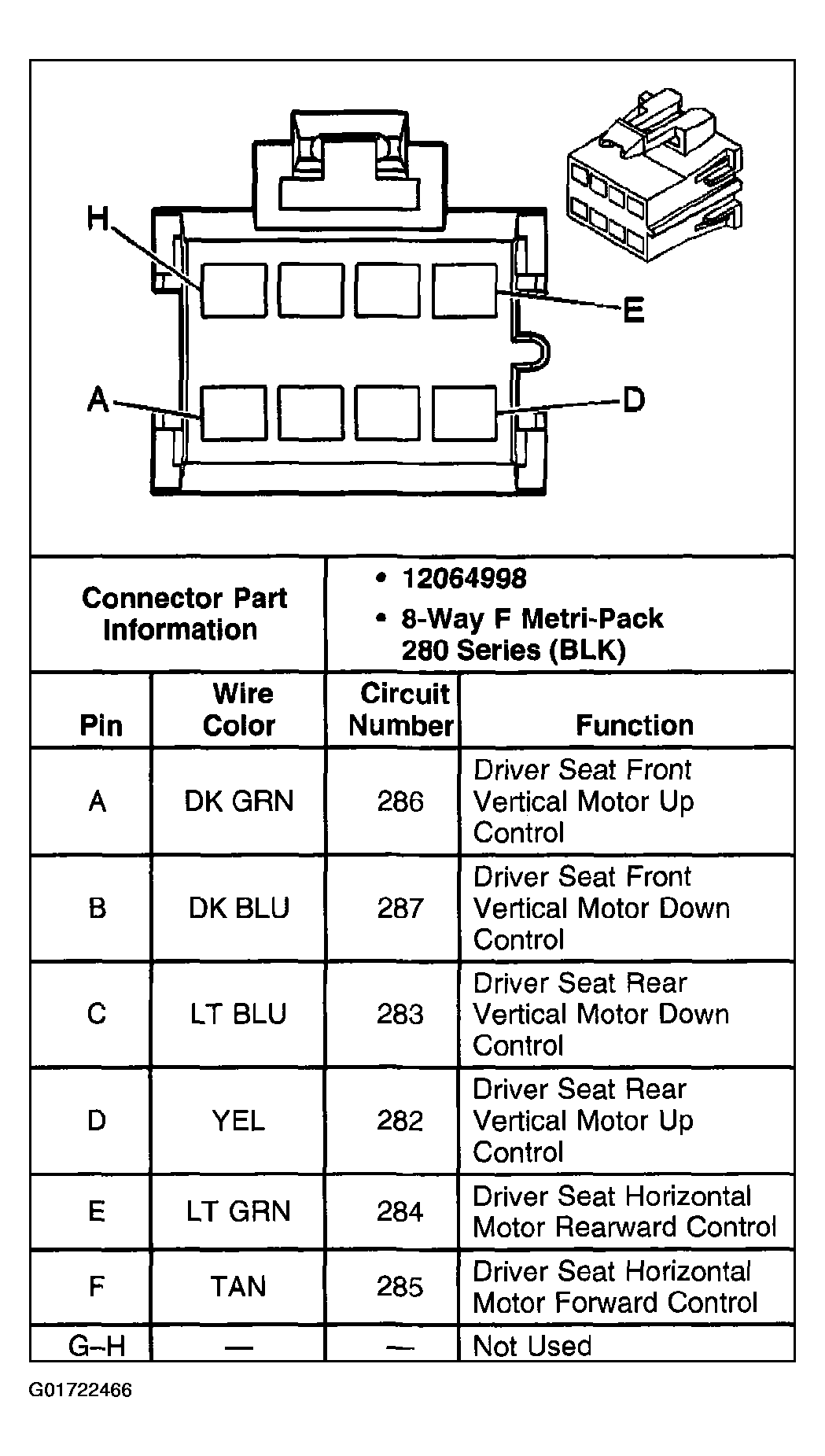

Fig 1: Memory Seat and Mirror Module C2 (A43) Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
